4.

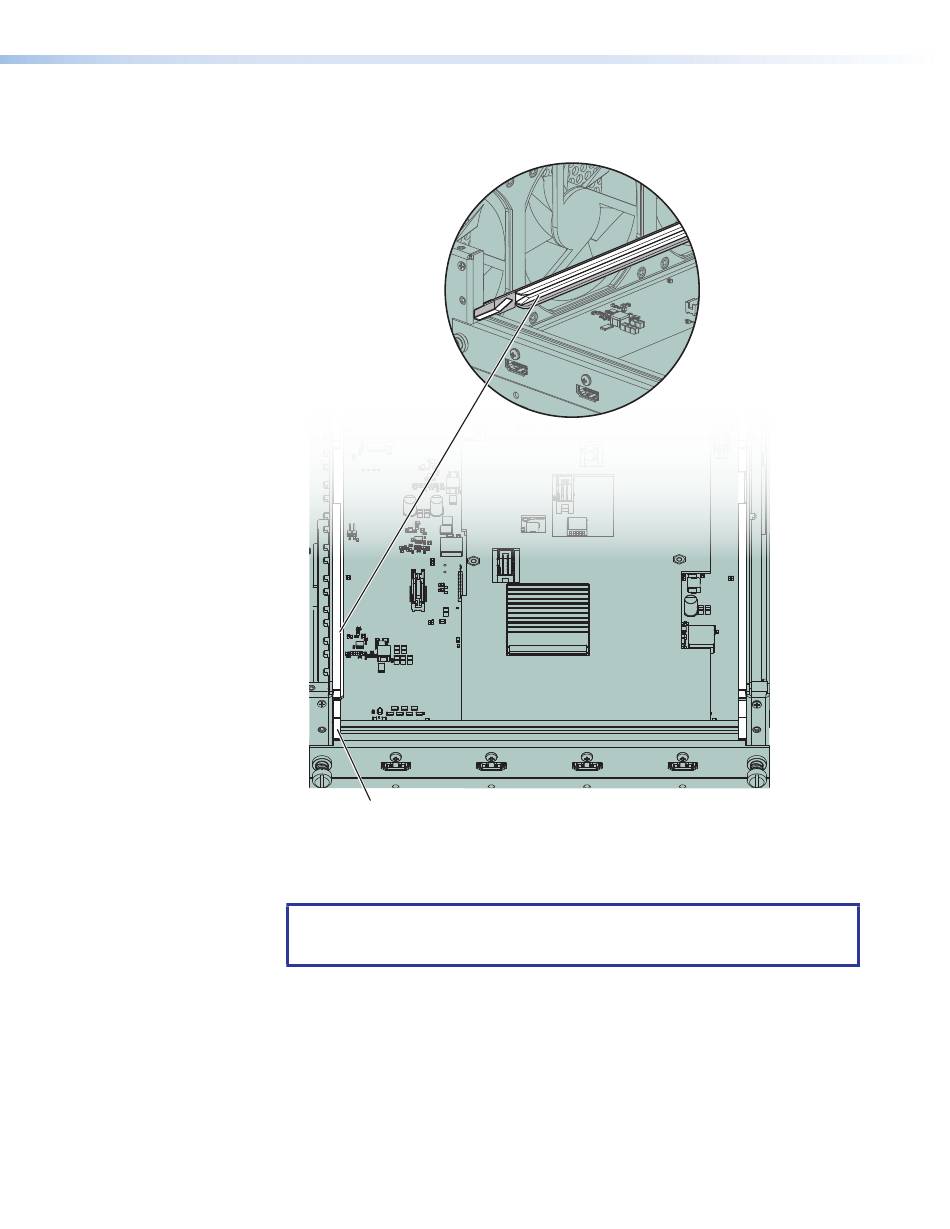

Inside the card slot are guides on both sides to ensure the replacement card is
aligned correctly.
Slide the card in
between the side guides.
Guide
Figure 66.
Input or Output Card Guides
Slide the new card into the slot with its side edges in the card guides. Press the card
firmly into place, so that its outside edge is flush with the rear panel of the chassis.
NOTE: The card is not completely in place until you hear or feel it snap into the
connector at the end of the card. If you do not feel it snap into position, press on
it more firmly until you do.
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
74
