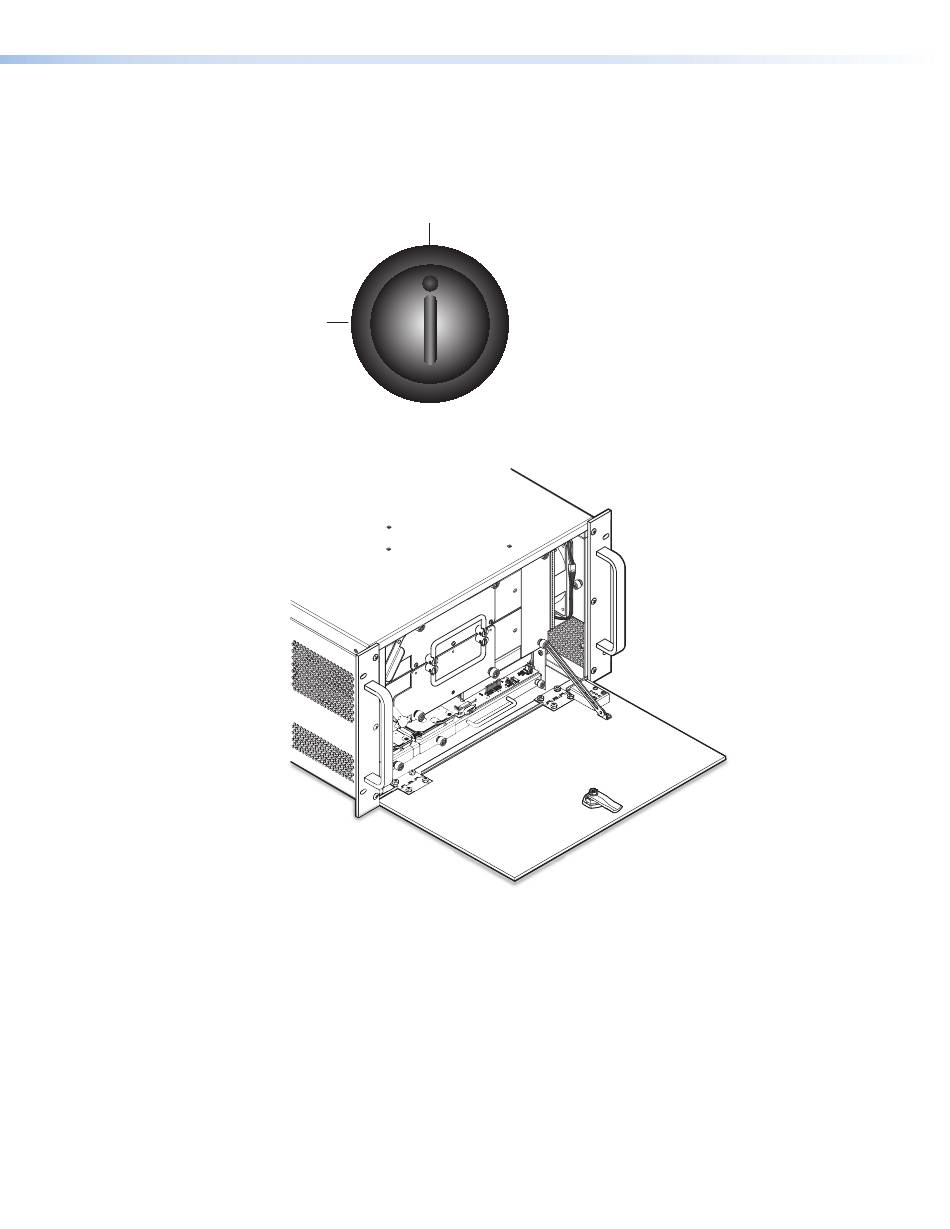

Accessing the Front Panel
To access the Quantum Ultra front panel, open the front panel door as follows:
1.
Insert a coin, such as a penny, in the slot on the front panel lock and rotate it one
quarter turn counterclockwise, until the dot above the slot faces
OPEN
OPEN
Figure 63.
2.
Pull the front door all the way down.
Figure 64.
3.
When finished with maintenance tasks, lift up the front panel door until it is in place.
4.
Holding the door closed, use a coin to rotate the lock clockwise until it is in a vertical
position.
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
LOCK
LOCK
Front Panel Door Lock
Front Panel Door Open
.
Open
71
