User Manual EtherNet/IP / CAN - Converter
Document code: MN67419_ENG
Revision 1.000 Page 11 of 34
Page 11 of 34
Industrial Electronic Devices
ETHERNET:
The connection of Ethernet in the HD67419 device must be made with at least a Category 5E cable. The maximum length of the cable should
not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an
Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
The connection of Ethernet in the HD67419-E4x-xx device must be made with RJ45 connector.

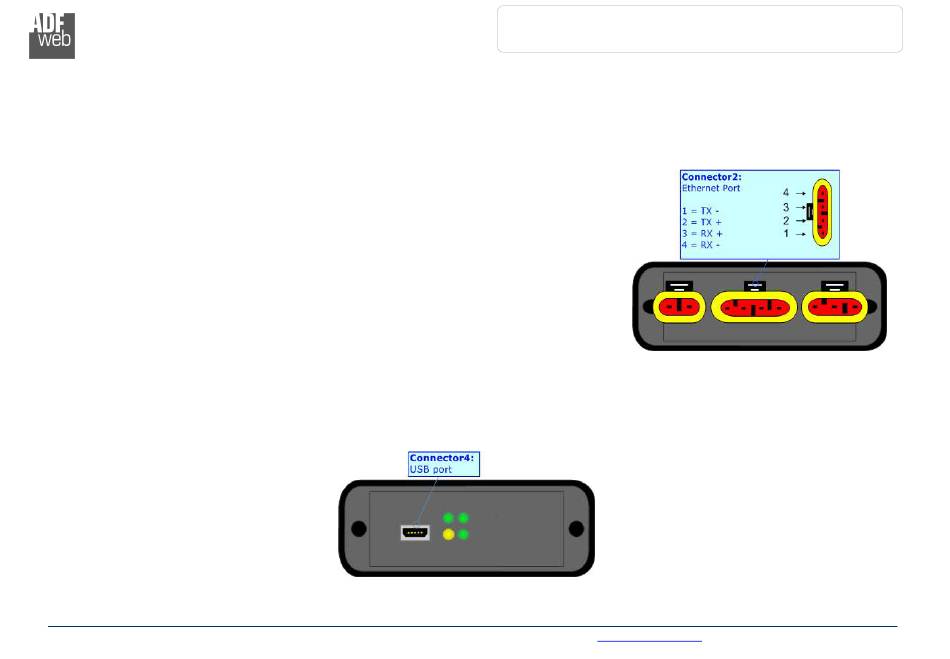

The connection of the Ethernet in the HD67419-E7x-xx device must be made with a AMP
SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of
the page.
USB:
The USB port is used to start the converter in Boot Mode. It is necessary to use a Micro USB type B cable.
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
