User Manual IO-Link Slave / DeviceNet Master
Document code: MN67969_ENG
Revision 1.000
Page 13 of 29
Industrial Electronic Devices
ETHERNET:
The Ethernet port is used for programming the device.

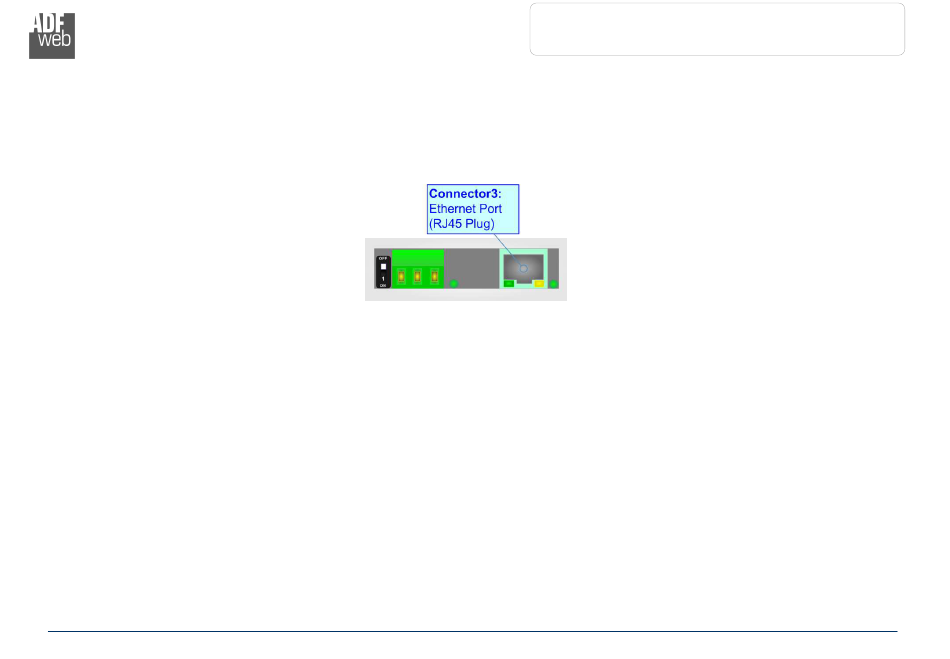

The Ethernet connection must be made using Connector3 of HD67969-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.
