Industrial Electronic Devices
User Manual
Revision 1.000
English

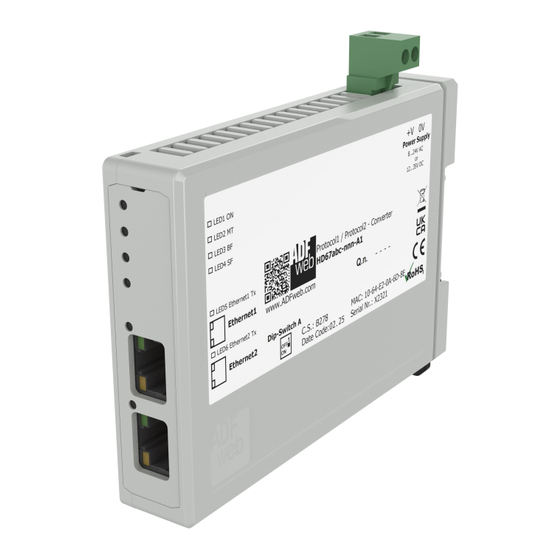

J1939 / SNMP - Converter
(Order Code: HD67162-A1, HD67162-B2)
for Website information:
www.adfweb.com?Product=HD67162
for Price information:
www.adfweb.com?Price=HD67162-A1
www.adfweb.com?Price=HD67162-B2
Benefits and Main Features:
Very easy to configure
Electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual J1939 / SNMP
Document code: MN67162_ENG
For others SNMP Agent products, see also the following links:
Converter SNMP to
www.adfweb.com?Product=HD67B23
www.adfweb.com?Product=HD67B48
www.adfweb.com?Product=HD67E25
www.adfweb.com?Product=HD67C79
www.adfweb.com?Product=HD67D41
www.adfweb.com?Product=HD67040
www.adfweb.com?Product=HD67092
www.adfweb.com?Product=HD67155
www.adfweb.com?Product=HD67156
www.adfweb.com?Product=HD67158
www.adfweb.com?Product=HD67159
www.adfweb.com?Product=HD67160
www.adfweb.com?Product=HD67161
www.adfweb.com?Product=HD67163
www.adfweb.com?Product=HD67164
www.adfweb.com?Product=HD67165
www.adfweb.com?Product=HD67166
www.adfweb.com?Product=HD67167
www.adfweb.com?Product=HD67168
www.adfweb.com?Product=HD67169
www.adfweb.com?Product=HD67613
www.adfweb.com?Product=HD67693
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67726
www.adfweb.com?Product=HD67754
www.adfweb.com?Product=HD67779
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67850
www.adfweb.com?Product=HD67878
www.adfweb.com?Product=HD67954
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Pagina 1 di 33
(OPC UA Client)
(OPC UA Server)
(EtherCAT)
(EnOcean)
(LoRaWAN)
(DMX)
(M-Bus Wireless)
(CAN)
(CANopen)
(EtherNet/IP)
(EtherNet/IP Master)
(DeviceNet Master)
(DeviceNet Slave)
(M-Bus Master)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFIBUS Master)
(PROFIBUS Slave)
(PROFINET)
(BACnet Slave)
(BACnet Master)
(BACnet Master)
(IEC 61850 Server)
(IEC 61850 Client)
(KNX)
(DALI)
(IO-Link Master)
(MQTT)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67162-A1
Summary of Contents for ADF Web HD67162-A1
- Page 1 Industrial Electronic Devices User Manual Revision 1.000 English For others SNMP Agent products, see also the following links: J1939 / SNMP - Converter Converter SNMP to (Order Code: HD67162-A1, HD67162-B2) www.adfweb.com?Product=HD67B23 (OPC UA Client) www.adfweb.com?Product=HD67B48 (OPC UA Server) www.adfweb.com?Product=HD67E25 (EtherCAT) for Website information: www.adfweb.com?Product=HD67C79...
-
Page 2: Updated Documentation
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 2 di 33 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 3 di 33 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 4 di 33 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 5 di 33 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67162-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 6 di 33 Industrial Electronic Devices Figure 1b: Connection scheme for HD67162-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 7 Pagina 7 di 33 Industrial Electronic Devices CHARACTERISTICS: The HD67162-A1 and HD67162-B2 is a J1939 / SNMP - Converter. It has the following characteristics: Up to 1024 bytes in reading and 1024 bytes in writing; Triple isolation between J1939 - Power Supply, J1939 - Ethernet, Power Supply - Ethernet.
-
Page 8: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67162-A1 HD67162-B2 Caution: Not reverse the polarity power HD67162-A1 HD67162-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com... -
Page 9: Function Modes
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 9 di 33 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... - Page 10 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 10 di 33 Industrial Electronic Devices LEDS: The devices has got four (five for HD67515-B2) LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
- Page 11 SNMP: The SNMP connection must be made using Connector5 of HD67162-A1/B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/other is recommended the use of a cross cable.
- Page 12 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 12 di 33 Industrial Electronic Devices CAN: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position. Cable characteristics: DC parameter: Impedance...
- Page 13 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 13 di 33 Industrial Electronic Devices USE OF COMPOSITOR SW67162: To configure the Converter, use the available software that runs with Windows called SW67162. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 14: New Configuration / Open Configuration
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 14 di 33 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “J1939 / SNMP - Converter”... -
Page 15: Software Options
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 15 di 33 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 16: Set Communication
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 16 di 33 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, SNMP and J1939. By Pressing the “Set Communication” button from the main window for SW67162 (Fig. 2) the window “Set Communication”... - Page 17 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 17 di 33 Industrial Electronic Devices The means of the fields for “J1939” are: In the field “Baudrate” the data rate of J1939 is defined; In the field “TimeOut Data”...
-
Page 18: Receive Frames
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 18 di 33 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67162 (Fig. 2) the “Receive J1939 Frames” window appears (Fig. The COB inserted in this table contains the Output data of SNMP. -
Page 19: Send Frames
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 19 di 33 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67162 (Fig. 2) the “Send J1939 frames” window appears (Fig. 5). The COB inserted in this table contains the Input data of SNMP. -
Page 20: Set Snmp Access
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 20 di 33 Industrial Electronic Devices SET SNMP ACCESS: By pressing the “Set SNMP Access” button from the main window for SW67162 (Fig. 2) the “Set SNMP Trap Access” window appears (Fig. 6). - Page 21 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 21 di 33 Industrial Electronic Devices The data of the columns in the “SNMP Write” have the following meanings: field “Enable” checked, the SNMP OID is enabled; field “Community Name”...
-
Page 22: Update Device
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 22 di 33 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 23 A1/B2 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67162-A1/B2 device. Warning: If Fig. 8 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
-
Page 24: Snmp Communication
Reading J1939 data from SNMP: In order to read the data from the HD67162-A1/B2, it is necessary to use the GET command. Each OID defined in the section “Set SNMP Access -> SNMP Read” will be placed in the MIB tree of the converter. - Page 25 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 25 di 33 Industrial Electronic Devices Each SNMP variable created will have its own OID and it will be created following this rule: OID 1 (first row of “Set SNMP Access -> SNMP Read” table): .1.3.6.1.4.1.49314.1.1.1.4.9.1 OID 2 (second row of “Set SNMP Access ->...
- Page 26 Writing J1939 data from SNMP: In order to write the data from the HD67162-A1/B2, it is necessary to use the SET command. Each OID defined in the section “Set SNMP Access -> SNMP Write” will be placed in the MIB tree of the converter.
- Page 27 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 27 di 33 Industrial Electronic Devices Each SNMP variable created will have its own OID and it will be created following this rule: OID 1 (first row of “Set SNMP Access -> SNMP Write” table): .1.3.6.1.4.1.49314.1.1.1.5.9.1 OID 2 (second row of “Set SNMP Access ->...
- Page 28 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 28 di 33 Industrial Electronic Devices TRAP messages from SNMP: All the OIDs defined in the “Set SNMP Access -> SNMP Read” table can be sent as TRAP messages too. The TRAP messages are contained in the MIB tree and they have these OIDs: TRAP 1 (first row of “Set SNMP Access ->...
-
Page 29: Mechanical Dimensions
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 29 di 33 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9a: Mechanical dimensions scheme for HD67162-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 30 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 30 di 33 Industrial Electronic Devices Figure 9b: Mechanical dimensions scheme for HD67162-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 31: Ordering Informations
B: 4M, 35mm DIN Rail mounting Device Family HD67162: J1939 / SNMP - Converter Order Code: HD67162-A1 J1939 / SNMP – Converter ( Housing type: A, Terminal Blocks Connectors ) Order Code: HD67162-B2 J1939 / SNMP – Converter ( Housing type: B, Terminal Blocks Connectors ) - Page 32 User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 32 di 33 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
-
Page 33: Warranties And Technical Support
User Manual J1939 / SNMP Document code: MN67162_ENG Revision 1.000 Pagina 33 di 33 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
