SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, CAN and EtherNet/IP.
By Pressing the "Set Communication" button from the main window of SW67419 (Fig. 2) the window
"Set Communication" appears (Fig. 3).
The meaning of the fields of "EtherNet/IP" are:
In the field "IP ADDRESS" the IP address to assign to the converter is defined;
In the field "SUBNET Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the number of port used for EtherNet/IP is defined (fixed to '44818');
In the field "Number Byte
is defined (it is possible to use up to 496 byte);
In the field "Number Byte
Master is defined (it is possible to use up to 496 byte).
The means of the fields for the "CAN" section are:
In the field "Baudrate" the data rate for the CAN is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
IN" the number of byte from the Ethernet/IP Master to the converter
OUT" the number of byte from the converter to the Ethernet/IP
User Manual EtherNet/IP / CAN - Converter
Document code: MN67419_ENG Revision 1.000 Page 16 of 34
Page 16 of 34

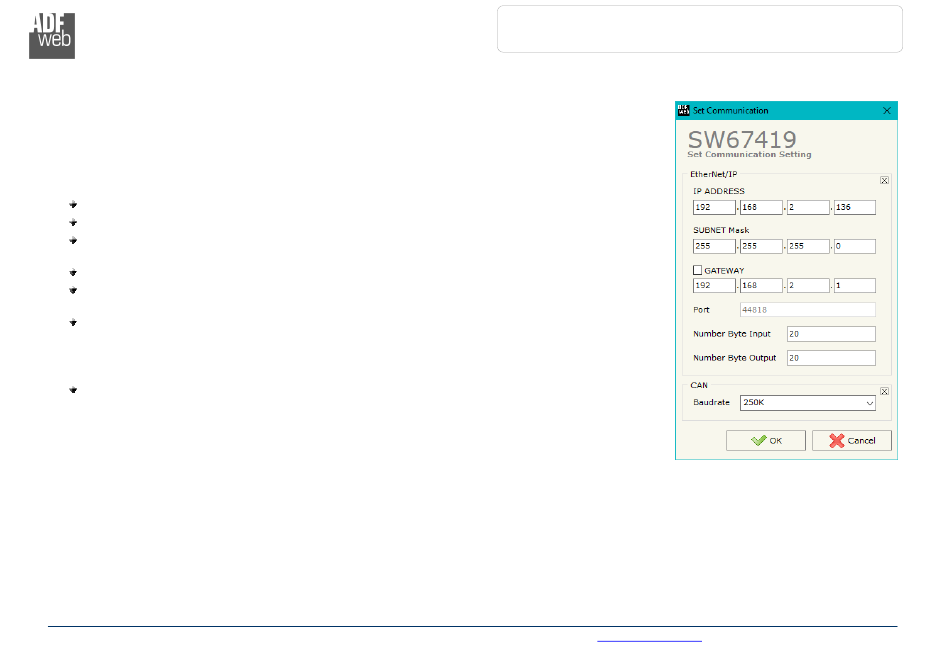

Figure 3: "Set Communication"
