Industrial Electronic Devices

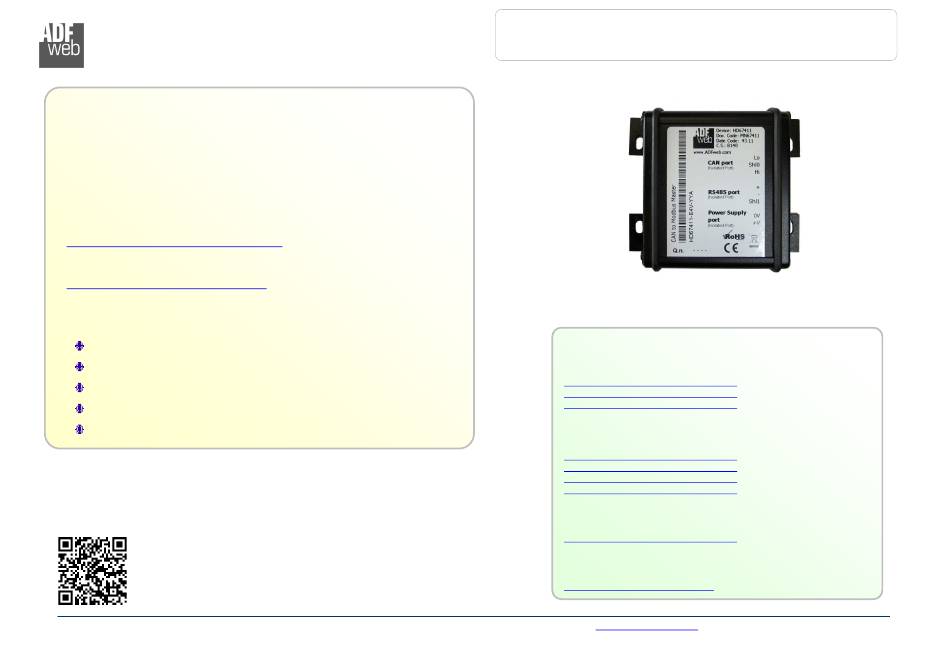

User Manual

Revision 1.000

English

NMEA 2000 / Modbus Slave – Converter

(Order Code: HD67452)

For Website information:

www.adfweb.com?Product=HD67452

For Price information:

www.adfweb.com?Price=HD67452

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual NMEA 2000 / Modbus Slave - Converter

Document code: MN67452_ENG

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67452 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67452

Page 1 Revision 1.000 Page 1 of 33 Industrial Electronic Devices User Manual Revision 1.000 English NMEA 2000 / Modbus Slave – Converter (Order Code: HD67452) For Website information: www.adfweb.com?Product=HD67452 For Price information: www.adfweb.com?Price=HD67452 Benefits and Main Features: For other Gateways / Bridges:...
Page 2: Table Of Contents
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 2 of 33 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated...
Page 3: Security Alert
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 3 of 33 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 4 of 33 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 5 of 33 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67452-E4x-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 6 of 33 Industrial Electronic Devices Figure 1b: Connection scheme for HD67452-E7x-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD67452” series are rugged devices used to interface NMEA 2000 devices with Modbus Master. With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67452-Exx-xxx Consumption at 24V DC: Device W/VA HD67452-Exx-xxx Caution: Not reverse the polarity power HD67452-E4x-xxx HD67452-E7x-xxx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 9 of 33 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10: Rs485
Industrial Electronic Devices RS485: The connection of the RS485 in the HD67452-E4x-xxx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the RS485 in the HD67452-E7x-xxx device must be made with a AMP SuperSeal 1.5 Male connector.
Page 11: Can
Page 11 of 33 Industrial Electronic Devices CAN: The connection of the NMEA 2000 in the HD67452-E4x-xxx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
Page 12: Usb
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 12 of 33 Industrial Electronic Devices USB: The USB port is used to start the converter in Boot Mode and to program the converter. It is necessary to use a Micro USB type B cable. ADFweb.com Srl –...
Page 13: Use Of Compositor Sw67452
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 13 of 33 Industrial Electronic Devices USE OF COMPOSITOR SW67452: To configure the Converter, use the available software that runs with Windows called SW67452. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 14: New Project / Open Project
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 14 of 33 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “NMEA 2000 / Modbus Slave - Converter”...
Page 15: Software Options
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 15 of 33 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 16 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 16 of 33 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 17: Set Communication
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 17 of 33 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two buses, NMEA 2000 and Modbus. By pressing the “Set Communication”...
Page 18: Receive Nmea 2000
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 18 of 33 Industrial Electronic Devices RECEIVE NMEA 2000: By pressing the “Receive NMEA 2000” button from the main window of SW67452 (Fig. 2) the window “Receive NMEA 2000 Frames” appears (Fig.
Page 19 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 19 of 33 Industrial Electronic Devices In the field “Time(ms)” the delay between two NMEA 2000 requests is defined; In the field “Mnemonic” the description for the frame is defined. ADFweb.com Srl –...
Page 20: Define Nmea 2000
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 20 of 33 Industrial Electronic Devices DEFINE NMEA 2000: By pressing the “Define NMEA 2000” button near “Receive NMEA 2000” from the main window for SW67452 (Fig. 2) the window “Define Modbus Registers for Receive NMEA 2000 Frames”...
Page 21: Transmit Nmea 2000
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 21 of 33 Industrial Electronic Devices TRANSMIT NMEA 2000: By pressing the “Transmit NMEA 2000” button from the main window of SW67452 (Fig. 2) the window “Transmit NMEA 2000 Frames” appears (Fig.
Page 22 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 22 of 33 Industrial Electronic Devices If the field “On Timer” is checked, the NMEA 2000 frame is sent cyclically; In the field “Time (ms)” the delay (in milliseconds) with which sending the NMEA 2000 message is defined; In the field “Mnemonic”...
Page 23: Define Nmea 2000
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 23 of 33 Industrial Electronic Devices DEFINE NMEA 2000: By pressing the “Define NMEA 2000” button near “Transmit NMEA 2000” from the main window for SW67452 (Fig. 2) the window “Define Modbus Registers for Transmit NMEA 2000 Frames”...
Page 24: Update Device Usb
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 24 of 33 Industrial Electronic Devices UPDATE DEVICE USB: By pressing the “Update Device USB” button it is possible to load the created Configuration into the device, and also the Firmware if is necessary, using the USB port.
Page 25 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67452 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67452 device.
Page 26: Mechanical Dimensions
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 26 of 33 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 27 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 27 of 33 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 28 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 28 of 33 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 29 User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 29 of 33 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 30 Page 30 of 33 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67452 – E y z – s d f Fixing lugs A: Type 1 B: Type 2 C: Type 3...
Page 31: Order Code
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 31 of 33 Industrial Electronic Devices ACCESSORIES: Order Code: AC34001 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 Rail DIN - Power Supply 110V AC 50/60Hz –...
Page 32: Disclaimer
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 32 of 33 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 33: Warranties And Technical Support
User Manual NMEA 2000 / Modbus Slave - Converter Document code: MN67452_ENG Revision 1.000 Page 33 of 33 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
