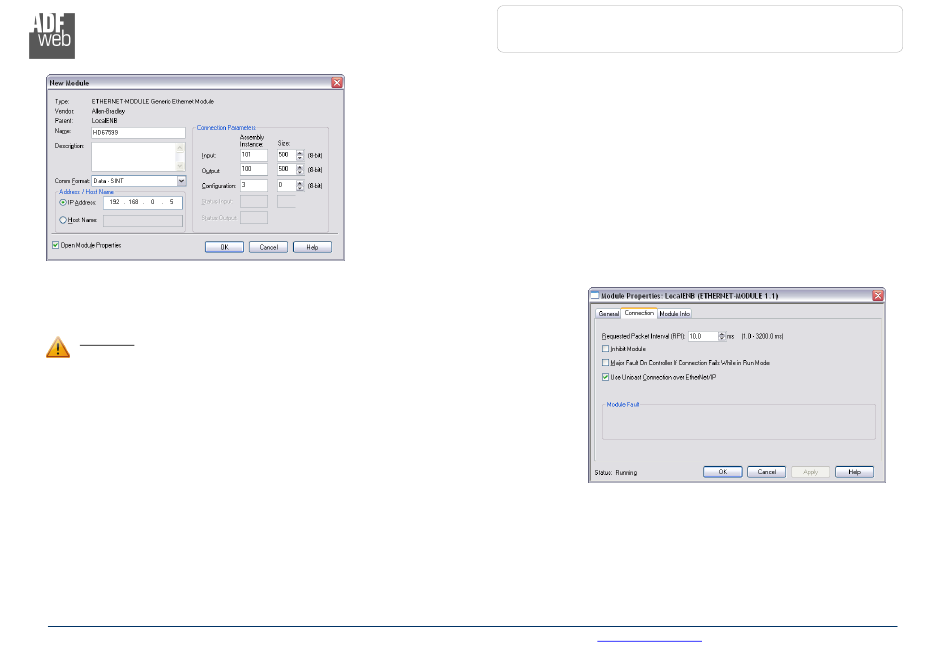

2) Edit the settings of the new Generic Ethernet Module. As shown in the screen shot
below, the module was named "HD67419" and the IP-address assigned is 192.168.0.5.
For the Comm Format "Data – SINT" shall be selected as the data type.
The HD67419 can uses up to 496 bytes for input assembly instance 101 and 496 bytes
for output assembly instance 100.
RSLogix 5000 requires a configuration assembly instance. Both modules do not provide a
configuration assembly instance. Therefore it is allowed to select an instance of 3 and to
set the value to zero.
3) The setting of 10msec for the "Requested Packet Interval (RPI)" is adequate but it
is possible to change this value as required. A lower value of 2ms shall not be selected.
Warning:
The field "Use Unicast Connection over EtherNet/IP" must be checked.
