Industrial Electronic Devices
CAN:

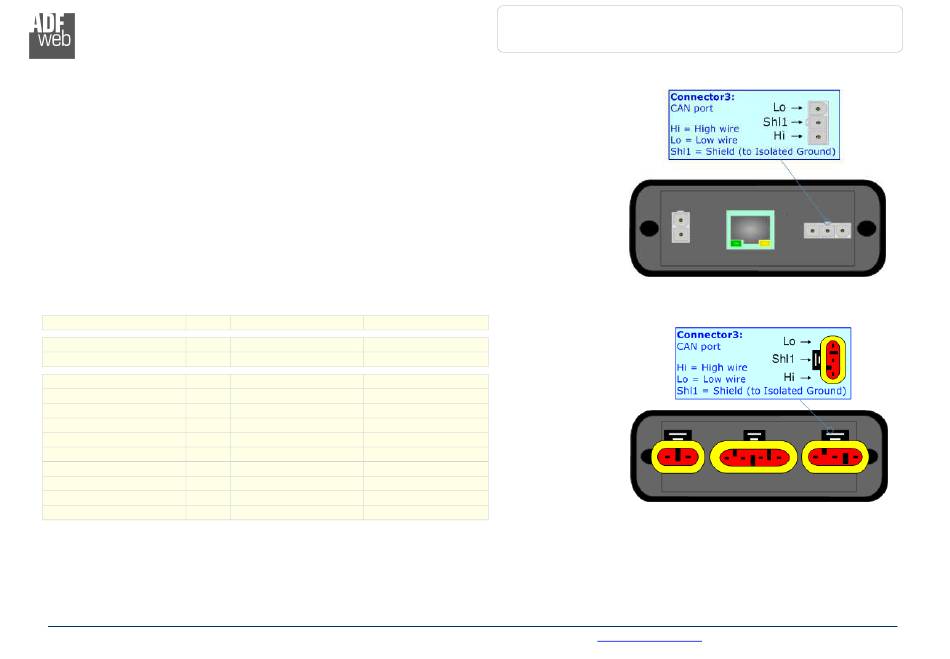

The connection of CAN in the HD67419-E4x-xx device must be made with a 3way MiniFit
Female connector. The pinout of Male Mini-Fit connector of the board is at right side of the
page.
The connection of CAN in the HD67419-E7x-xx device must be made with a AMP SuperSeal 1.5
Male connector. The pinout of Female connector of the board is at right side of the page.
The termination of CAN line, with a 120Ω resistor, in the HD67419-Exx-xx is made internally of
the device; when the order is performed. If the device have the CAN terminated the code is the
follow: HD67419-Exx-Yx; otherwise is this other: HD67419-Exx-Nx.
Cable characteristics:
DC parameter:
AC parameters:
Length
ADFweb.com Srl – IT31010 – Mareno – Treviso
Impedance
70
Ohm/m
Impedance
120
Ohm/m
Delay
5 ns/m
Baud Rate [bps]
Length MAX [m]
10 K
5000
20 K
2500
50 K
1000
100 K
650
125 K
500
250 K
250
500 K
100
800 K
50
1000 K
25
User Manual EtherNet/IP / CAN - Converter
Document code: MN67419_ENG
Revision 1.000 Page 10 of 34
Page 10 of 34
