Industrial Electronic Devices
User Manual
Revision 1.000
English
PROFINET / Serial - Converter
(Order Code: HD674-A022)
For Website information:
www.adfweb.com?Product=HD674-A022
For Price information:
www.adfweb.com?Price=HD674-A022
Benefits and Main Features:
Wide supply input range
Electrical isolation
Industrial temperature range: -40°C / 105°C (-40°F / 221°F)
User Manual
ADFweb.com S.r.l.
User Manual PROFINET / Serial
Document code: MN674-A022_ENG
For other PROFINET products see also the following link:
Converter PROFINET to
www.adfweb.com?Product=HD67078
www.adfweb.com?Product=HD67090
www.adfweb.com?Product=HD67178
www.adfweb.com?Product=HD67600
www.adfweb.com?Product=HD67601
www.adfweb.com?Product=HD67602
www.adfweb.com?Product=HD67603
www.adfweb.com?Product=HD67604
www.adfweb.com?Product=HD67605
www.adfweb.com?Product=HD67606
www.adfweb.com?Product=HD67607
www.adfweb.com?Product=HD67608
www.adfweb.com?Product=HD67609
www.adfweb.com?Product=HD67610
www.adfweb.com?Product=HD67612
www.adfweb.com?Product=HD67613
www.adfweb.com?Product=HD67614
www.adfweb.com?Product=HD67615
www.adfweb.com?Product=HD67633
www.adfweb.com?Product=HD67659
www.adfweb.com?Product=HD67660
www.adfweb.com?Product=HD67661
www.adfweb.com?Product=HD67679
www.adfweb.com?Product=HD67719
www.adfweb.com?Product=HD67752
www.adfweb.com?Product=HD67778
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67848
www.adfweb.com?Product=HD67876
www.adfweb.com?Product=HD67912
www.adfweb.com?Product=HD67952
www.adfweb.com?Product=HD67984
www.adfweb.com?Product=HD67B22
www.adfweb.com?Product=HD67B46
www.adfweb.com?Product=HD67C77
www.adfweb.com?Product=HD67D33
www.adfweb.com?Product=HD67E23
www.adfweb.com?Product=HD67E73
www.adfweb.com?Product=HD67F33
Revision 1.000
Pagina 1 di 34
(M-bus)
(M-bus Wireless)
(SNMP Manager)
(NMEA 2000)
(Serial)
(Modbus Master)
(Modbus Slave)
(PROFIBUS Master)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(Modbus TCP Slave)
(SNMP Agent)
(DMX)
(NMEA 0183)
(S7comm)
(EtherNet)
(EtherNet/IP Slave)
(EtherNet/IP Master)
(BACnet Slave)
(BACnet Master)
(IEC 61850 Server)
(IEC 61850 Client)
(KNX)
(DALI)
(IO-Link Master)
(HART)
(MQTT)
(IO-Link Slave)
(OPC UA Client)
(OPC UA Server)
(EnOcean)
(LoRaWAN)
(EtherCAT Slave)
(EtherCAT Master)
(LoRaWAN Gateway)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD674-A022 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD674-A022

Summary of Contents for ADF Web HD674-A022

  • Page 1 English www.adfweb.com?Product=HD67078 (M-bus) www.adfweb.com?Product=HD67090 (M-bus Wireless) www.adfweb.com?Product=HD67178 (SNMP Manager) PROFINET / Serial - Converter www.adfweb.com?Product=HD67600 (NMEA 2000) www.adfweb.com?Product=HD67601 (Serial) (Order Code: HD674-A022) www.adfweb.com?Product=HD67602 (Modbus Master) www.adfweb.com?Product=HD67603 (Modbus Slave) For Website information: www.adfweb.com?Product=HD67604 (PROFIBUS Master) www.adfweb.com?Product=HD67605 (PROFIBUS Slave) www.adfweb.com?Product=HD674-A022 www.adfweb.com?Product=HD67606 (CAN) www.adfweb.com?Product=HD67607...

  • Page 2: Updated Documentation

    User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 2 di 34 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST...

  • Page 3: Security Alert

    User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 3 di 34 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.

  • Page 4: Example Of Connection

    User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 4 di 34 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l.

  • Page 5: Connection Scheme

    User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 5 di 34 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD674-A022-2-E4x ADFweb.com S.r.l.
  • Page 6 User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 6 di 34 Industrial Electronic Devices Figure 1b: Connection scheme for HD674-A022-2-E7x ADFweb.com S.r.l.
  • Page 7 User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 7 di 34 Industrial Electronic Devices Figure 1c: Connection scheme for HD674-A022-4-E4x ADFweb.com S.r.l.
  • Page 8 User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 8 di 34 Industrial Electronic Devices Figure 1d: Connection scheme for HD674-A022-4-E7x ADFweb.com S.r.l.
  • Page 9 Industrial Electronic Devices CHARACTERISTICS: The “HD674-A022” series are rugged devices used to interface Serial devices with PROFINET network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).

  • Page 10: Power Supply

    POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD674-A022-Exx-xx Consumption at 24V DC: Device W/VA HD674-A022-Exx-xx Caution: Not reverse the polarity power HD674-A022-x-E4x-xx HD674-A022-x-E7x-xx Note: It is possible to use also negative tensions.
  • Page 11 User Manual PROFINET / Serial Document code: MN674-A022_ENG Revision 1.000 Pagina 11 di Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...

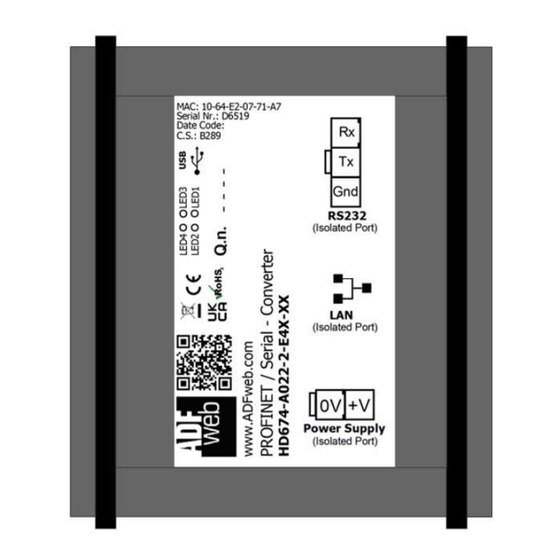

  • Page 12 Pagina 12 di Industrial Electronic Devices RS232: The connection of the RS232 in the HD674-A022-2-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
