Industrial Electronic Devices

User Manual

Revision 1.000

English

NMEA 2000 / EtherNet/IP –

Converter

(Order Code: HD67458)

for Website information:

www.adfweb.com?Product=HD67458

for Price information:

www.adfweb.com?Price=HD67458

Benefits and Main Features:

Very easy to configure

Isolation between two buses

Temperature range: -40°C / +105°C (-40°F / +221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual NMEA 2000 / EtherNet/IP - Converter

Document code: MN67458_ENG

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67458 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67458

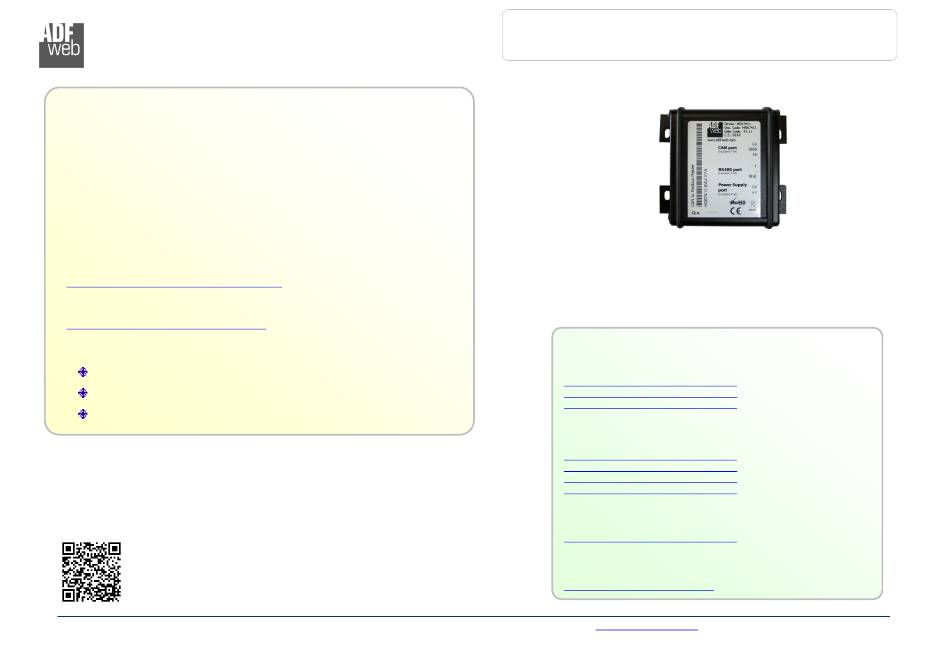

Page 1 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.000 English NMEA 2000 / EtherNet/IP – Converter (Order Code: HD67458) for Website information: www.adfweb.com?Product=HD67458 for Price information: www.adfweb.com?Price=HD67458 For other Gateways / Bridges: Benefits and Main Features: CAN from/to Modbus...
Page 2: Table Of Contents
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated...
Page 3: Security Alert
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 4 of 31 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67458-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 6 of 31 Industrial Electronic Devices Figure 1b: Connection scheme for HD67458-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD67458” series are rugged devices used to interface EtherNet/IP Master with a NMEA 2000 network. With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67458-Exx-xx Consumption at 24V DC: Device W/VA HD67458-Exx-xx Caution: Not reverse the polarity power HD67458-E4x-xx HD67458-E7x-xx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 9 of 31 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10 Industrial Electronic Devices NMEA 2000: The connection of the NMEA 2000 in the HD67458-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
Page 11: Ethernet/Ip
ETHERNET: The connection of EtherNet/IP in the HD67458 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
Page 12: Use Of Compositor Sw67458
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 12 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67458: To configure the Converter, use the available software that runs with Windows called SW67458. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13: New Project / Open Project
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 13 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “NMEA 2000 / EtherNet/IP - Converter”...
Page 14: Software Options
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 14 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 15 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 15 of 31 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 16: Set Communication
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 16 of 31 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, NMEA 2000 and EtherNet/IP. By Pressing the “Set Communication”...
Page 17: Receive Nmea 2000 Frames
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 17 of 31 Industrial Electronic Devices RECEIVE NMEA 2000 FRAMES: Figure 4: “Receive Frames” window The means of the fields are: In the field “PGN” the PGN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the PGN is an identifier); In the field “Source Address”...
Page 18: Send Nmea 2000 Frames
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 18 of 31 Industrial Electronic Devices TRANSMIT NMEA 2000 FRAMES Figure 5: “Send Frames” window The means of the fields are: In the field “Priority” the priority of the NMEA 2000 message is defined. In NMEA 2000 protocol, the priority is a number between 0 and 7.
Page 19: Update Device
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 19 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Connect the USB cable;...
Page 20 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67458. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67458 device.
Page 21: Plc Configuration
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 21 of 31 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”...
Page 22 2) Edit the settings of the new Generic Ethernet Module. As shown in the screen shot below, the module was named “HD67458” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data – SINT” shall be selected as the data type.
Page 23 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 23 of 31 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 24 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 24 of 31 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
Page 25: Mechanical Dimensions
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 25 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 26 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 26 of 31 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 27 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 27 of 31 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 28 User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 28 of 31 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 29: Order Code
Page 29 of 31 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67458 – E y z – s f Fixing lugs A: Type A B: Type B C: Type C...
Page 30: Disclaimer
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 31: Warranties And Technical Support
User Manual NMEA 2000 / EtherNet/IP - Converter Document code: MN67458_ENG Revision 1.000 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
