RECEIVE FRAMES:

By pressing the "Receive Frames" button from the main window for SW67419 (Fig. 2) the "Receive CAN Frames" window appears (Fig. 4).
The COB-IDs inserted in this table contain the output data of EtherNet/IP. These frames are accepted by the converter.

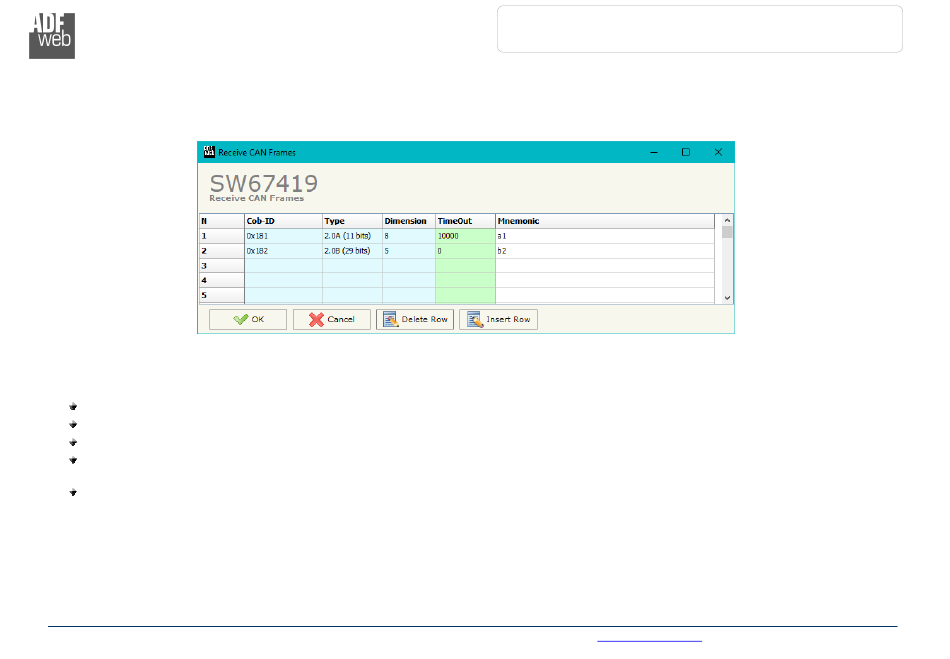

Figure 4: "Receive CAN Frames" window
The data of the columns have the following meanings:
In the field "Cob-ID" the COB-ID of the CAN frame is defined;
In the field "Type" the type of CAN message is defined (2.0A (11 bits) or 2.0B (29 bits));
In the field "Dimension" the number of data bytes of the message (from 1 to 8) is defined;
In the field "TimeOut" the time (in ms) of the timeout of the data is defined. If a CAN frame is not received in this time, all the data
of the CAN frame will be set to '0'. It is possible to disable this function by setting this field to '0';
In the field "Mnemonic" a brief description is defined.
