UPDATE DEVICE:

By pressing the "Update Device" button, it is possible to load the created Configuration into the
device; and also the Firmware, if necessary.
If you don't know the actual IP address of the device you have to use this procedure:
Connect the USB cable;
Connect the Ethernet cable;
Turn ON the converter;
Insert the IP "192.168.2.205";
Press the "Ping" button, "Device Found! must appear";
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK", the updating is done;
Remove the USB cable;
At this point the configuration/firmware on the device is correctly updated.
If you know the actual IP address of the device, you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the "Ping" button, must appear "Device Found!";
Press the "Next" button;
Select which operations you want to do;
Press the "Execute update
When all the operations are "OK" the device automatically goes at Normal Mode.
Note:
When you install a new version of the software, if it is the first time it is better
you do the update of the Firmware in the HD67419 device.
ADFweb.com Srl – IT31010 – Mareno – Treviso
firmware" button to start the upload;
firmware" button to start the upload;
User Manual EtherNet/IP / CAN - Converter
Document code: MN67419_ENG Revision 1.000 Page 21 of 34
Page 21 of 34

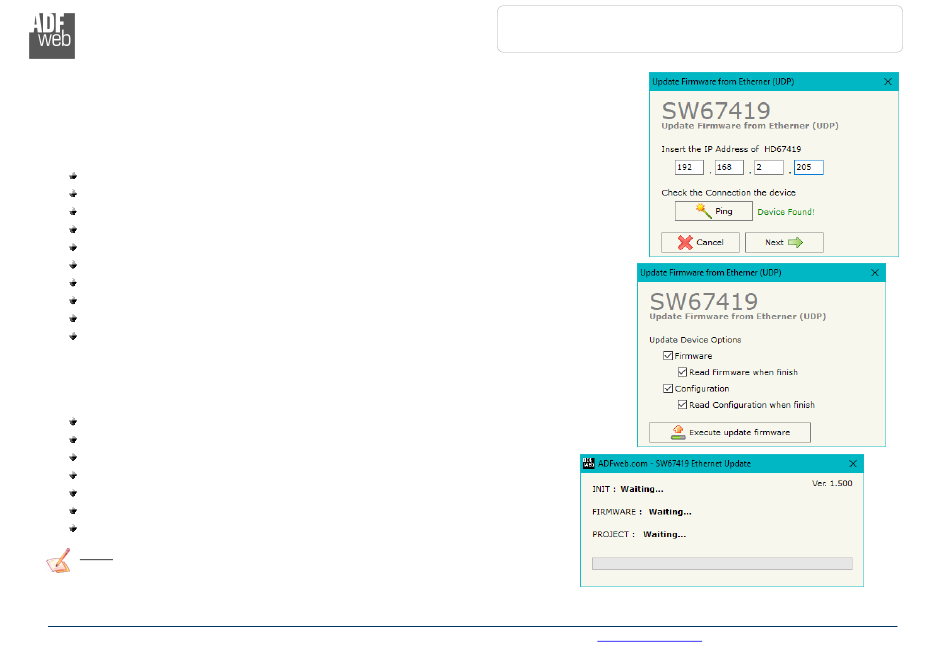

Figure 8: "Update Device" windows
