Industrial Electronic Devices

User Manual

Revision 1.000

English

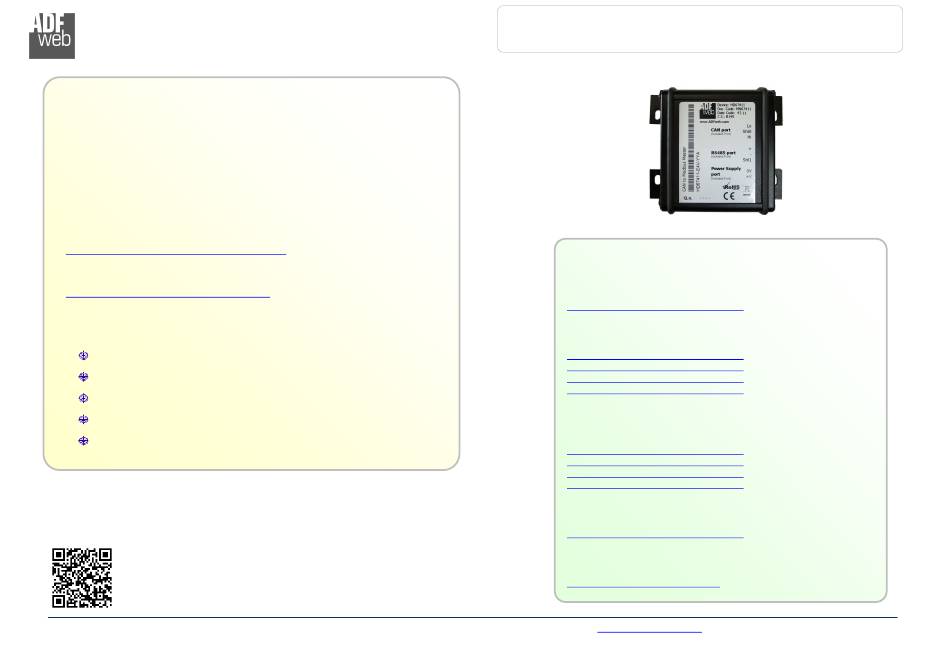

EtherNet/IP / CAN – Converter

(Order Code: HD67419)

For Website information:

www.adfweb.com?Product=HD67419

For Price information:

www.adfweb.com?Price=HD67419

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual EtherNet/IP / CAN - Converter

Document code: MN67419_ENG

Revision 1.000 Page 1 of 34

Page 1 of 34

For others Gateways / Bridges:

J1939 to Modbus

Need help?

Do you have a question about the HD67419 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67419

Page 1 Revision 1.000 Page 1 of 34 Page 1 of 34 Industrial Electronic Devices User Manual Revision 1.000 English EtherNet/IP / CAN – Converter (Order Code: HD67419) For Website information: www.adfweb.com?Product=HD67419 For others Gateways / Bridges: For Price information: J1939 to Modbus www.adfweb.com?Price=HD67419 See also the following links: www.adfweb.com?Product=HD67212...
Page 2: Table Of Contents
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 2 of 34 Page 2 of 34 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION...
Page 3: Security Alert
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 3 of 34 Page 3 of 34 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Examples Of Connection
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 4 of 34 Page 4 of 34 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 5 of 34 Page 5 of 34 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67419-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 6 of 34 Page 6 of 34 Industrial Electronic Devices Figure 1b Connection scheme for HD67419-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD67419” series are rugged devices used to interface CAN devices with EtherNet/IP network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67419-Exx-xx Consumption at 24V DC: Device W/VA HD67419-Exx-xx Caution: Not reverse the polarity power HD67419-E4x-xx HD67419-E7x-xx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 9 of 34 Page 9 of 34 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below.
Page 10 Female connector. The pinout of Male Mini-Fit connector of the board is at right side of the page. The connection of CAN in the HD67419-E7x-xx device must be made with a AMP SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the page.
Page 11: Ethernet
ETHERNET: The connection of Ethernet in the HD67419 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
Page 12: Use Of Compositor Sw67419
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 12 of 34 Page 12 of 34 Industrial Electronic Devices USE OF COMPOSITOR SW67419: To configure the Converter, use the available software that runs with Windows called SW67419. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 13 of 34 Page 13 of 34 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “EtherNet/IP / CAN - Converter”...
Page 14: Software Options
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 14 of 34 Page 14 of 34 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 15 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 15 of 34 Page 15 of 34 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 16: Set Communication
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 16 of 34 Page 16 of 34 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, CAN and EtherNet/IP. By Pressing the “Set Communication”...
Page 17: Receive Frames
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 17 of 34 Page 17 of 34 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67419 (Fig. 2) the “Receive CAN Frames” window appears (Fig. 4). The COB-IDs inserted in this table contain the output data of EtherNet/IP.
Page 18: Info Receive
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 18 of 34 Page 18 of 34 Industrial Electronic Devices INFO RECEIVE: By pressing the “Info Receive” button from the main window for SW67419 (Fig. 2) the “Receive CAN Frames Info” window appears (Fig. In the column “COB ID”...
Page 19: Send Frames
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 19 of 34 Page 19 of 34 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67419 (Fig. 2) the “Send CAN frames” window appears (Fig. 6). The COB-IDs inserted in this table contain the input data of EtherNet/IP.
Page 20: Info Send
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 20 of 34 Page 20 of 34 Industrial Electronic Devices INFO SEND: By pressing the “Info Send” button from the main window for SW67419 (Fig. 2) the “Send CAN Frames Info” window appears (Fig. 7): In the column “COB ID”...
Page 21: Update Device
Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67419 device. Figure 8: “Update Device” windows ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com...
Page 22 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67419 device. Warning: If Fig. 9 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
Page 23: Mechanical Dimensions
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 23 of 34 Page 23 of 34 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 24 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 24 of 34 Page 24 of 34 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 25 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 25 of 34 Page 25 of 34 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 26 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 26 of 34 Page 26 of 34 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 27 Page 27 of 34 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67419 – E y z – s f Fixing lugs A: Type A B: Type B C: Type C...
Page 28: Order Code
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 28 of 34 Page 28 of 34 Industrial Electronic Devices ACCESSORIES: Order Code: AC34001 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 Rail DIN - Power Supply 110V AC 50/60Hz –...
Page 29: Plc Configuration
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 29 of 34 Page 29 of 34 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”...
Page 30 “HD67419” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data – SINT” shall be selected as the data type. The HD67419 can uses up to 496 bytes for input assembly instance 101 and 496 bytes for output assembly instance 100.
Page 31 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 31 of 34 Page 31 of 34 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 32 User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 32 of 34 Page 32 of 34 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
Page 33: Disclaimer
User Manual EtherNet/IP / CAN - Converter Document code: MN67419_ENG Revision 1.000 Page 33 of 34 Page 33 of 34 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 34: Warranties And Technical Support
