ADF Web HD67412 User Manual

Can / modbus slave – converter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Industrial Electronic Devices

User Manual

Revision 2.101

English

CAN / Modbus Slave – Converter

(Order Code: HD67412)

For Website information:

www.adfweb.com?Product=HD67412

For Price information:

www.adfweb.com?Price=HD67412

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual CAN / Modbus Slave - Converter

Document code: MN67412_ENG

Revision 2.101

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67412 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67412

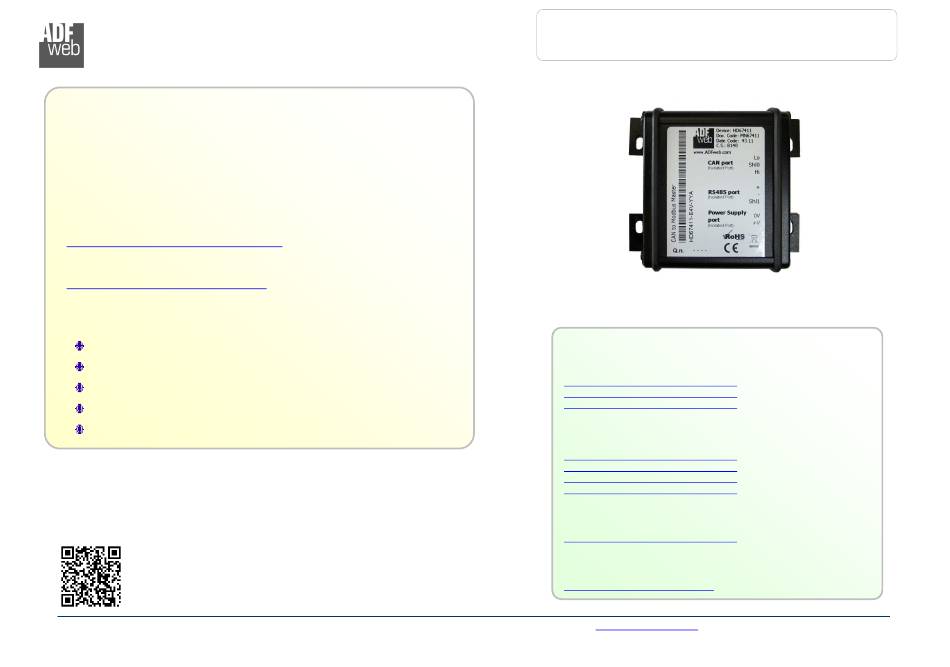

Page 1 Revision 2.101 Page 1 of 32 Industrial Electronic Devices User Manual Revision 2.101 English CAN / Modbus Slave – Converter (Order Code: HD67412) For Website information: www.adfweb.com?Product=HD67412 For Price information: www.adfweb.com?Price=HD67412 Benefits and Main Features: For other Gateways / Bridges:...
Page 2: Table Of Contents
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated...
Page 3: Security Alert
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67412-E4x-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 6 of 32 Industrial Electronic Devices Figure 1b: Connection scheme for HD67412-E7x-xxx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics
Industrial Electronic Devices CHARACTERISTICS: The “HD67412” series are rugged devices used to interface CAN devices with Modbus Master. With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67412-Exx-xxx Consumption at 24V DC: Device W/VA HD67412-Exx-xxx Caution: Not reverse the polarity power HD67412-E4x-xxx HD67412-E7x-xxx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 9 of 32 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10: Rs485
Industrial Electronic Devices RS485: The connection of the RS485 in the HD67412-E4x-xxx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the RS485 in the HD67412-E7x-xxx device must be made with a AMP SuperSeal 1.5 Male connector.
Page 11: Can
Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the CAN in the HD67412-E7x-xxx device must be made with a AMP SuperSeal 1.5 Male connector. The pinout of Female connector of the board is at right side of the page.
Page 12: Usb
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 12 of 32 Industrial Electronic Devices USB: The USB port is used to start the converter in Boot Mode and to program the converter. It is necessary to use a Micro USB type B cable. ADFweb.com Srl –...
Page 13: Use Of Compositor Sw67412
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 13 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67412: To configure the Converter, use the available software that runs with Windows called SW67412. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 14: New Project / Open Project
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 14 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “CAN / Modbus Slave - Converter”...
Page 15: Software Options
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 15 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 16 User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 16 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 17: Set Communication
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 17 of 32 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two buses, CAN and Modbus. By pressing the “Set Communication” button from the main window for SW67412 (Fig. 2) the window “Set Communication Setting”...
Page 18: Receive Cob
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 18 of 32 Industrial Electronic Devices RECEIVE COB: By pressing the “Receive COB” button from the main window of SW67412 (Fig. 2) the window “Receive CAN Frames Definition” appears (Fig.
Page 19: Define Cob
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 19 of 32 Industrial Electronic Devices DEFINE COB: By pressing the “Define COB” button near “Receive COB” from the main window for SW67412 (Fig. 2) the window “Define Modbus Registers for Receive CAN Frames”...
Page 20: Transmit Cob
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 20 of 32 Industrial Electronic Devices TRANSMIT COB: By pressing the “Transmit COB” button from the main window of SW67412 (Fig. 2) the window “Transmit CAN Frames” appears (Fig. 6). This section is used to define the CAN messages sent by the converter.
Page 21: Define Cob
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 21 of 32 Industrial Electronic Devices DEFINE COB By pressing the “Define COB” button near “Transmit COB” from the main window for SW67412 (Fig. 2) the window “Define Modbus Registers for Transmit CAN Frames”...
Page 22: Update Device
In order to load the parameters or update the firmware in the Converter, follow these instructions: Connect the AC67400 to the PC; Connect the CAN port of AC67400 to CAN port of HD67412; Feed the HD67412; Turn on the device;...
Page 23: Update Device Usb
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 23 of 32 Industrial Electronic Devices UPDATE DEVICE USB: By pressing the “Update Device USB” button it is possible to load the created Configuration into the device, and also the Firmware if is necessary, using the USB port.
Page 24 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67412 device. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67412 device.
Page 25: Mechanical Dimensions
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 25 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 26 User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 26 of 32 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 27 User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 27 of 32 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 28 User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 28 of 32 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 29 Page 29 of 32 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67412 – E y z – s d f Fixing lugs A: Type 1 B: Type 2 C: Type 3...
Page 30: Order Code
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 30 of 32 Industrial Electronic Devices ACCESSORIES: Order Code: AC34001 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 Rail DIN - Power Supply 110V AC 50/60Hz – 12 V AC Order Code: AC67402 Cable Super Seal 1.5 MALE 2-pole - 1.0 Meter Order Code: AC67402-3 -...
Page 31: Disclaimer
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 32: Warranties And Technical Support
User Manual CAN / Modbus Slave - Converter Document code: MN67412_ENG Revision 2.101 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
