The default configuration is [Disabled].
- Program PCIe ASPM After OpROM
The default configuration is [Disabled].
- PEG0 De-Emphasis Control
The default configuration is [-3.5 dB]. Users can configure this item as [-6 dB]
if required.
- PEG0 -ASPM
The default configuration is [Auto]. Users can configure this item as [ASPM
L0s], [ASPM L1], or [ASPM L0sL1] if required.
- PEG Sampler Calibrate
The default configuration is [Disabled]. Users can configure this item as
[Auto] or [Enabled] if required.
- Swing Control
The default configuration is [Full]. Users can an configure this item as [Half] if
required.
- PEG RxCEM Loopback Mode
The default configuration is [Disabled].

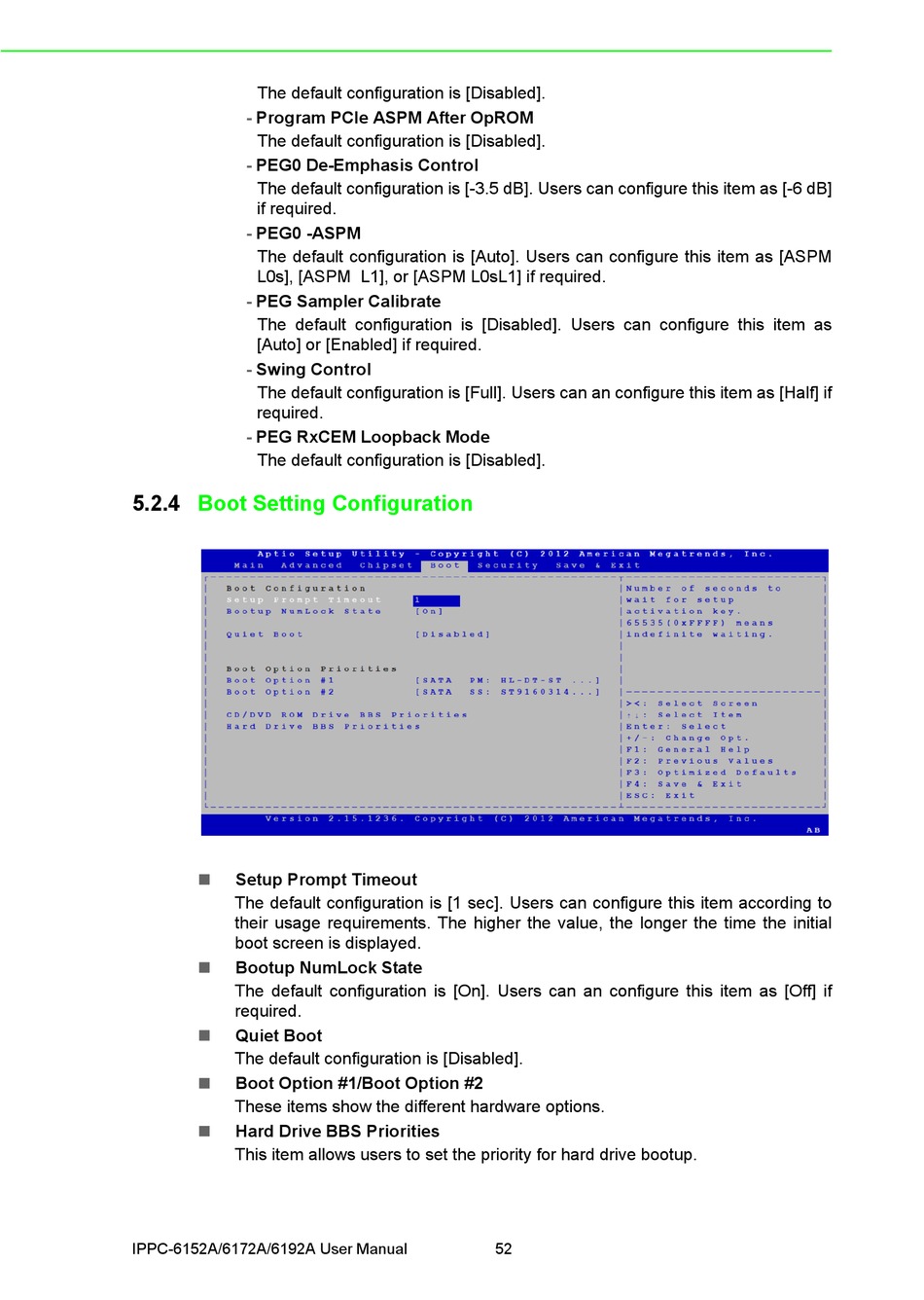

5.2.4

Boot Setting Configuration

 Setup Prompt Timeout
The default configuration is [1 sec]. Users can configure this item according to
their usage requirements. The higher the value, the longer the time the initial
boot screen is displayed.
Bootup NumLock State

The default configuration is [On]. Users can an configure this item as [Off] if
required.
 Quiet Boot
The default configuration is [Disabled].
 Boot Option #1/Boot Option #2
These items show the different hardware options.
 Hard Drive BBS Priorities
This item allows users to set the priority for hard drive bootup.
IPPC-6152A/6172A/6192A User Manual 52
