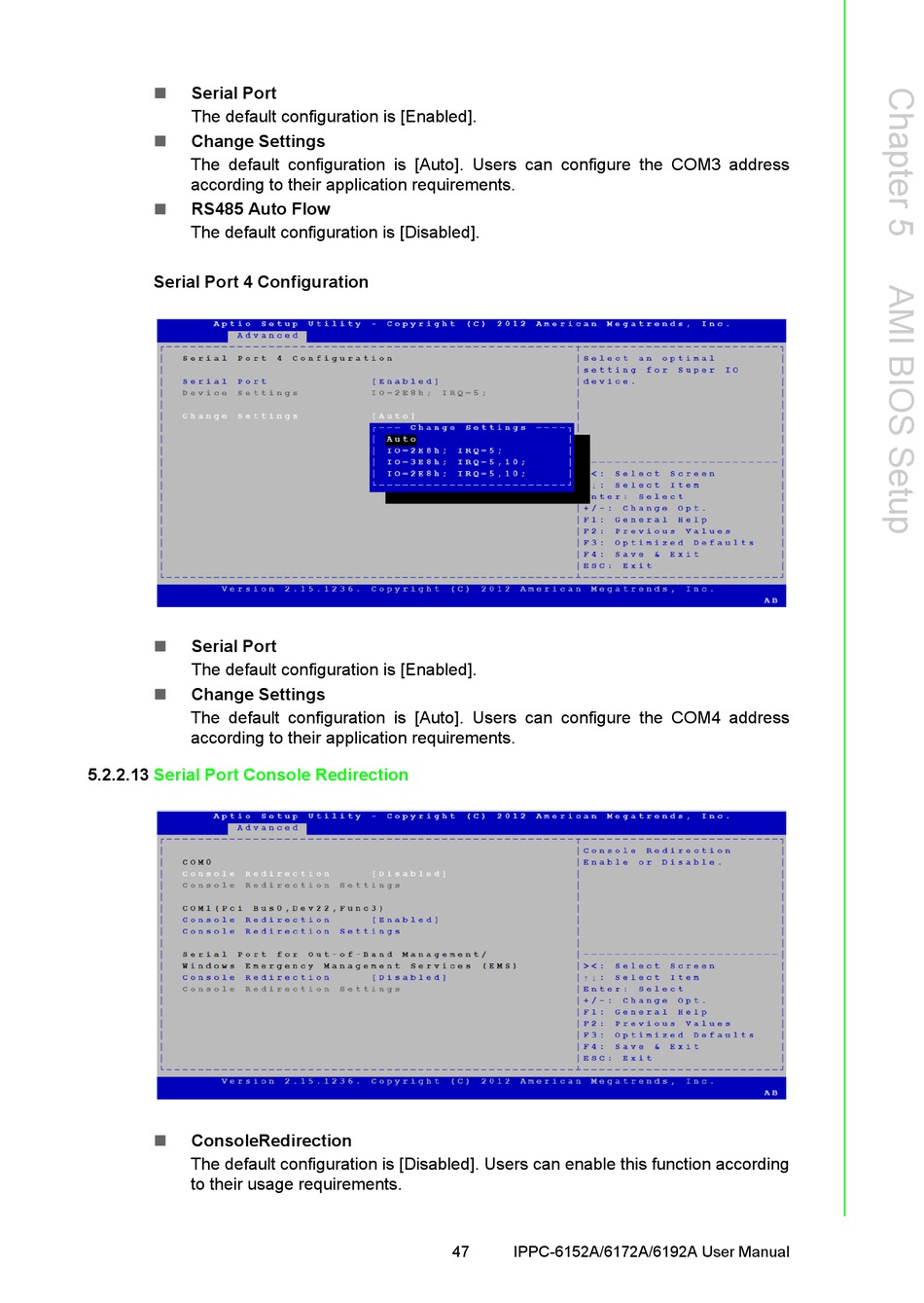

Advantech IPPC-6152A User Manual page 55

 Serial Port
The default configuration is [Enabled].
 Change Settings
The default configuration is [Auto]. Users can configure the COM3 address
according to their application requirements.
 RS485 Auto Flow
The default configuration is [Disabled].
Serial Port 4 Configuration
 Serial Port
The default configuration is [Enabled].
 Change Settings
The default configuration is [Auto]. Users can configure the COM4 address
according to their application requirements.
5.2.2.13 Serial Port Console Redirection
 ConsoleRedirection
The default configuration is [Disabled]. Users can enable this function according
to their usage requirements.
47 IPPC-6152A/6172A/6192A User Manual
