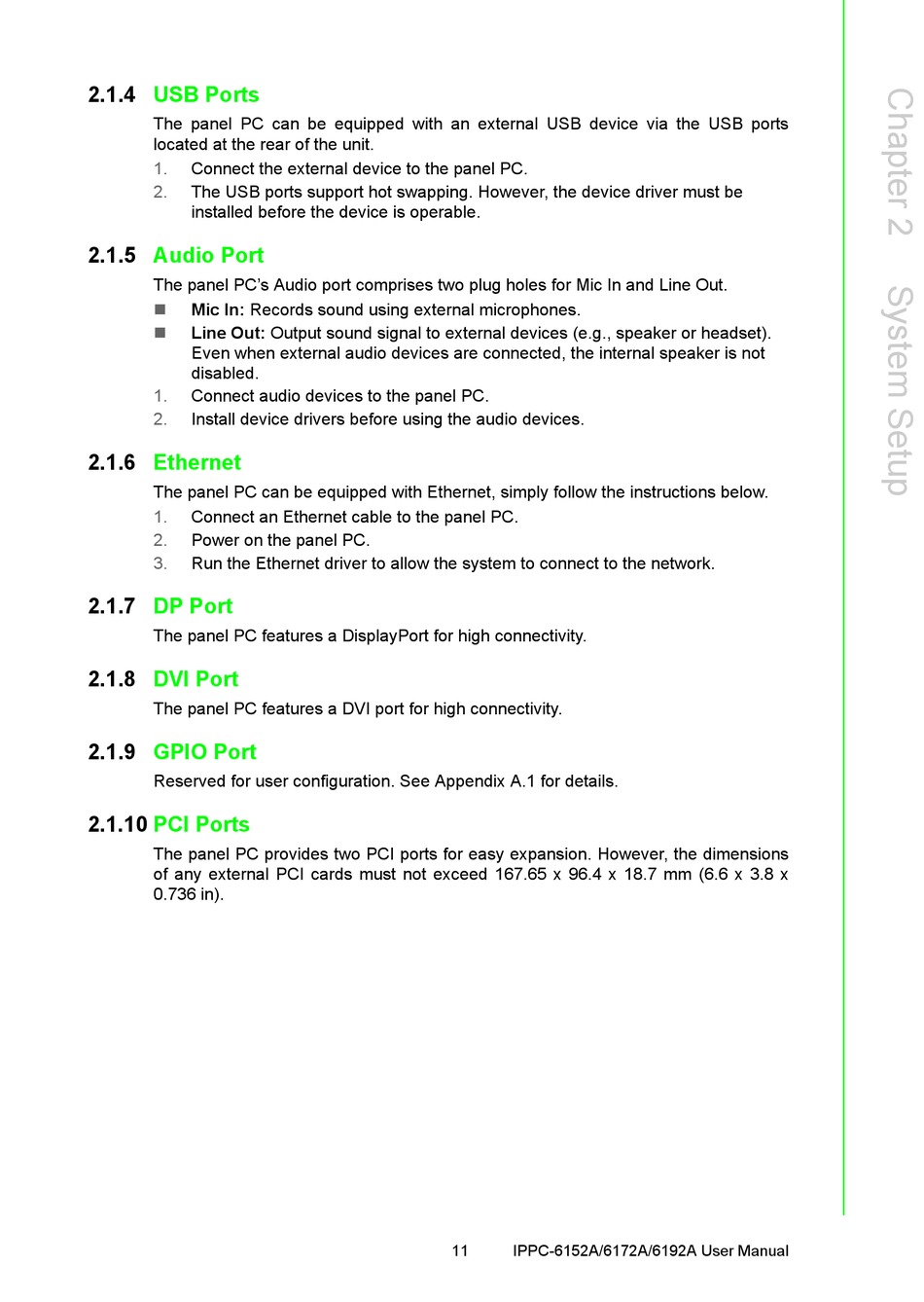

2.1.4
USB Ports
The panel PC can be equipped with an external USB device via the USB ports
located at the rear of the unit.
1.
Connect the external device to the panel PC.
2.
The USB ports support hot swapping. However, the device driver must be
installed before the device is operable.
2.1.5
Audio Port
The panel PC's Audio port comprises two plug holes for Mic In and Line Out.
Mic In: Records sound using external microphones.
Line Out: Output sound signal to external devices (e.g., speaker or headset).
Even when external audio devices are connected, the internal speaker is not
disabled.
1.
Connect audio devices to the panel PC.
2.
Install device drivers before using the audio devices.
2.1.6
Ethernet
The panel PC can be equipped with Ethernet, simply follow the instructions below.
1.
Connect an Ethernet cable to the panel PC.
2.
Power on the panel PC.
3.
Run the Ethernet driver to allow the system to connect to the network.
2.1.7
DP Port
The panel PC features a DisplayPort for high connectivity.
2.1.8
DVI Port
The panel PC features a DVI port for high connectivity.
2.1.9
GPIO Port
Reserved for user configuration. See Appendix A.1 for details.
2.1.10
PCI Ports
The panel PC provides two PCI ports for easy expansion. However, the dimensions
of any external PCI cards must not exceed 167.65 x 96.4 x 18.7 mm (6.6 x 3.8 x
0.736 in).
11
IPPC-6152A/6172A/6192A User Manual
