CFast Riser Card Installation
To install an optional CFast riser card, a CFast module (part number: IPPC-6152-
CFASTE) is required.
1.

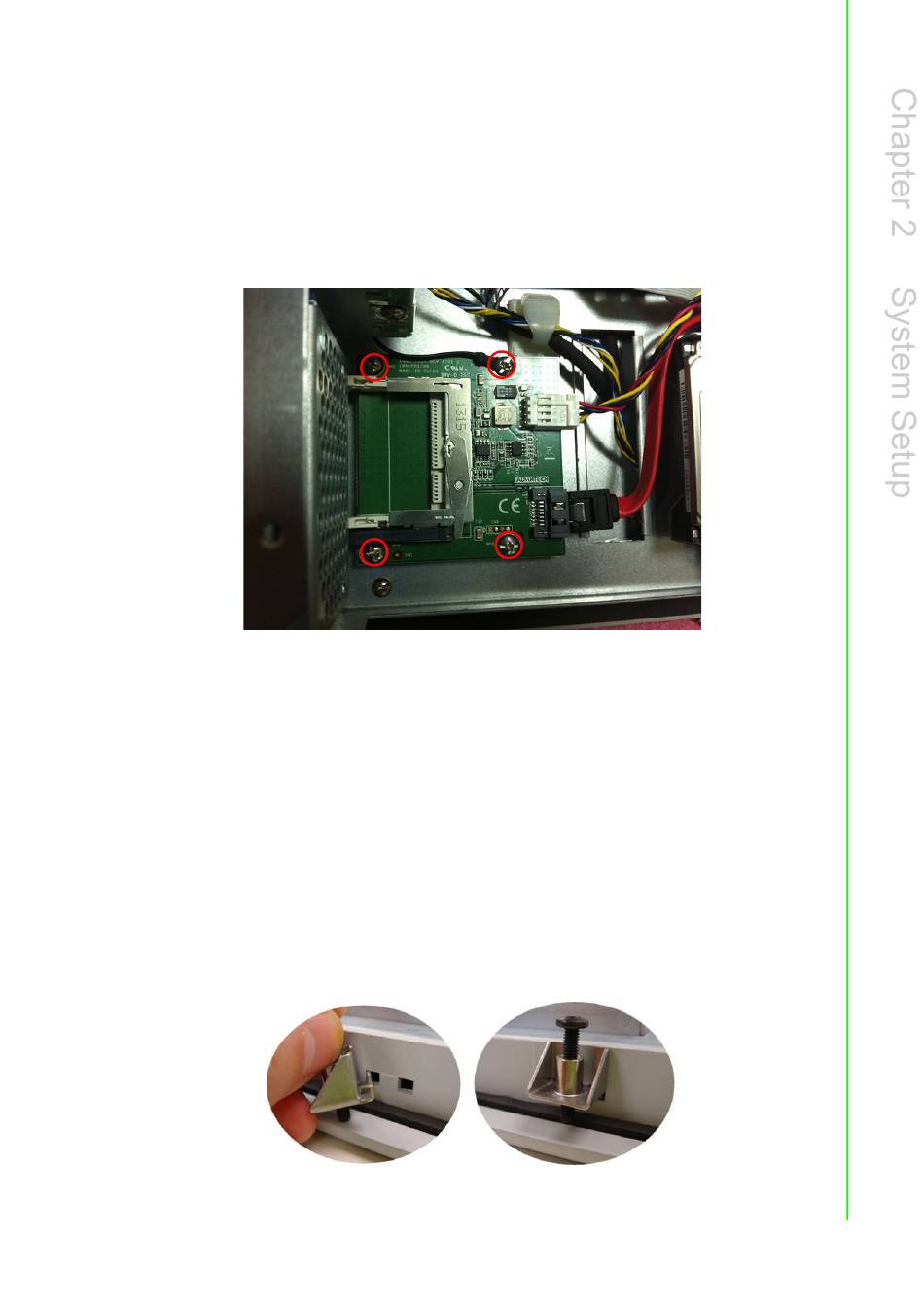

Insert a CFast riser card into the CFast module slot and affix it in place using
four screws retrieved from the accessory box.
2.
Plug the power cable into the CFast module and connect the other end to the 4-
pin power connector.
3.
Plug the data cable into the CFast module and connect the other end to the
SATA4 port of the main board.
2.7
Mounting Instructions
IPPC-6152A/6172A/6192A supports two mount options - panel and rack mounting.
2.7.1
Panel Mounting
1.
Retrieve the four mount brackets from the accessory box.
2.
Attach the four mount brackets by inserting the screws into the keyhole slots on
the panel PC cover.
3.
Use the screws to secure the brackets to the cover. Tighten the screws to
secure the display to the back panel.
