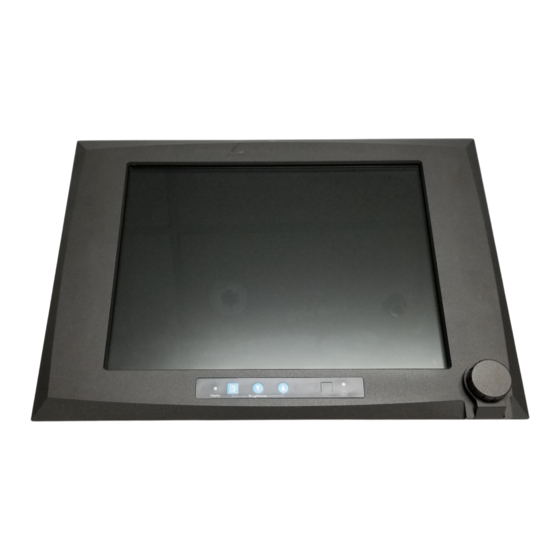

Advantech IPPC-9151 Series Mounting Installation Manual

IPPC-9151&9171 Series
Mounting Installation Guide
Panel Mounting Setup Guide
Follow these procedures to set up the panel mounting
bracket:
1. Take the four mounting brackets out of the accessory
box.
2. Attach the four mounting brackets by inserting the
screws into the keyhole slots on the cover of the monitor.
3. Use the screws to secure the brackets to the cover.
Tighten the screws to secure the monitor to the back
panel.
Note! Panel's maximum thickness is 5 mm.
Rack Mounting Setup Guide
The custom rack mounting package of IPPC-9000 series is
designed to help users install the computer on the mounting
bracket perfectly.
Order Information
Description
IPPC-9000 Rack mount Kit
Note Only the IPPC-9151 series need rack mount kits.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the IPPC-9151G/9171G Series..
Part No. 2003915150
Printed in China
Ordering Part Number
IPPC-9151G-RMKE
1st Edition,
July 2013
IPPC-9151G/9171G Series Rack Mount Installation Guide
Rack Mounting Setup Guide
Follow these instructions to set up the rack mounting bracket
1. Attach the IPPC-9151G-RMKE rack mounting bracket to
the computer from rear to front.
2. Fasten the bracket to the computer with 9 panel bra-
ket-clamps included in the accessory box.
3. Secure the mount to the rack with the included screws. .
The IPPC-9171G can be directly mounted to a 19" industrial
rack. To do this, remove the rubber on the panel.
