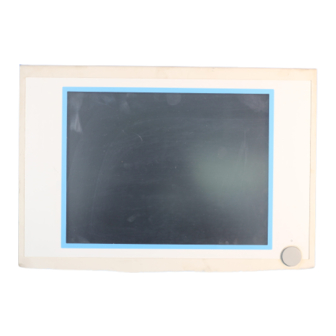

Advantech IPPC-6152A User Manual

15” xga /17” sxga / 19” sxga tft lcd (led backlight) core i7/i5/i3 haswell platform industrial panel pc with 2 x pci slots
Hide thumbs Also See for IPPC-6152A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
IPPC-6152A/6172A/
6192A
15" XGA /17" SXGA / 19" SXGA
TFT LCD (LED Backlight) Core™
i7/i5/i3 Haswell Platform
Industrial Panel PC with 2 x PCI
Slots

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPPC-6152A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech IPPC-6152A

Summary of Contents for Advantech IPPC-6152A

  • Page 1 User Manual IPPC-6152A/6172A/ 6192A 15” XGA /17” SXGA / 19” SXGA TFT LCD (LED Backlight) Core™ i7/i5/i3 Haswell Platform Industrial Panel PC with 2 x PCI Slots...
  • Page 2 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 3 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
  • Page 4 The equipment has obvious signs of breakage. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -40° C OR ABOVE 85° C. THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT. IPPC-6152A/6172A/6192A User Manual...
  • Page 5 Warning! There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions. IPPC-6152A/6172A/6192A User Manual...
  • Page 6 IPPC-6152A/6172A/6192A User Manual...

  • Page 7: Table Of Contents

    1.2.5 Environmental Specifications............4 1.2.6 Certifications ................. 4 1.2.7 IP....................4 Dimensions ....................5 Figure 1.1 IPPC-6152A Dimensions..........5 Figure 1.2 IPPC-6172A Dimensions..........6 Figure 1.3 IPPC-6192A Dimensions..........7 I/O Function Description................8 Chapter System Setup ........9 General ....................10 2.1.1...
  • Page 8 Appendix A I/O & Connector Pin Assignments .. 53 GPIO ....................... 54 Appendix B Watchdog Timer Programming ..55 Overview ....................56 Watchdog Timer Programming ............... 56 Table B.1: Watchdog Timer Registers........57 Example ....................59 IPPC-6152A/6172A/6192A User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information...

  • Page 10: Introduction

    Introduction The IPPC-6152A/6172A/6192A is an Industrial Panel PC with front USB access, sup- ports the powerful Intel i7/i5/i3 Haswell 4th generation processor, high speed DDR3 memory (up to 32 GB) and two expansion PCI slots. The processor and chipset com- bination form the foundation of Intel AMT 9.0 vPro management support system,...

  • Page 11: Specifications

    1 x DVI port 1 x DP 1 x Line out, 1 x Mic in 1 x Keyboard, 1 x Mouse 2 x PCI (standard) Expansion Slots 2 x PCIe x 1 (optional) Windows 7/Windows 8 System IPPC-6152A/6172A/6192A User Manual...

  • Page 12: Power Specifications

    Front Bezel IP Note**! For test conditions for above power consumption, please refer to below Test Condition Test Configuration Test System RAM:32G DDR3 x 4 Burn-in 8.1 HDD:500G 2.5'' SATA Windows7 64 bits I/O:USB2.0 x 4,loopback x 4, IPPC-6152A/6172A/6192A User Manual...

  • Page 13: Dimensions

    Dimensions Figure 1.1 IPPC-6152A Dimensions IPPC-6152A/6172A/6192A User Manual...
  • Page 14 Figure 1.2 IPPC-6172A Dimensions IPPC-6152A/6172A/6192A User Manual...
  • Page 15 Figure 1.3 IPPC-6192A Dimensions IPPC-6152A/6172A/6192A User Manual...

  • Page 16: I/O Function Description

    I/O Function Description A.Power Switch I.DVI B.Mouse J.LANx2 C.Keyboard K.USB3.0x4 D.AC IN L. Line out E.COM1/2/4 (RS-232) M. Mic COM3 (RS-232 /RS-422/RS-485) N.DVD ROM F.DP O.CFast G.GPIO P.USB2.0 H.VGA IPPC-6152A/6172A/6192A User Manual...

  • Page 17: Chapter 2 System Setup

    Chapter System Setup...

  • Page 18: General

    Run the BIOS setup program to set the I/O address and IRQ, and configure the jumper settings to change the mode of the COM ports (refer to section 3.1.2). IPPC-6152A/6172A/6192A User Manual...

  • Page 19: Usb Ports

    Reserved for user configuration. See Appendix A.1 for details. 2.1.10 PCI Ports The device provides 2 PCI ports for users. External PCI card dimension is required not to exceed 167.65 mm (6.6”) x 96.4 mm (3.8”) x 18.7 mm (0.736”). IPPC-6152A/6172A/6192A User Manual...

  • Page 20: Installing Memory

    Installing Memory Loosen the 6 screws on the back cover and open it. Push outward the lever of the memory slot. Insert the memory and then push back the lever. IPPC-6152A/6172A/6192A User Manual...

  • Page 21: Installing Cpu

    Installing CPU Remove CPU fan. Push the CPU lever outward. IPPC-6152A/6172A/6192A User Manual...
  • Page 22 Remove CPU pin cap. Install CPU. Please note the direction of notched corner of the CPU. IPPC-6152A/6172A/6192A User Manual...
  • Page 23 Push back the CPU lever, and then paste the thermal grease (within the accessory box) onto CPU. Install CPU fan, and insert the CPU fan cable. IPPC-6152A/6172A/6192A User Manual...

  • Page 24: Installing Hdd

    Installing HDD Loosen the four screws on the HDD holder. IPPC-6152A/6172A/6192A User Manual...
  • Page 25 Insert the HDD, and fasten the screws (with the accessory box). IPPC-6152A/6172A/6192A User Manual...

  • Page 26: Installing Dvd Rom (Optional)

    HDD or SSD. Installing DVD ROM (Optional) Install DVD ROM (DVD ROM needs to be purchased by customers themselves): Take out DVD ROM holder and the screws from the accessory box, and put DVD ROM onto the holder. IPPC-6152A/6172A/6192A User Manual...
  • Page 27 Fix with screws on both sides of the holder. Install the assembled DVD ROM in the machine. First remove the DVD ROM plate in the machine. IPPC-6152A/6172A/6192A User Manual...
  • Page 28 Install the DVD ROM, and fix with screws. Plug the power data line into the DVD ROM, connect it to 4PIN power via power adapter (within the accessory box), and connect the other end of the data line to SATA1 port of the mainboard. IPPC-6152A/6172A/6192A User Manual...

  • Page 29: Installing Cfast Riser Card (Optional)

    Use the screws to secure the brackets to the cover. Tighten the screws to secure the monitor to the back panel. 2.7.2 Rack Mounting Please order IPPC-6152A-RMKE, IPPC-6172A-RMKE, or IPPC-6192A-RMKE option kit to install to 19” industrial rack. For the detailed installation process, please refer to IPPC-6152-6172-6192_Series_Mount_Installation_Guide(EN&CH) installation guide accompanied by the machine.
  • Page 30 IPPC-6152A/6172A/6192A User Manual...

  • Page 31: Chapter 3 Jumper Settings & Connectors

    Chapter Jumper Settings & Connectors...

  • Page 32: Jumper Settings

    3.1.1 Jumpers & Switches The motherboard of the IPPC-6152A/6172A/6192A has a number of jumpers that allow you to configure your system to suit your applications. The table below lists the function of each of the board’s jumpers.

  • Page 33: Com3 Settings

    3.1.2 COM3 Settings This jumper is used to select RS232 (default)/RS422/RS485. Table 3.1: COM4 Settings RS-232 RS-422 RS-485 Pin Name UART_SIN RXD485 UART_SIN RXD422 UART_SIN RXD232 DCD# SOUT COM3_DCD# COM3_SOUT COM3_TXD485N COM3_RXD485P DTR# COM3_SIN COM3_DTR# COM3_TXD485P COM3_RXD485N IPPC-6152A/6172A/6192A User Manual...

  • Page 34: Clear Cmos (Jcmos1)

    Remove the Jumper JCMOS1(2-3). Close jumper JCMOS1(1-2). Turn on the system.The CMOS is now cleared. Set the BIOS to default. JCMOS1 Clear RTC/CMOS Description Reset the register bit in RTC (short 2-3) Normal operation (short 1-2) Pin Name RTCRST# IPPC-6152A/6172A/6192A User Manual...

  • Page 35: Chapter 4 Intel Chipset

    Chapter Intel Chipset...

  • Page 36: Overview

    Overview In IPPC-6152A/6172A/6192A, Advantech provides a CD-ROM with utilities and driv- ers included. Utilities and Drivers Intel Chipset Software Installation Utility Path: \INF\ Available for the OS's below:  Microsoft Windows 7  Microsoft Windows 8 Dual/Triple Display Setting Click the icon.
  • Page 37 Select “Graphics Properties”. Click “Display”. IPPC-6152A/6172A/6192A User Manual...
  • Page 38 Click the down arrow of Display. Select “Multiple Displays” and configure the parameter. IPPC-6152A/6172A/6192A User Manual...

  • Page 39: Ami Bios Setup

    Chapter AMI BIOS Setup...

  • Page 40: Introduction

    Practice navigating through the various menus and submenus. While mov- ing around through the Setup program, note that explanations appear in the Item Specific Help window located to the right of each menu. This window displays the help text for the currently highlighted field. IPPC-6152A/6172A/6192A User Manual...

  • Page 41: Bios Configuration

    BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. IPPC-6152A/6172A/6192A User Manual...
  • Page 42 The default configuration is [Enabled].  ACPI Sleep State The default configuration is [S3 only]. Users can select other options.  Lock Legacy Resources The default configuration is [Disabled].  S3 Video Repost The default configuration is [Disabled]. IPPC-6152A/6172A/6192A User Manual...
  • Page 43 5.2.2.2 S5 RTC Wake Settings Wake system with Fixed Time The default configuration is [Disabled]. 5.2.2.3 CPU Configuration This option provides CPU parameters for reference. Users can configure to their favorite settings. IPPC-6152A/6172A/6192A User Manual...
  • Page 44 IPPC-6152A/6172A/6192A User Manual...
  • Page 45 5.2.2.4 SATA Configuration Users can check SATA enabled devices in this page. Users can select HDD mode in this option: IDE, AHCI, RAID. IPPC-6152A/6172A/6192A User Manual...
  • Page 46 The default configuration of Intel(R) Rapid Start Technology option is [Disabled]. 5.2.2.6 PCH-FW Configuration Users can view ME version information in this page. The default configuration of MDES BIOS Status Code is [Disabled]. “Me FW Image Re-Flash” inside “Firmware Update Configuration” is set as [Disabled] by default. IPPC-6152A/6172A/6192A User Manual...
  • Page 47 Intel AMT [Enabled] Intel AMT is configured as [Enabled] by default. Intel Active Management Tech- nology (AMT) is based on hardware, which supports remote management and out-band security.  BIOS Hotkey Pressed [Disabled] BIOS key is disabled by default. IPPC-6152A/6172A/6192A User Manual...
  • Page 48 Timer and BIOS Timer are only effective when watchdog function is enabled! 5.2.2.9 USB Configuration  Legacy USB Support [Enabled] USB support is enabled by default. Users can select to enable or disable it.  XHCI Hand-off [Enabled] XHCI Hand-off is enabled by default. IPPC-6152A/6172A/6192A User Manual...
  • Page 49 Device powerup delay is set as auto by default. Users can select auto or man- ual. 5.2.2.10 Super IO Configuration  Serial Port 1 Configuration COM1 port configuration. Users can configure COM1 address according to their requirements, the default configuration is AUTO. IPPC-6152A/6172A/6192A User Manual...
  • Page 50 COM2 port configuration. Users can configure COM2 address according to their requirements, the default configuration is AUTO. The default configuration of Device Mode is [Standard Serial Port Mode]. Users can also set as [IrDA 1.0(HP SIR) Mode] or ASKIR Mode. IPPC-6152A/6172A/6192A User Manual...
  • Page 51 Users can set as Output High or Output Low according to their requirements.  Smart Fan Function The default configuration is enabled.  Smart Fan Mode Configuration This item is used to configure CPU fan and system fan mode. Users can config- ure according to their requirements. IPPC-6152A/6172A/6192A User Manual...
  • Page 52 This option shows the current CPU temperature.  CPU FAN Speed This option shows the current CPU fan speed detected.  SYSTEM1 FAN Speed No system fan installed in FAN1, so no speed displayed.  SYSTEM2 FAN Speed IPPC-6152A/6172A/6192A User Manual...
  • Page 53 5.2.2.12 Second Super IO Configuration  Serial Port 3 Configuration Serial Port [Enabled] The default configuration of COM3 is enabled. Change Settings [Auto] Users can configure COM3 address according to their requirements. The default configuration is AUTO. IPPC-6152A/6172A/6192A User Manual...
  • Page 54 COM3 is enabled by default. ChangeSettings [Auto] Users can configure COM4 address according to their requirements.The default configuration is AUTO. 5.2.2.13 Serial Port Console Redirection  ConsoleRedirection [Disabled] The default configuration is disabled. Users can enable it according to their requirements. IPPC-6152A/6172A/6192A User Manual...

  • Page 55: Chipset Setup

    5.2.3 Chipset Setup 5.2.3.1 PCH-IO Configuration  USB Configuration IPPC-6152A/6172A/6192A User Manual...
  • Page 56 RestoreAC Power LOSS [Power Off] The default configuration is disabled. Power on when alternating current turns down, and the device will not restart. Users can configure it as Power On or Last State according to their requirements. IPPC-6152A/6172A/6192A User Manual...
  • Page 57 5.2.3.2 System Agent (SA) Configuration  Graphics Configuration IPPC-6152A/6172A/6192A User Manual...
  • Page 58 The default configuration is GEN1. Users can modify it to GEN2 if necessary. Run-time C7 Allowed [Enabled] The default configuration is enabled. Enable PEG [Enabled] The default configuration is enabled. Detect Non-Compliance Device [Disabled] The default configuration is disabled. Program PCIe ASPM after OpROM [Disabled] IPPC-6152A/6172A/6192A User Manual...

  • Page 59: Boot Setting Configuration

    Keyboard NumLock indicators are ON by default when booting up. Users can modify it if necessary.  Quiet Boot [Disabled] The default configuration is disabled.  Boot Option #1/Boot Option #2 It shows different hardware options.  Hard Drive BBS Priorities Give priority to hard drive boot. IPPC-6152A/6172A/6192A User Manual...

  • Page 60: Security Setup

    Discard Changes and Exit Discard changes and exit the screen. Press OK or Cancel.  Restore Default Restore default BIOS configuration.  Save as User Defaults Save user default configuration.  Restore User Defaults Restore user default configuration. IPPC-6152A/6172A/6192A User Manual...

  • Page 61: Appendix A I/O & Connector Pin Assignments

    Appendix I/O & Connector Pin Assignments...

  • Page 62: Gpio

    GPIO0 from GP70 of SIO GPIO1 from GP71 of SIO GPIO2 from GP72 of SIO GPIO3 from GP73 of SIO GPIO4 from GP74 of SIO GPIO5 from GP75 of SIO GPIO6 from GP76 of SIO GPIO7 from GP77 of SIO IPPC-6152A/6172A/6192A User Manual...

  • Page 63: Appendix B Watchdog Timer Programming

    Appendix Watchdog Timer Programming...

  • Page 64: Overview

    Overview The IPPC-6152A/IPPC-6172A/IPPC-6192A cards' watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function after the programmed period. The watchdog timer is built into the I/O controller NCT6776D. It provides the following functions for user programming: Can be enabled and disabled by user's program.
  • Page 65 Unlock NCT6776D Select register of watchdog timer Enable the function of watchdog timer Use the function of watchdog timer Lock NCT6776D Table B.1: Watchdog Timer Registers Address of Register (2E) Attribute Value (2F) & Read/Write Description IPPC-6152A/6172A/6192A User Manual...
  • Page 66 Bit 5: Write 1 to generate a timeout signal immedi- ately and automatically return to 0. [default=0] Bit 4: Read status of watchdog timer, 1 means timer is “timeout”. Write this address to I/O port 2E (hex) to lock the AA (hex) ----- watchdog timer 2. IPPC-6152A/6172A/6192A User Manual...

  • Page 67: Example

    Inc dx Mov al,10 Out dx,al ;----------------------------------------------------------- Dec dx ; Lock NCT6776D Mov al,0aah Out dx,al Enable watchdog timer and set 5 minutes as timeout interval. ;----------------------------------------------------------- Mov dx,2eh ; Unlock NCT6776D Mov al,87h Out dx,al Out dx,al IPPC-6152A/6172A/6192A User Manual...
  • Page 68 Enable watchdog timer to be reset by mouse ;----------------------------------------------------------- Mov dx,2eh ; Unlock NCT6776D Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------- Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------- IPPC-6152A/6172A/6192A User Manual...
  • Page 69 Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------- Dec dx ; Enable watchdog timer to be strobed reset by keyboard Mov al,0f7h Out dx,al Inc dx In al,dx Or al,40h Out dx,al IPPC-6152A/6172A/6192A User Manual...
  • Page 70 Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ; Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------- Dec dx ; Lock NCT6776D Mov al,0aah Out dx,al IPPC-6152A/6172A/6192A User Manual...
  • Page 71 IPPC-6152A/6172A/6192A User Manual...
  • Page 72 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019...
