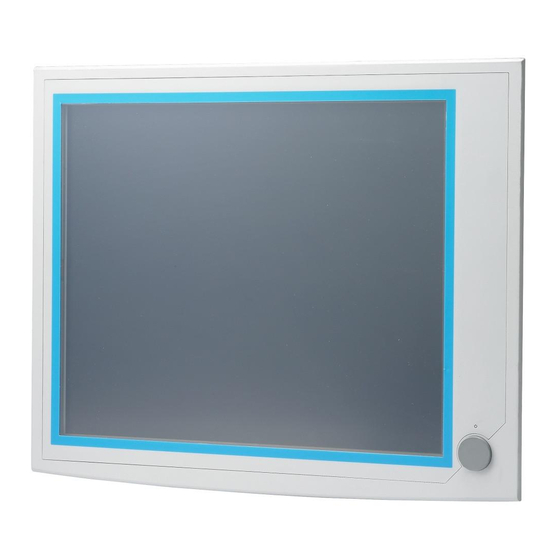

Advantech IPPC-6192A Series User Manual

19" sxga tft lcd core 2 quad / core 2 duo industrial panel pc with 2 x pci slots
Hide thumbs Also See for IPPC-6192A Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
IPPC-6192A Series
19" SXGA TFT LCD Core 2 Quad
/ Core 2 Duo Industrial Panel PC
with 2 x PCI Slots

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPPC-6192A Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech IPPC-6192A Series

Summary of Contents for Advantech IPPC-6192A Series

  • Page 1 User Manual IPPC-6192A Series 19" SXGA TFT LCD Core 2 Quad / Core 2 Duo Industrial Panel PC with 2 x PCI Slots...
  • Page 2 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 3 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
  • Page 4 Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible.

  • Page 5: Table Of Contents

    Contents Chapter General Information ......1 Introduction ....................2 Specifications .................... 3 1.2.1 General ..................3 1.2.2 Standard PC Functions..............3 1.2.3 Display ..................3 1.2.4 Audio Functions ................3 1.2.5 PCI bus Ethernet Interface............4 1.2.6 Touchscreen Specifications ............4 1.2.7 Environmental ................
  • Page 6 BIOS Setup Program ................24 5.1.1 Legend Box................. 24 5.1.2 List Box ..................25 5.1.3 Sub-menu ................... 25 Main Setup....................25 Advanced BIOS Setup ................26 5.3.1 Super I/O Configuration .............. 29 5.3.2 ACPI Configuration ..............32 5.3.3 AHCI Configuration..............33 5.3.4 APM Configuration..............

  • Page 7: Chapter 1 General Information

    Chapter General Information...

  • Page 8: Introduction

    2.8GHz or Core 2 Duo up to 3.0GHz Friendly HMI Systems in the IPPC-6192A series are equipped with a 19" LCD screen, which pro- vides high resolution display quality. The result is vivid, bright, and sharp quality images. The panel PC is perfectly suited for Windows OS. The touchscreen version enables simple operation, making the Panel PC a solid industrial digital controller interface.

  • Page 9: Specifications

    Specifications 1.2.1 General  Dimensions (W x H x D): Front Panel: 481.92 x 355.87 x 26 mm Control Box: 362 x 285 x 112.2 mm Cut out Dimensions: 454 x 338 mm  Weight: 16.6 Kg (36.5 lb)  Power Supply: 350 W ...

  • Page 10: Pci Bus Ethernet Interface

    1.2.5 PCI bus Ethernet Interface Chipset: Intel 82567-LM Gigabit LAN (IAMT), Intel 82574L Gigabit LAN Ethernet Interface: 10/100/1000Base-T x 2 1.2.6 Touchscreen Specifications Type: Analog resistive 5-wire  Lifespan: 36 million, writing rate is 250g at 2 times/s   Light Transmission: >80% ...

  • Page 11: Dimensions

    Dimensions 384.60 [15.14] 285.00 [11.22] 23.50 [0.93] 21.04 [0.83] IPPC-6192A User Manual...
  • Page 12 IPPC-6192A User Manual...

  • Page 13: Chapter 2 System Setup

    Chapter System Setup...

  • Page 14: General

    General Before you start the computer, please follow these procedures for set up: Check and adjust jumpers on the motherboard (see Chapter 3) Install DDR3 SDRAM Install a CPU Install add-on cards Connect the wires, cables and accessories Mount the computer Program the BIOS settings Install an operating system.

  • Page 15: Usb Ports

    2.1.4 USB Ports An external USB device may be connected to the system via the 4-pin USB ports located on the rear side of the system unit. Connect the external device to the system. The USB ports support hot plug-in connection. You should install the device driver before you use the device.

  • Page 16: Installing A Cpu

    Installing a CPU The CPU can be upgraded to improve system performance. The system provides Socket LGA775 architecture which supports Intel Core 2 Quad up to 2.8GHz and Intel Core 2 Duo up to 3.0GHz. Unlock the back cover and open it. Remove the CPU cooler.
  • Page 17 Warning! Always disconnect the power cord from your panel PC when you are working on it. Do not make connections while the power is on, because sensitive electronic components can be damaged by the sudden rush of power. Only experienced electronics personnel should open the panel IPPC-6192A User Manual...

  • Page 18: Installing A 2.5" Sata Hdd

    Installing a 2.5" SATA HDD You can attach two enhanced Serial Advanced Technology Attachment (SATA) hard disk drives to IPPC-6192A's internal controller which uses PCI local bus interface. The following instructions are for installation: Unscrew the back cover and open it. Remove four screws and take off HDD bracket.

  • Page 19: Installing Add-On Cards

    Installing Add-on Cards 2.5.1 Add-on Cards Support This system supports two PCI expansion cards. 2.5.2 Installing Add-on Cards The following procedures will instruct you to install the PCIe riser card provided in the accessory box. Detach the five screws on the back to open the lid. Remove the PCI riser card by loosing the 2 screws which fix the card to the bracket.

  • Page 20: Mounting Instructions

    Replace the back cover and fix it with 5 screws. This system supports two PCI expansion cards. Mounting Instructions There are two ways to mount the system: panel mounting or rack mounting. 2.6.1 Panel Mounting Take the four mounting brackets out of the accessory box. Attach the four mounting brackets by inserting the screws into the keyhole slots on the cover of the monitor.

  • Page 21: Chapter 3 Jumper Settings & Connectors

    Chapter Jumper Settings & Connectors...

  • Page 22: Jumper Settings

    Jumper Settings This section tells how to set the jumpers to configure your card. For the locations of each jumper, see the board layout diagram depicted earlier in this chapter. You con- figure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch.
  • Page 23 Table 3.2: Connectors LAN1_USB1 LAN2/USB2/USB3 PhoneJack RJ45+USB*2 AUDIO1 AUDIO LINE IN,LINE OUT,MIC IN FAN0,FAN1,FAN2 FAN CONNECTOR Wafer 2.54mm 4P FAN3 FAN CONNECTOR Wafer 2.54mm 3P ATX12V1 +12V CONNECTOR 2X2 12V POWER CONN EATPWR1 ATXPOWER CONNECTOR 2X12 ATX Power CONN. SPI1 SPI Interface CONNECTOR 2x8 Cut 8 pin 2.54mm \ SAT1&SAT2&SAT3&SAT4...

  • Page 24: Com4 Settings (J20)

    3.1.3 COM4 Settings (J20) This jumper is used to select RS232(default)/ RS422 / RS485 Table 3.3: COM4 Settings RS-232 RS-422 RS-485 RS-232 RS-422 RS-485 NDCD NDTR NDSR NRTS NCTS 3.1.4 Clear CMOS (CLRTC1) This jumper is used to erase CMOS data and reset system BIOS information. Follow the procedures below to clear the CMOS.

  • Page 25: Chapter 4 Intel Chipset

    Chapter Intel Chipset...

  • Page 26: Overview

    Overview In IPPC-6192A, Advantech provides a CD-ROM with utilities and drivers included. Please install the Chipset INF driver, VGA graphics driver, LAN driver, audio driver, Touch Screen driver sequentially. Utilities and Drivers The following utilities and drivers are provided with IPPC-6192A. You can also find out the updated description of the utilities and drivers in the ReadMe.txt file on the...

  • Page 27: Dual Display Setting

    Dual Display Setting If you use CRT monitor, you must Connections to CRT port in during system boot up. During system boot up, the system will set CRT parameter. If you have multiple devices, you can set them. Click Intel graphic icon from the toolbars Select Graphics properties This control allows selection of a device page.

  • Page 28: Touchscreen Installation & Configuration

    4.3.1 Touchscreen Installation & Configuration Driver Installation For driver installation, please insert the support CD and refer to the path: \\Touch- screen Driver\DMC 6000 (Combo)\Manual\PenMount Win2K&XP&2003&Vista Uni- versal Driver Manual V1.02.pdf IPPC-6192A User Manual...

  • Page 29: Chapter 5 Ami Bios Setup

    Chapter AMI BIOS Setup...

  • Page 30: Bios Setup Program

    BIOS Setup Program The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user's guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.

  • Page 31: List Box

    5.1.2 List Box This box appears only in the opening screen. The box displays an initial list of config- urable items in the menu you selected. 5.1.3 Sub-menu Note that a right pointer symbol (u) appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field.

  • Page 32: Advanced Bios Setup

    Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Supe- rIO Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 33 Execute-Disable Bit Capability The choices of Execute-Disable Bit Capability are Enabled, Disabled. Core Multi-Processing This item allows you to configure multi-core processing. The default setting is Enabled. PECI PECI or Platform Environment Control Interface. The default setting is Enabled. ® Intel SpeedStep (TM) tech This item allows you configure Intel SpeedStep.
  • Page 34 Note! IPPC-6192A supports RAID 0 or 1 so RAID recovery function is not available in Intel Matrix Storage utility. SATA#2 Configuration The choices of SATA configuration are Disabled and Enhanced. Primary/Secondary IDE Master/Slave, Third/Fourth IDE Master, Fifth IDE Mas- ter/Slave Select one of the hard disk drives to configure it.

  • Page 35: Super I/O Configuration

    5.3.1 Super I/O Configuration You can use this screen to select options for the Super I/O settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below.
  • Page 36 Option Description 2F8/IRQ3 Set this value to allow the serial port to use 2F8 as its I/O port address and IRQ 3 for the interrupt address. This is the default set- ting. The majority of serial port 2 or COM2 ports on computer sys- tems use IRQ3 and I/O Port 2F8 as the standard setting.
  • Page 37 CPU Temperature This shows you the current CPU temperature. System Temperature This shows you the current temperature of system. FAN 0 Speed This shows the current CPU FAN operating speed. FAN 1 Speed This shows the current System FAN 1operating speed. FAN 2 Speed This shows the current System FAN 2 operating speed.

  • Page 38: Acpi Configuration

    5.3.2 ACPI Configuration You can use this screen to select options for the ACPI settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below.

  • Page 39: Ahci Configuration

    High Performance Event Timer This item allows you to enable or disable the High Performance Event Timer. 5.3.3 AHCI Configuration You can use this screen to select options for the AHCI settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 40 Device This area shows the detected connected device. SATA Port0/1/2/3/4/5 This item allows you to select the connected device type. Options: Auto (Default) S.M.A.R.T. This item allows you to control the device S.M.A.R.T function. The options are Enabled (Default) / Disabled. IPPC-6192A User Manual...

  • Page 41: Apm Configuration

    5.3.4 APM Configuration You can use this screen to select options for the APM settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages. Resume On Ring Disable or Enable RI to generate a wake event.

  • Page 42: Configure Intel At-D Parameters

    5.3.5 Configure Intel AT-d Parameters DTAM Support Document Transfer And Manipulation Support. Options(Default) : Disabled. 5.3.6 Intel AMT Configuration You can use this screen to select options for Intel AMT settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option.
  • Page 43 Intel AMT Support Intel Active Management Technology (AMT) is hardware-based technology for remotely managing and securing PCs out-of-band. Unconfigure AMT/ME To finish the unconfiguration of AMT, set this setting to [Enabled] and the BIOS will unconfigure all of AMT/ME settings and all the passwords are reset. Activate Remote Assistance This setting is used to control whether to need to open the remote assist of the func- tion.The default setting is Disable.

  • Page 44: Intel Vt-D Configuration

    5.3.7 Intel VT-d Configuration You can use this screen to select options for the Intel VT-d settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages. The screen is shown below.

  • Page 45: Trusted Computing

    5.3.8 Trusted Computing You can use this screen to select options for the Intel Trusted Computing settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. The settings are described on the following pages.

  • Page 46: Advanced Pci/Pnp Settings

    Advanced PCI/PnP Settings Select the PCI/PnP tab from the setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec- tion.
  • Page 47 Option Description This option sets the PCI latency to 32 PCI clock cycles. This option sets the PCI latency to 64 PCI clock cycles. This is the default setting. This option sets the PCI latency to 96 PCI clock cycles. This option sets the PCI latency to 128 PCI clock cycles.

  • Page 48: Boot Setting Configuration

    Set this value to allow the DMA setting to be modified. DMA Channel Option Description DMA Channel 0 Available This setting allows the specified DMA to be used by PCI/ PnP device. This is the default setting. DMA Channel 1 DMA Channel 3 DMA Channel 5 DMA Channel 6...
  • Page 49 Quick Boot The default setting is Enabled. Option Description Disabled Set this value to allow the BIOS to perform all POST tests. Enabled Set this value to allow the BIOS to skip certain POST tests to boot faster. Quiet Boot Set this value to allow the boot up screen options to be modified between POST messages or OEM logo.
  • Page 50 Bootup Num-Lock Set this value to allow the Number Lock setting to be modified during boot up. The default setting is On. Option Description This option does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad.

  • Page 51: Security Setup

    Security Setup Select Security Setup from the Setup main BIOS setup menu. All Security Setup options, such as password protection and virus protection, are described in this sec- tion. To access the sub menu for the following items, select the item and press <Enter>: Change Supervisor Password Change Supervisor Password This item indicates whether a supervisor password has been set.

  • Page 52: Chipset Setup

    Chipset Setup Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display a Chipset BIOS Setup option by highlighting it using the <Arrow>...
  • Page 53 Note! The North Bridge Configuration setup screen varies depending on the supported North Bridge chipset. Initate Graphics Adaptor This item selects which graphics controller to use as the primary boot device. The options are IGD, PCI/IGD, PCI/PEG, PEG/IGD, PEG/PCI. The default setting is PEG/ PCI.

  • Page 54: South Bridge Configuration

    5.7.2 South Bridge Configuration You can use this screen to select options for the South Bridge Configuration. South Bridge is a chipset on the motherboard that controls the basic I/O functions, USB ports, audio functions, modem functions, IDE channels, and PCI slots. Use the up and down <Arrow>...

  • Page 55: Exit Menu

    Restore on AC Power Loss This item allows you to restore AC power to Power Off, Power On or Last State. The default setting is Power On. PCIE Ports Configuration Option Description PCIE Port 0 This setting allows to enable the PCIE Port 0. The choices are Auto, Enabled, and Disabled.
  • Page 56 Save Configuration Changes and Exit Now? [Ok] [Cancel] appears in the window. Select Ok to save changes and exit. Discard Changes and Exit Select this option to quit Setup without making any permanent changes to the system configuration. Select Exit Discarding Changes from the Exit menu and press <Enter>.

  • Page 57: Appendix Aio & Connector Pin Assignments

    Appendix IO & Connector Pin Assignments...

  • Page 58: Cn1, Cn2 Lvds

    CN1, CN2 LVDS CRT&COM3 D-Sub 15-PIN& D-Sub 9-PIN CN2&CN3 LVDS 24/48 BIT LVDS IPPC-6192A User Manual...
  • Page 59 LCD INVER Power Connector WaferBOX 2.0mm 10P Touchscreen WaferBOX 2.0mm 9P IPPC-6192A User Manual...
  • Page 60 CN6&CN7 USB Port4& Port5 WaferBOX 2.54mm 5P CN9&CN10&CN11&CN12 SATA POWER PORT WaferBOX 2.54mm 8P CN18 PANEL HEADER WaferBOX 2.0mm 9P IPPC-6192A User Manual...
  • Page 61 KBMS1 KEYBOARD,MOUSE COMD1 COM1&COM2 D-Sub 9-PIN*2 IPPC-6192A User Manual...
  • Page 62 LAN1_USB12 LAN1/USB0/USB1 PhoneJack RJ45+USB*2 LAN1_USB1 LAN2/USB2/USB3 PhoneJack RJ45+USB*2 IPPC-6192A User Manual...
  • Page 63 AUDIO1 AUDIO LINE IN,LINE OUT,MIC IN FAN0,FAN1,FAN2 FAN CONNECTOR Wafer 2.54mm 4P IPPC-6192A User Manual...
  • Page 64 FAN3 FAN CONNECTOR Wafer 2.54mm 3P ATX12V1 +12V CONNECTOR 2X2 12V POWER CONN EATPWR1 ATXPOWER CONNECTOR 2X12 ATX Power CONN. IPPC-6192A User Manual...
  • Page 65 SPI1 SPI Interface CONNECTOR 2x8 Cut 8 pin 2.54mm \ SAT1&SAT2&SAT3&SAT4 SATA PORT SerialATA Conn 7P 180D IPPC-6192A User Manual...
  • Page 66 IPPC-6192A User Manual...

  • Page 67: Appendix B System Assignments

    Appendix System Assignments...

  • Page 68: System I/O Ports

    System I/O Ports Table B.1: System I/O Ports Addr. Range (Hex) Device 000-01F DMA controller 020-021 Interrupt controller 1, master 022-023 Chipset address 040-05F 8254 timer 060-06F 8042 (keyboard controller) 070-07F Real-time clock, non-maskable interrupt (NMI) mask 080-09F DMA page register 0A0-0BF Interrupt controller 2 0C0-0DF...

  • Page 69: Interrupt Assignments

    Interrupt Assignments Table B.3: Interrupt Assignments Priority Interrupt# Interrupt Source Parity error detected IRQ0 Interval timer IRQ1 Keyboard - IRQ2 Interrupt from controller 2 (cascade) IRQ8 Real-time clock IRQ9 Cascaded to INT 0A (IRQ 2) IRQ10 Serial communication port 4 IRQ11 Available IRQ12...
  • Page 70 IPPC-6192A User Manual...

  • Page 71: Appendix C Watchdog Timer

    Appendix Watchdog Timer...

  • Page 72: Overview

    Overview The IPPC-6192 cards' watchdog timer can be used to monitor system software oper- ation and take corrective action if the software fails to function after the programmed period. This section describes the operation of the watchdog timer, and how to pro- gram it.
  • Page 73 ; Sample Code Superio_Config_PortEQU4Eh ;----------------------------------------------- ENTER CONFIGURATION MODE ;----------------------------------------------- mov dx, Superio_Config_Port mov al, 055h dx, al dx, al IODELAY ;----------------------------------------------- ;----------------------------------------------- mov dx, Superio_Config_Port mov al, 7h dx, al IODELAY mov al, 0ah dx, al IODELAY ;----------------------------------------------- GET RUNTIME REGISTER BASE ADDRESS ;----------------------------------------------- mov dx, Superio_Config_Port mov al, 60h...
  • Page 74 dx, al IODELAY al, dx mov bl, al ; low byte in BL IODELAY ;----------------------------------------------- CONFIGURE GP60 AS WATCHDOG TIMER ;----------------------------------------------- mov dx, bx add dx, 47h al, dx IODELAY al, 0ch ;WDT and al, 0feh;output, don't touch bit 1 dx, al IODELAY ;-----------------------------------------------...
  • Page 75 EXIT CONFIGURATION MODE ;----------------------------------------------- mov dx, Superio_Config_Port mov al, 0AAh dx, al IPPC-6192A User Manual...
  • Page 76 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2012...
