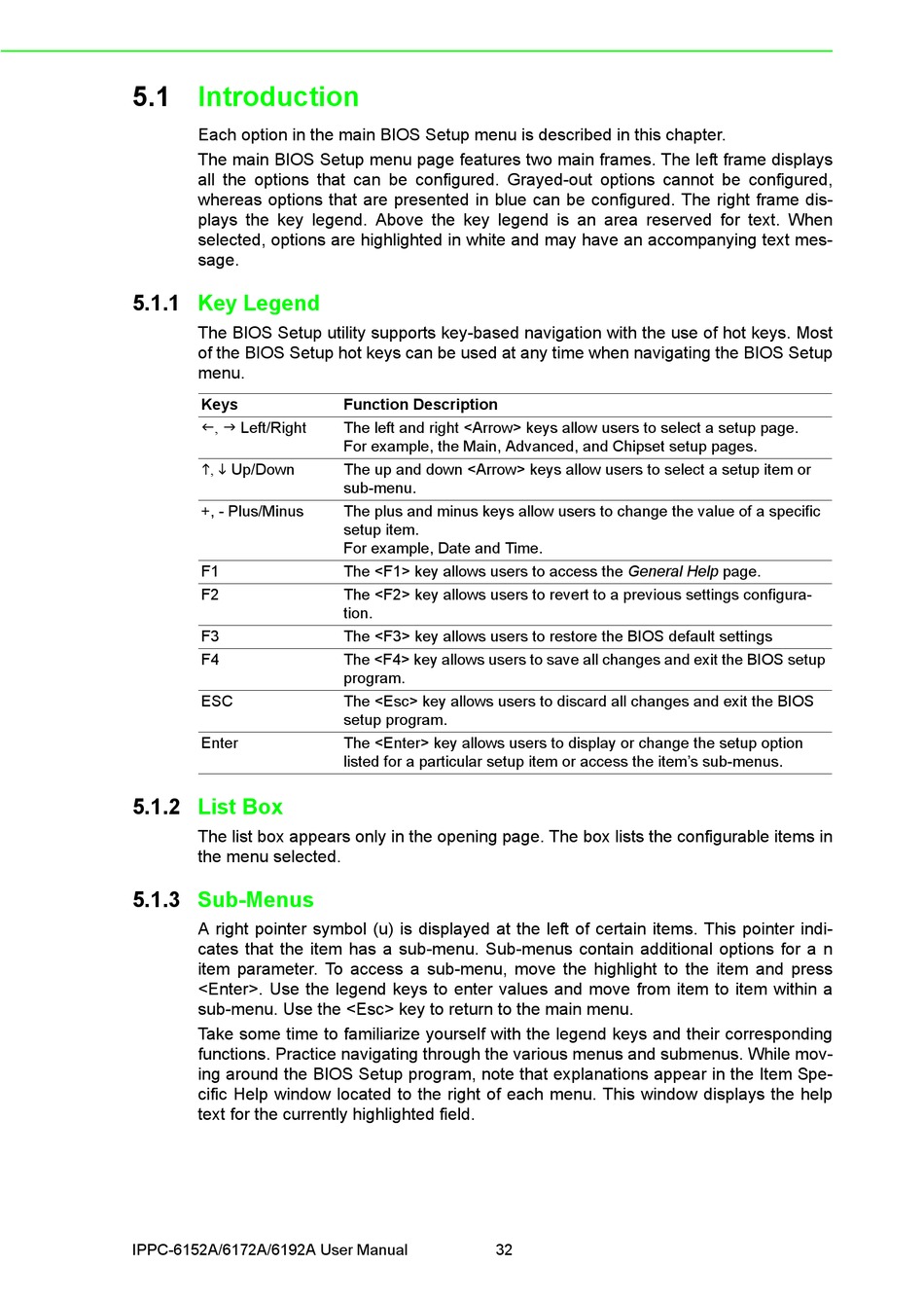

5.1
Introduction
Each option in the main BIOS Setup menu is described in this chapter.
The main BIOS Setup menu page features two main frames. The left frame displays
all the options that can be configured. Grayed-out options cannot be configured,
whereas options that are presented in blue can be configured. The right frame dis-
plays the key legend. Above the key legend is an area reserved for text. When
selected, options are highlighted in white and may have an accompanying text mes-
sage.
5.1.1
Key Legend
The BIOS Setup utility supports key-based navigation with the use of hot keys. Most
of the BIOS Setup hot keys can be used at any time when navigating the BIOS Setup
menu.
Keys
, Left/Right
, Up/Down
+, - Plus/Minus
F1
F2
F3
F4
ESC
Enter
5.1.2
List Box
The list box appears only in the opening page. The box lists the configurable items in
the menu selected.
5.1.3
Sub-Menus
A right pointer symbol (u) is displayed at the left of certain items. This pointer indi-
cates that the item has a sub-menu. Sub-menus contain additional options for a n
item parameter. To access a sub-menu, move the highlight to the item and press
<Enter>. Use the legend keys to enter values and move from item to item within a
sub-menu. Use the <Esc> key to return to the main menu.
Take some time to familiarize yourself with the legend keys and their corresponding
functions. Practice navigating through the various menus and submenus. While mov-
ing around the BIOS Setup program, note that explanations appear in the Item Spe-
cific Help window located to the right of each menu. This window displays the help
text for the currently highlighted field.
IPPC-6152A/6172A/6192A User Manual
Function Description
The left and right <Arrow> keys allow users to select a setup page.
For example, the Main, Advanced, and Chipset setup pages.
The up and down <Arrow> keys allow users to select a setup item or
sub-menu.
The plus and minus keys allow users to change the value of a specific
setup item.
For example, Date and Time.
The <F1> key allows users to access the General Help page.
The <F2> key allows users to revert to a previous settings configura-
tion.
The <F3> key allows users to restore the BIOS default settings
The <F4> key allows users to save all changes and exit the BIOS setup
program.
The <Esc> key allows users to discard all changes and exit the BIOS
setup program.
The <Enter> key allows users to display or change the setup option
listed for a particular setup item or access the item's sub-menus.
32
