Resetting Instrument
Totalizers
Foundation Fieldbus Communications
To reset the instrument totalizers:
1. Double click on the FLOW transducer block (in the tree under
GEFlow-XMT; see Figure D-1 on page D-2).
2. Select the Others tab and scroll down to the CLEAR_TOTALIZERS
listing.
3. Select Clear from the drop down list box (see Figure D-4 below).
4. After the totals have been reset, select Normal from the drop
down list box to resume total accumulation.

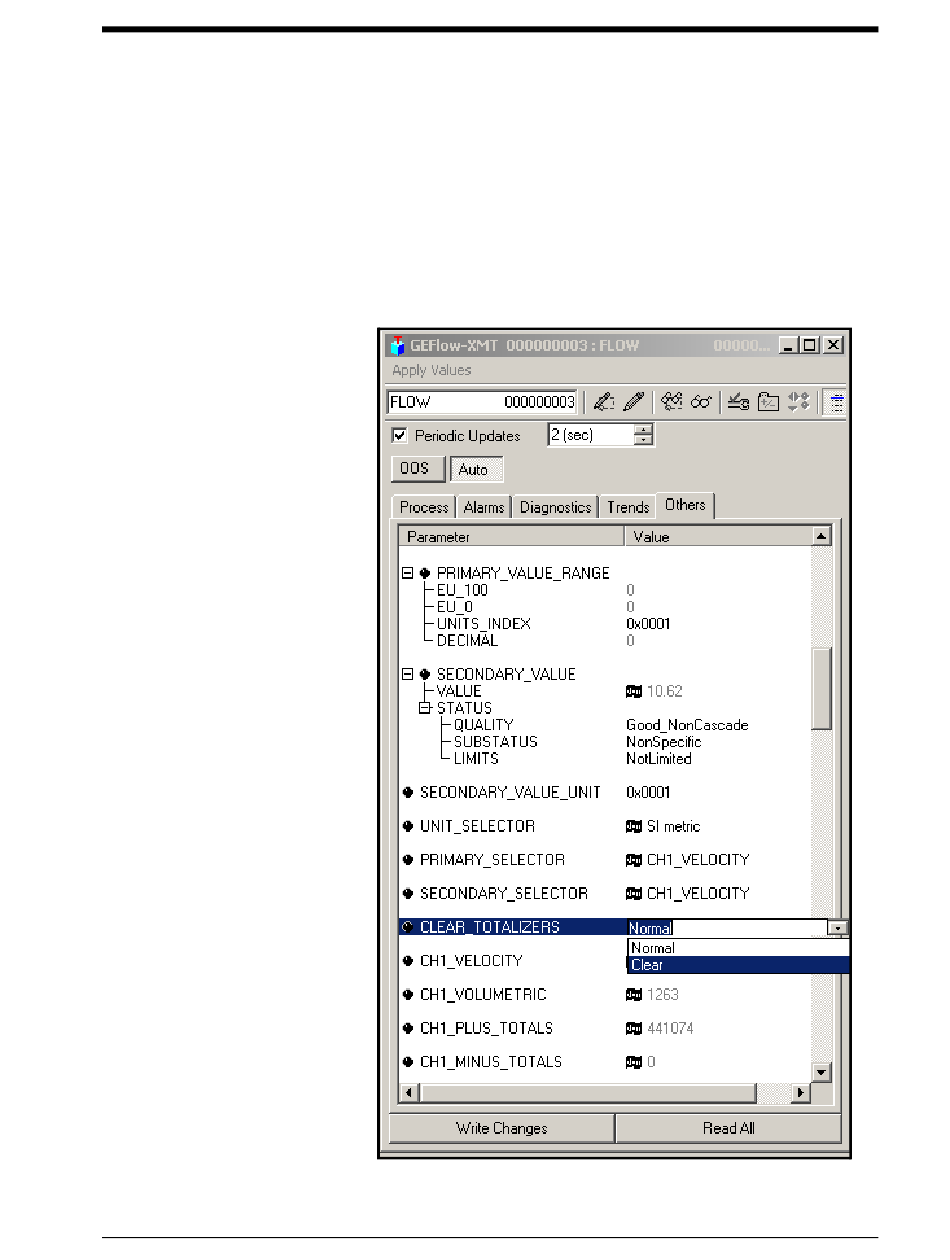

Figure D-4: Clear Totalizers Drop Down List
April 2008
D-5
