Changing Meter Settings
(cont.)
Programming with PanaView
6. To enter a particular option:
a. Highlight and double-click on the desired option in the left
pane. Figure C-21 below shows the first entry (Transducer
Number) in the Pipe parameters option. The title above the
center pane lists the current entry, while the center pane
displays the available selections for that entry.
b. Click on the desired choice; if the entry requires a numeric
value, change the value displayed in the right pane.

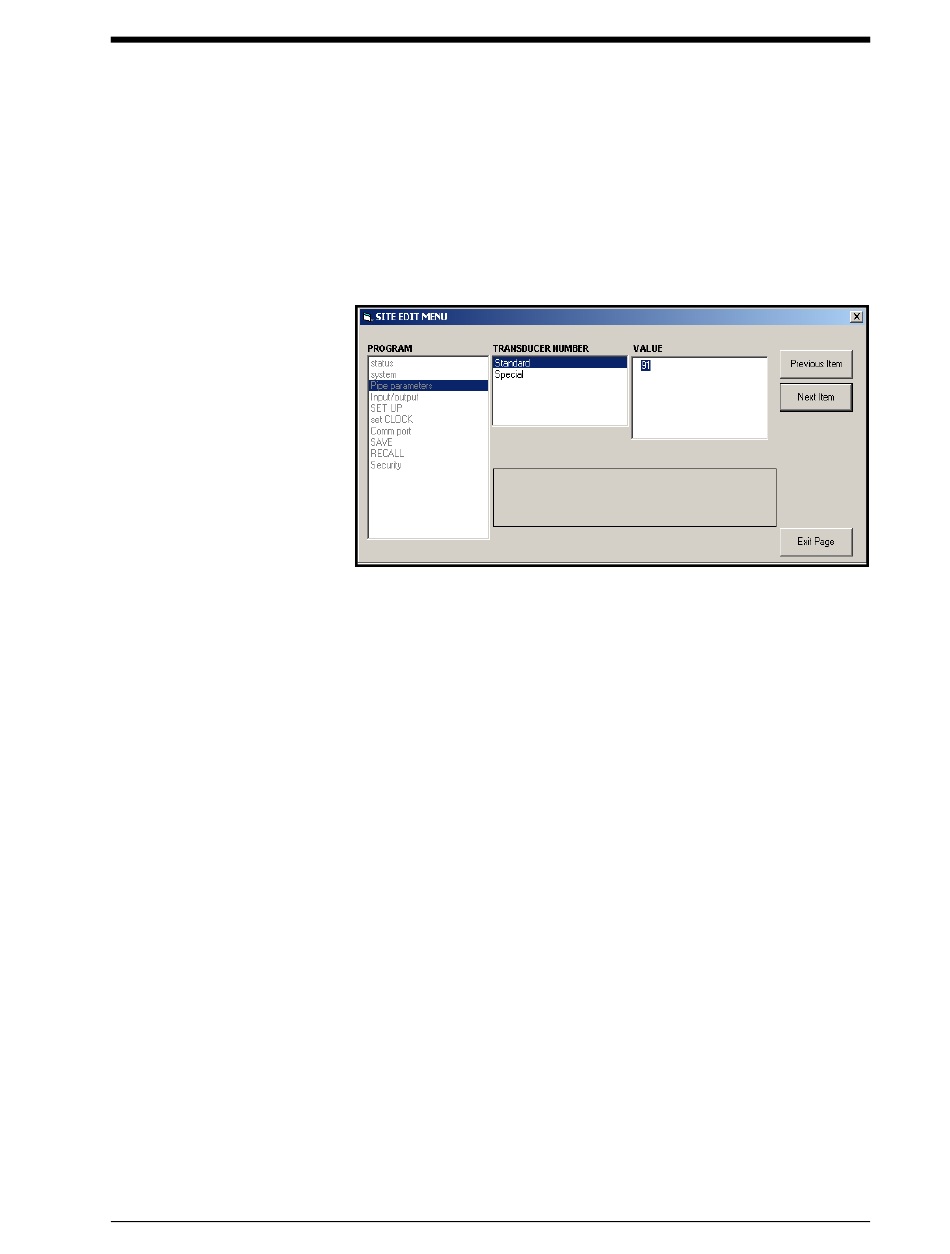

Figure C-21: Pipe Parameters Option in the Site Edit Menu
c. Do one of the following:
[Next Item]
Click on
[Previous Item]
Click on
previous item.
Note: If you click on either
changing the settings, the current settings remain unchanged.
As you step through the menu, the bottom panel lists the current
settings you have modified or left unchanged (see Figure C-22 on
page C-18). If you modify or step through more than five items, a
scroll bar at the right of the panel lets you review the earlier settings.
to proceed to the next menu item,
or
to return back through the menu to a
[Next Item]
[Previous Item]
or
April 2008
without
C-17
