External mounting
of display
Connection of
brake resistors
Connection of
option cards
146

Accessories

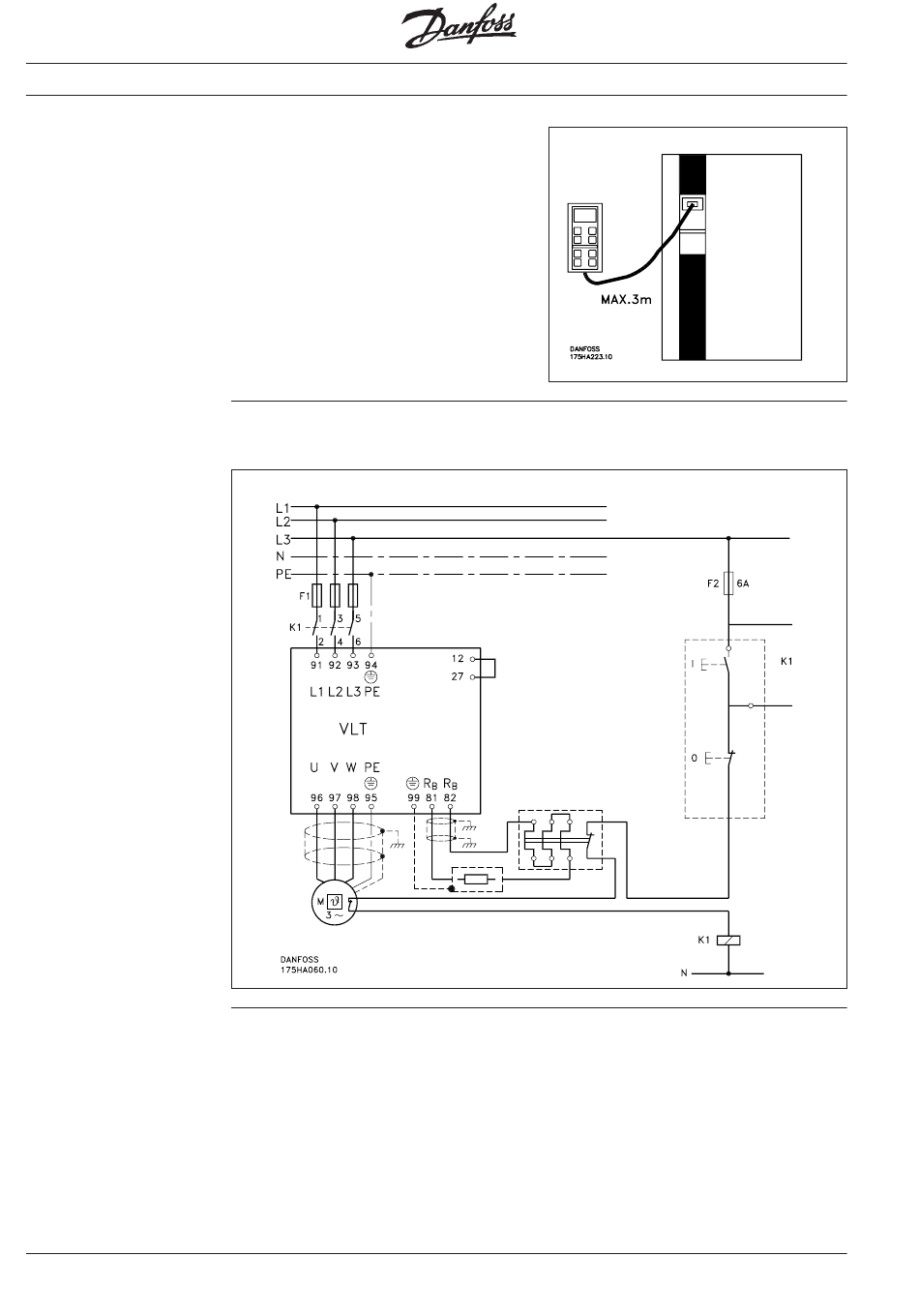

The control panel can be mounted
externally using an optional adaptor and
cable.
The length of the cable is 3 metres, which
is enough to mount the control panel in a
cabinet cover.
The enclosure at the cabinet cover is IP 54.
Danfoss can supply brake resistors suiting
every size of VLT frequency converters.
®
Connection of the brake resistor
Beside the control card of the VLT
frequency converter you will see a free
space.
This space is used for option cards.
Mount the option card using the groove in
the right-hand side of the aluminium tray,
and the two screws.
®
MG.30.A7.02 - VLT is a registered Danfoss trademark
® The electrical connection between the
option card and the standard control card
is done by means of the plugs FK1 - FK4.
The number of option cards is increasing
and the functions of specific option cards
will be described in a separate manual.
