Example 4:
Connection examples

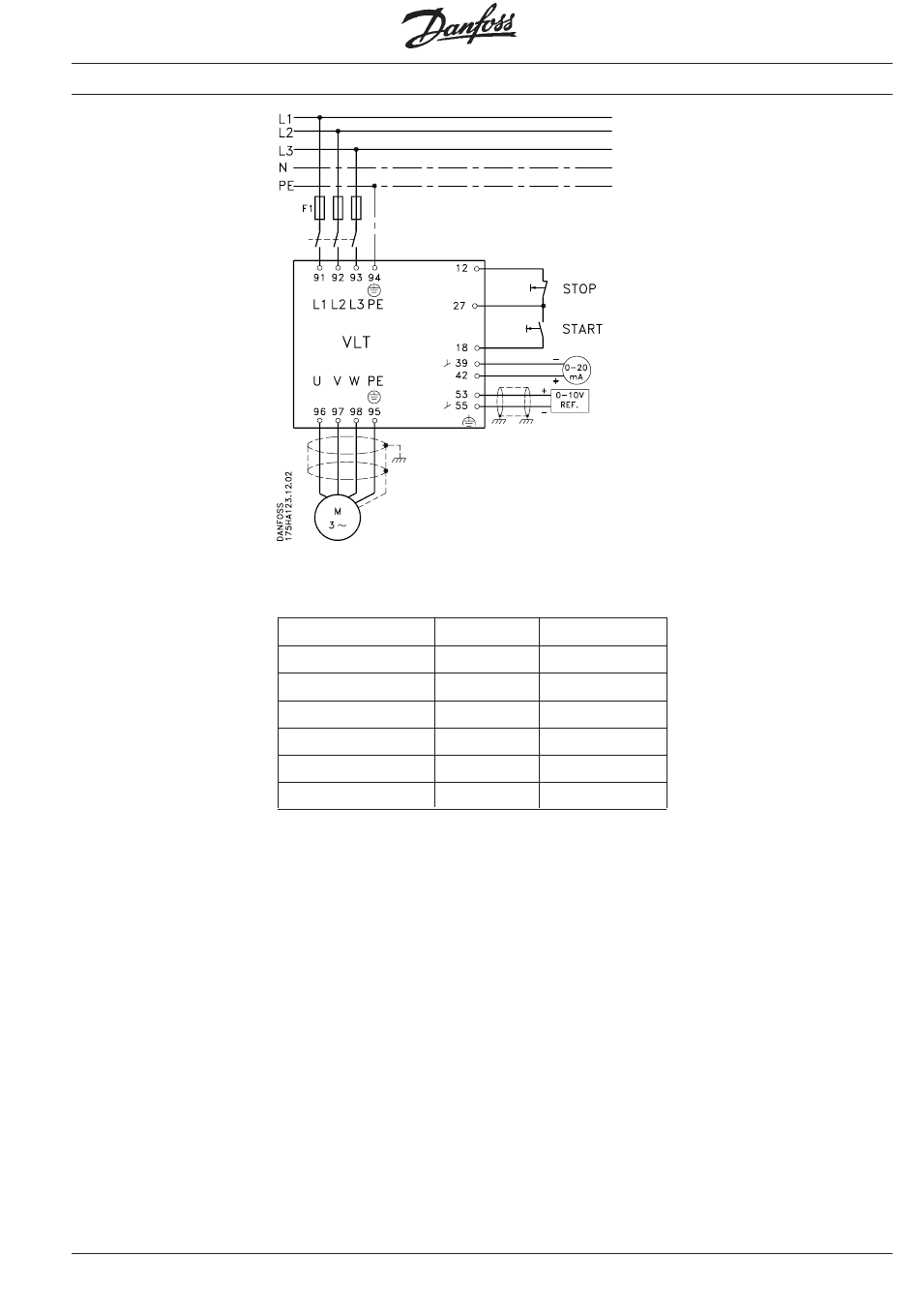

3 conductor START/STOP, 0-20 mA output signal ~ (0-I
0-10 V Reference: ~ 0-100% speed
The following must be programmed:
Function Parameter no.
STOP
START
0-I ~ 0-20 mA
MAX
Ref. 0-10 V
®
MG.30.A7.02 - VLT is a registered Danfoss trademark
NB: Screen for control cables must be
connected as described in the chapter on
EMC-correct installation.
All settings are based on factory settings, but
motor data (parameters 103-105) must be set
according to the motor connected.
Parameter value
404 STOP
402 Latched START
407 0-I
MAX
412 0-10 V
),
MAX
