Mains and motor
connection for
®
VLT types 3002-3052
46

Connection of VLT

®
The max. cable cross-section and equiva-
lent max. length and terminal size are
shown in the technical data section, pp.
25-29.

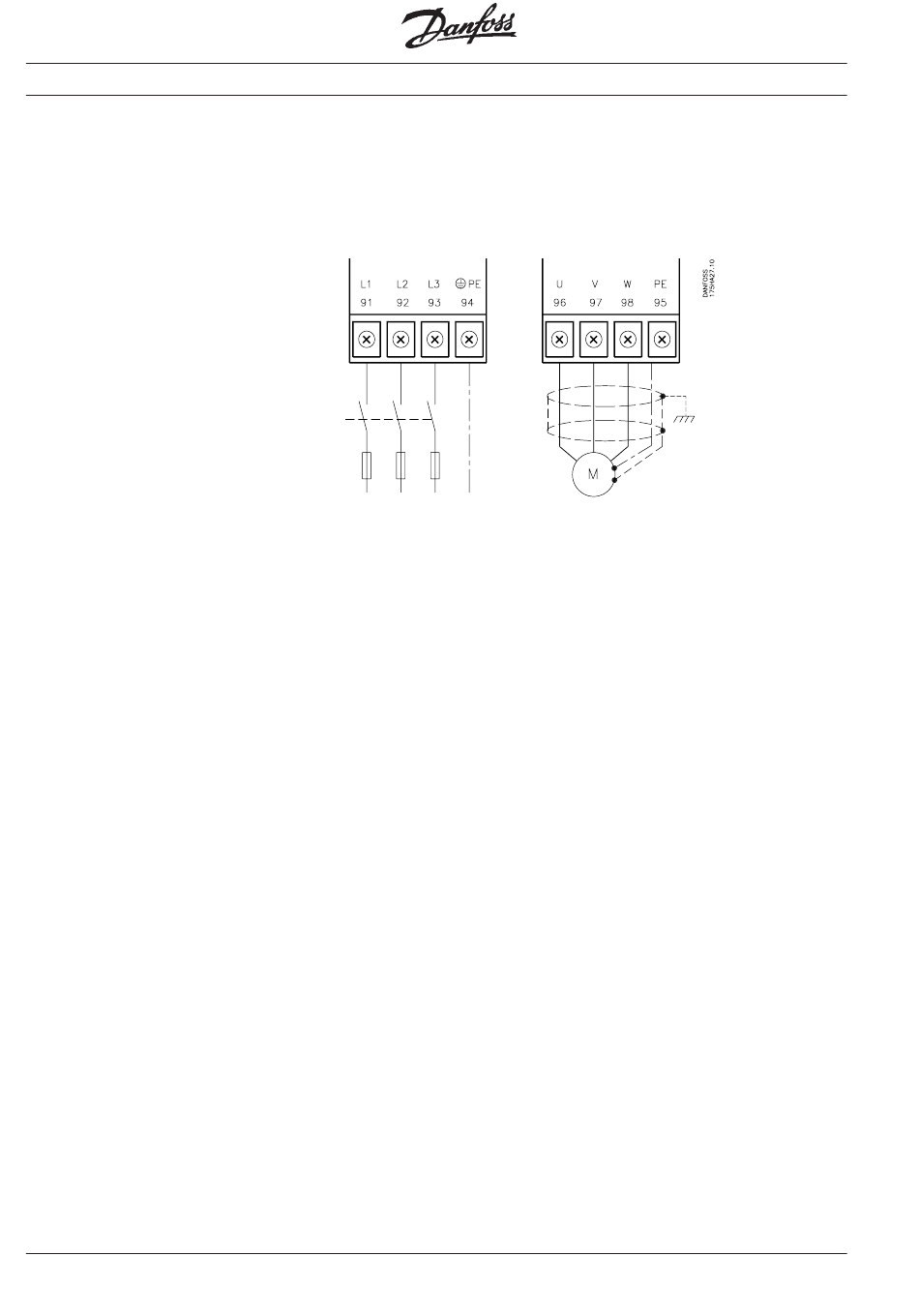

The mains supply and the motor are
connected in accordance with the drawing
below.
Mains
®
MG.30.A7.02 - VLT is a registered Danfoss trademark
Motor
