Introduction

1 Introduction
1 1

1.1 Product Overview

1.1.1 Interior Views
1
15
13
(IP 21/54
NEMA 1/12)

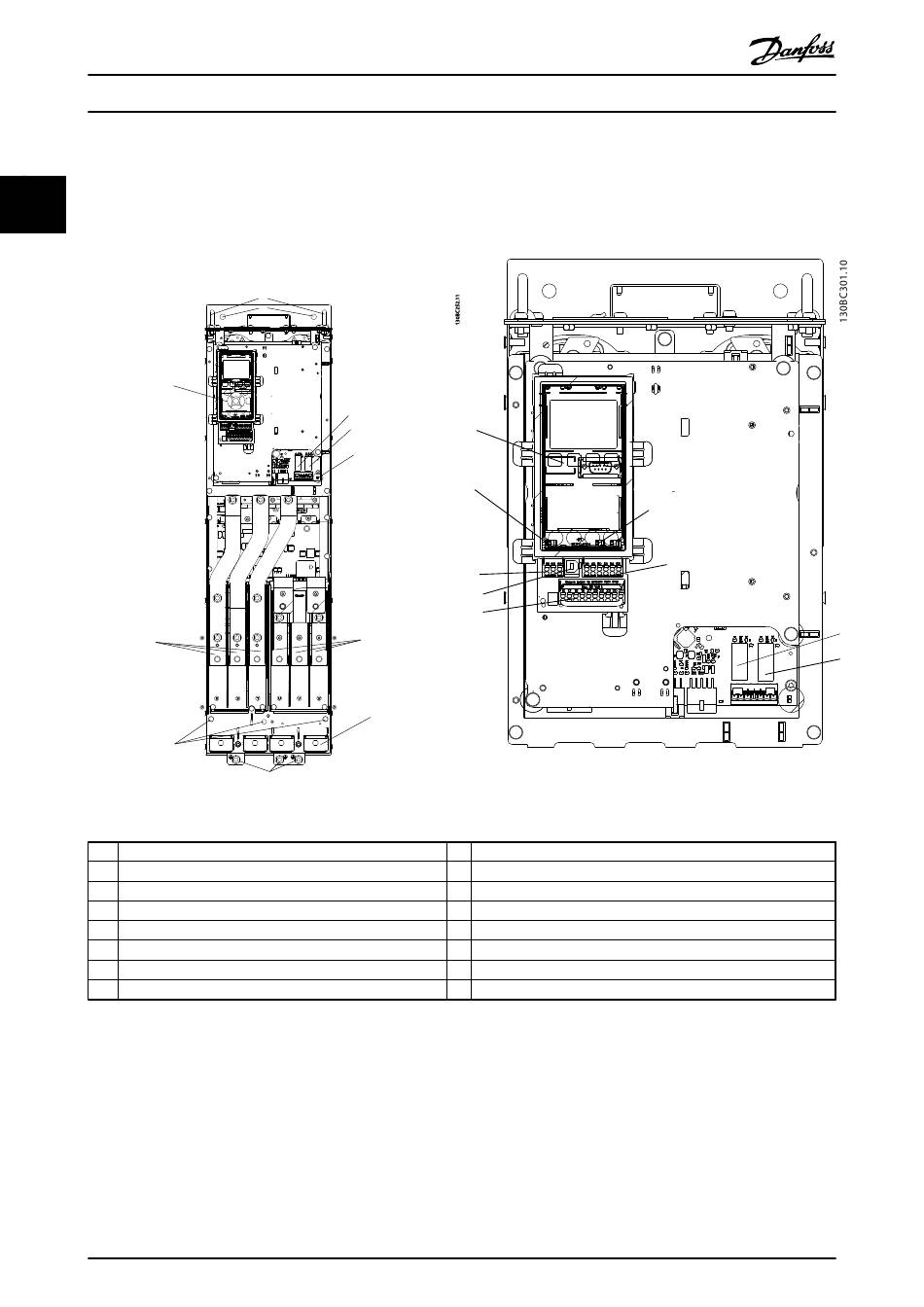

Illustration 1.1 D1 Interior Components
1 LCP (Local Control Panel)
2 RS-485 serial bus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Serial bus terminal switch
7 Analog switches (A53), (A54)
8 Relay 1 (01, 02, 03)
Table 1.1
NOTE
For location of TB6 (terminal block for contactor), see
2.4.3.2 Terminal Locations: D5h-D8h.
4
®
VLT Automation Drive D-Frame
Operating Instructions
10
11
8
9
16
14
12
13 (IP 20/Chassis)
®
MG34U202 - VLT is a registered Danfoss trademark
1
6
2
5
3
Illustration 1.2 Close-up View: LCP and Control Functions
9 Relay 2 (04, 05, 06)
10 Lifting ring
11 Mounting slot
12 Cable clamp (PE)
13 Earth (ground)
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
16 TB5 (IP21/54 only). Terminal block for anti-condensation heater

1.1.2 Extended Options Cabinets

If a frequency converter is ordered with one of the
following options, it is supplied with an options cabinet
that makes it taller.
•
Brake chopper
•
Mains disconnect
7
4
8
9
