18.5 Interface box

Dimensions (length x width x height)
Weight
Data acquisition frequency
Resolution
Operating temperature range
Storage temperature range
Relative humidity
Connection to PC
Power
Power consumption
Protection class
IP code
RS-PRD-00562-016

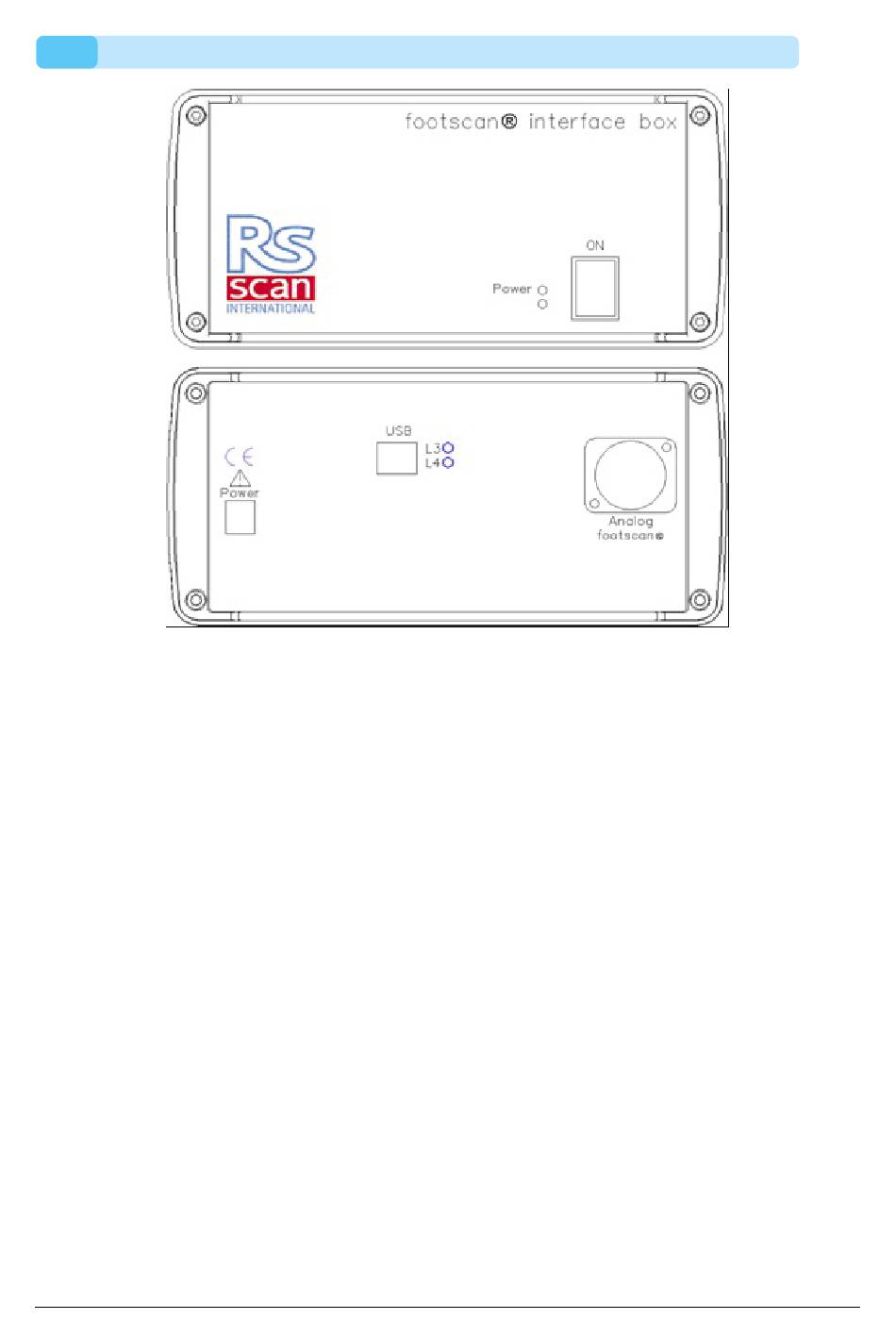

Figure 102:
Interface box
220mm x 190mm x 94mm
2.2kg
Up to 500Hz
12bits
+15 °C to +30 °C
+0 °C to +40 °C
20% to 80% non-condensing
USB2.0 (standard USB cable A-B 5m)
12V DC
with footscan 0.5m plate: 8.24W
with footscan 1m plate: 10.95W
with footscan 2m plate: 13.65W
I
IP40
®
®
®
171
