10.10 Zones

®
Footscan 9 automatically recognizes feet when recording the dynamic measurement
(Chapter 9). During feet detection the application determines the location of ten
anatomical zones. Some analyses need these zones to compute parameters, such as
the foot axes.

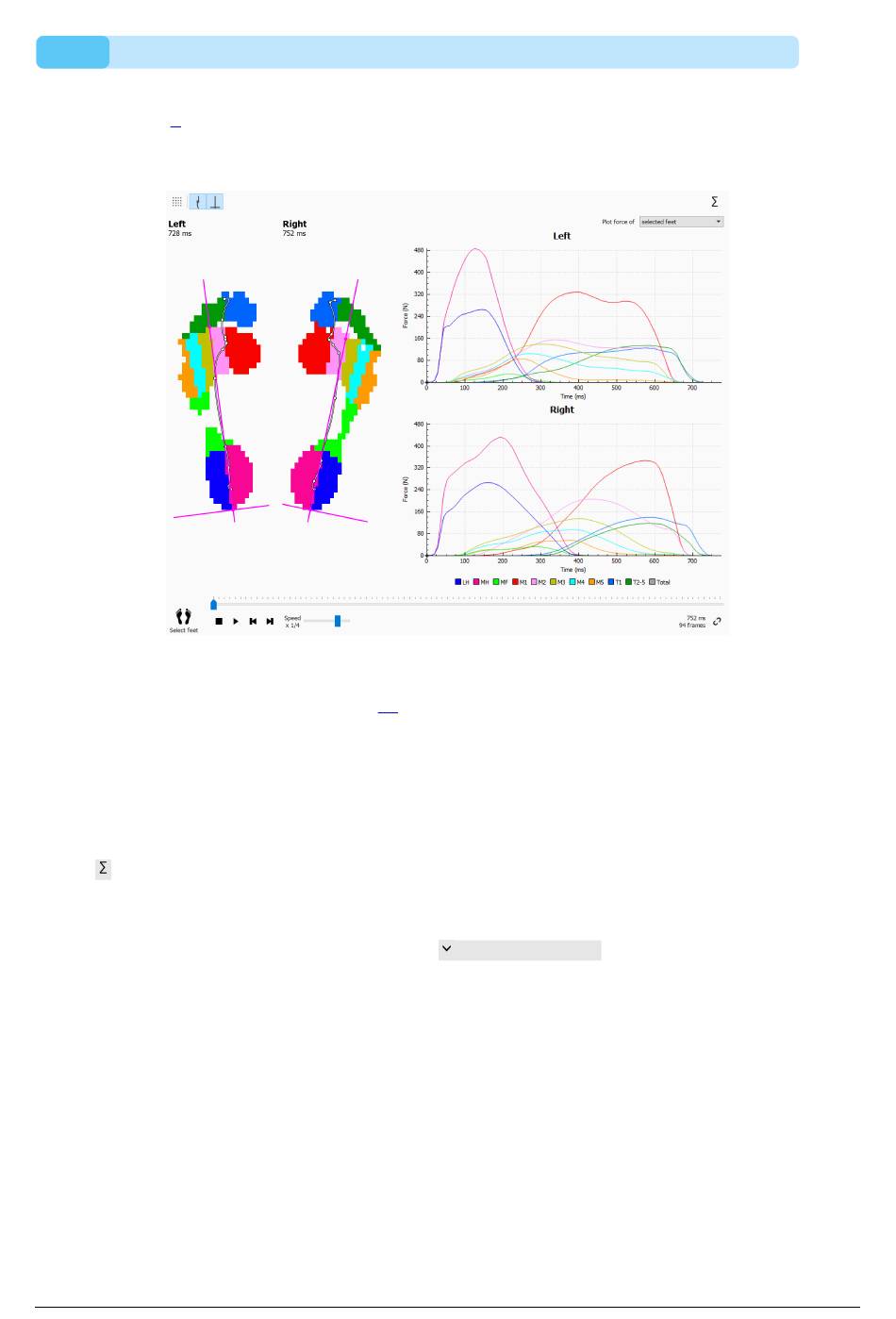

Figure 47:
The Zones analysis displays the ten anatomical zones of the current foot
selection.
The Zones analysis screen (Figure 47) is divided into two main parts. On the left side of
the screen, the selected left and right foot are shown, divided into the ten anatomical
zones. The analysis also draws the center-of-pressure and foot axes on top of the
zones. The graphs, plotting the applied force per zone progression during the roll-off,
make up the right part of the screen. The legend at the bottom depicts the color
associated with each zone.
Alongside the ten zones, the total of all the zones can also be plotted by clicking on the
button.
Additionally, you can select if you want to plot only the selected left and right foot, the
average of all measured left and right feet, or a combination of both the selected and
average feet by changing the option in the Select force graph dropdown list. The
selected left and right foot are displayed as solid lines in the graphs, while the average
of all measured left and right feet are displayed as dotted lines in the graphs. When
only the selected left and right foot are plotted, the absolute roll-off time (milliseconds)
is used. When averaging, the roll-offs are rescaled and the roll-off progression is shown
as a relative timing (percentage).
When played, the analysis shows the activity of each zone during the roll-off. Vertical
lines mark the roll-off progress in the graphs.
