Chapter 12
™
Design Screen - Phits
The RS Print wizard calculates and proposes the design of the insoles based on the
subject-specific plantar pressure measurements. The underlying mathematical
algorithms use the average dynamic pressure profile of each footprint to calculate the
foot-specific properties and consequently the foot-specific insole designs. The insole
the user is in full
designs are then proposed to the user in the design wizard, but
control of the application and is free to modify the proposed design in any way
based on his own expertise and/or experience(s) with the subject.
The mathematical calculation of the RS Print application is only a proposal, the
user is fully responsible for the design of the insoles.
To start the design of the insole, click the design tab in the menu bar. A wizard will
appear on the right hand side of the screen, as illustrated in Figure 69. As the design
wizard only occupies the right side of the screen, interaction with the analysis tools
during the insole design is possible. This way, when the user proceeds through the
design steps, the user is still able to consult all the available data.

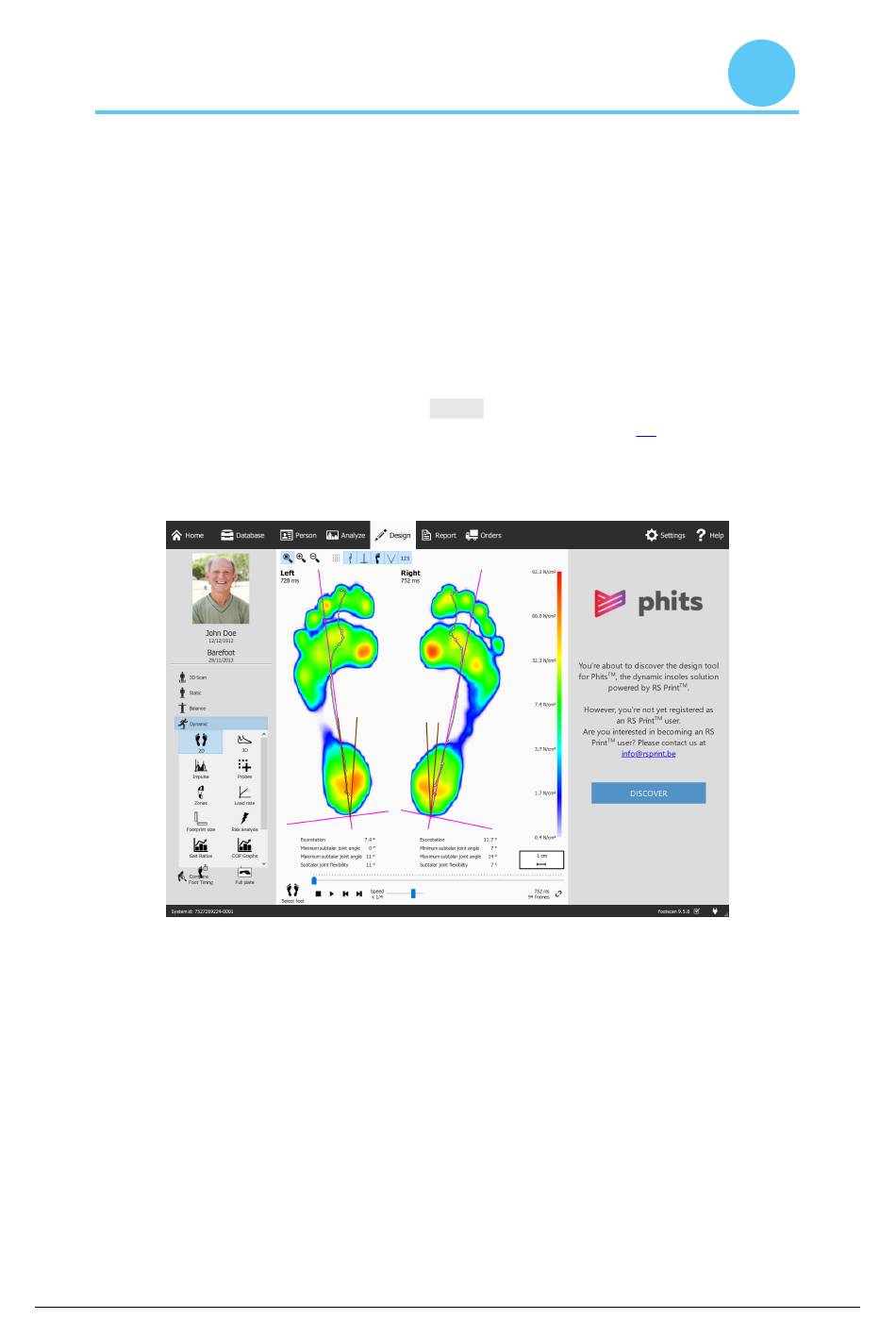

Figure 69:
Screen with the data visualization on the left side and the RS Print insole
design wizard on the right side.
