18.4 Entry Level 1.5m plate

Dimensions (length x width x height)
Weight
Number of sensors
Sensor dimensions
Active sensor area
Sensor technology
Pressure range
Data acquisition frequency
Resolution
Operating temperature range
Storage temperature range
Relative humidity
Connection to PC
Plate cable length
Power consumption
Protection class
IP code
RS-PRD-00562-016

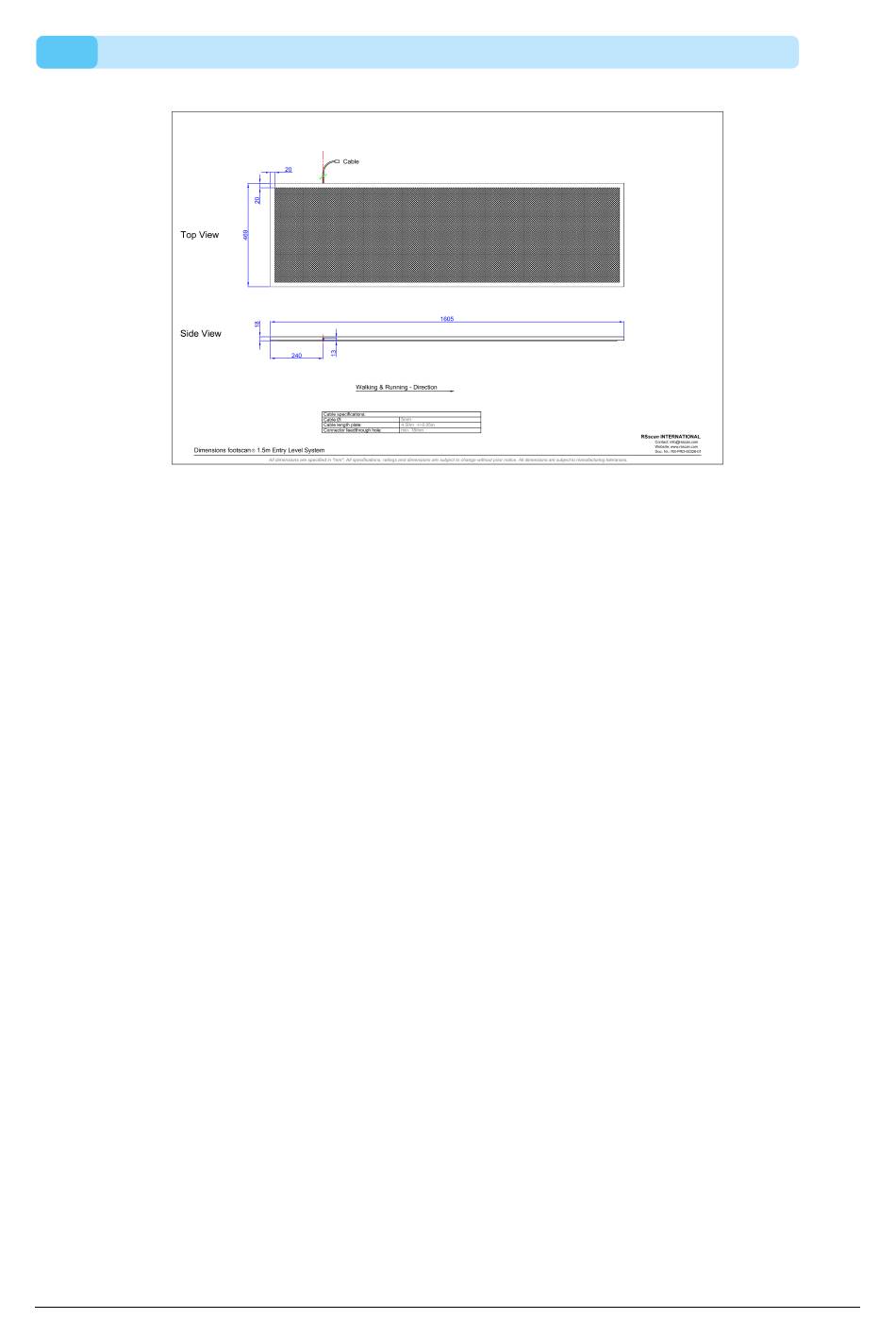

Figure 101:
Dimensions entry level 1.5m plate
1605mm x 469 mm x 18mm
24kg
12288 (arranged in a 192x64 matrix)
7.62mm x 5.08mm
1463mm x 325mm
resistive
N
1-127 /
2
CM
200Hz
10bits
+15 °C to +30 °C
+0 °C to +40 °C
20% to 80% non-condensing
USB2.0
4600mm ± 50mm (detachable cable)
5V @ 500mA maximum
I
IP40
170
