Design Screen - D3D
The D3D analysis proposes an orthotic support based on the current dynamic
measurement. D3D stands for Dynamic three-Dimensional. It is the result of years of
extensive pressure measurement research by rs scan.
The D3D analysis needs at least two left and/or right feet to make a reliable
proposal.
An assembled D3D orthotic support consists of a base part, correction elements and a
top cover. The D3D proposal addresses all of these aspects in the D3D wizard. To start
the D3D wizard, click the design tab in the menu bar. You may need to enable the D3D
design wizard in the settings dialog. A wizard will appear on the right hand side of the
screen, as illustrated in Figure 60. As the D3D wizard only occupies the right side of the
screen, interaction with the analysis tools during the D3D wizard is possible. This way,
when the user proceeds through the wizard steps, the user is still able to consult all the
available data.

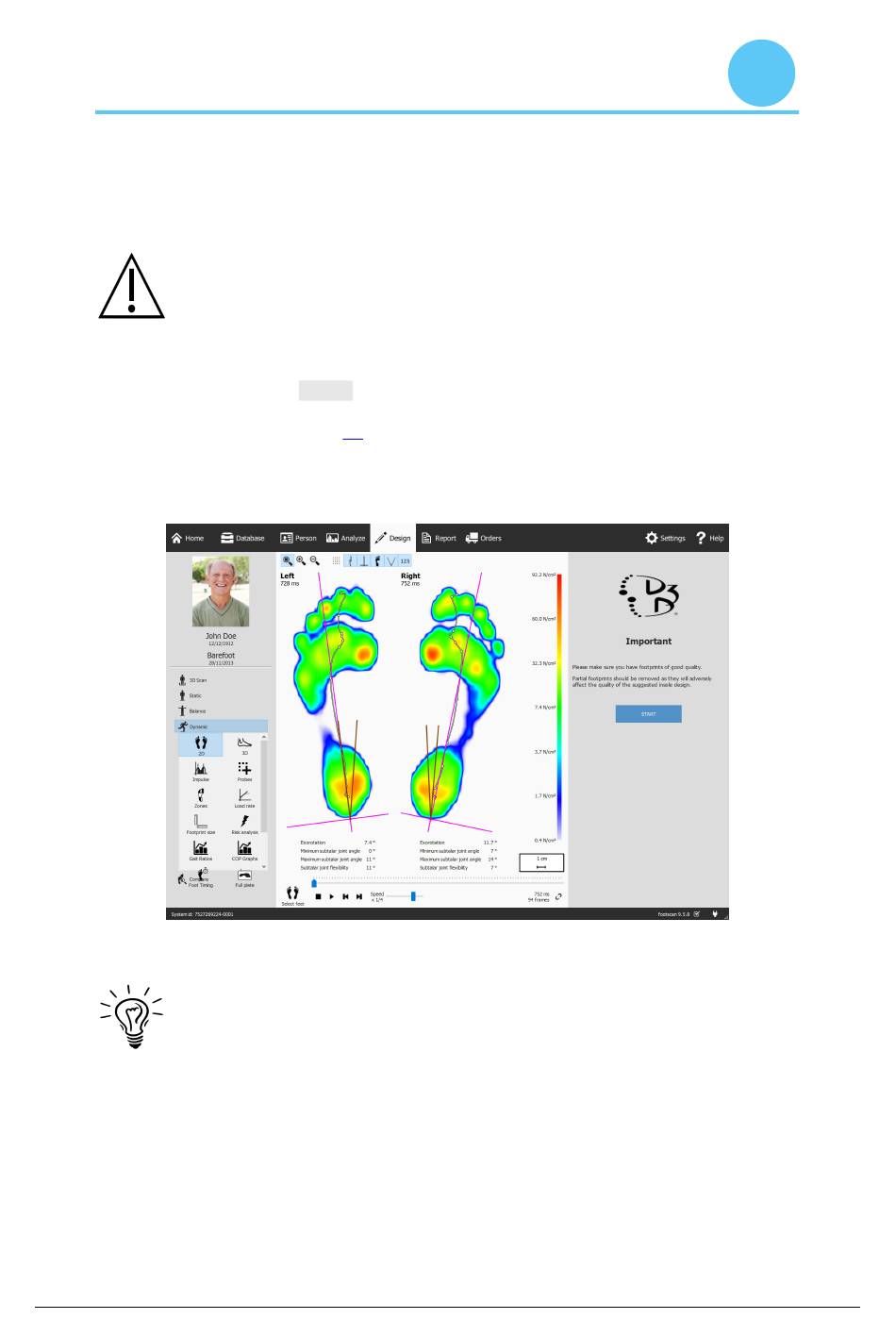

Figure 60:
Screen with the data visualization on the left side and the D3D wizard on the
Some D3D choices might affect others, e.g. some base parts do not need a
top cover. In that case the D3D analysis restores affected options to their
default values. As a general rule of thumb to avoid this situation, review D3D
parameters from top to bottom, one stage after another.
RS-PRD-00562-016
right side.
