10.16 Center of pressure graphs

The center of pressure graphs are available in the Clinical, Scientific
package(s).
The center of pressure graphs (Figure 53) shows the distance between the center of
pressure and the foot axis. The distance is defined as the mediolateral (x) component of
the center of pressure expressed in foot axis coordinates.

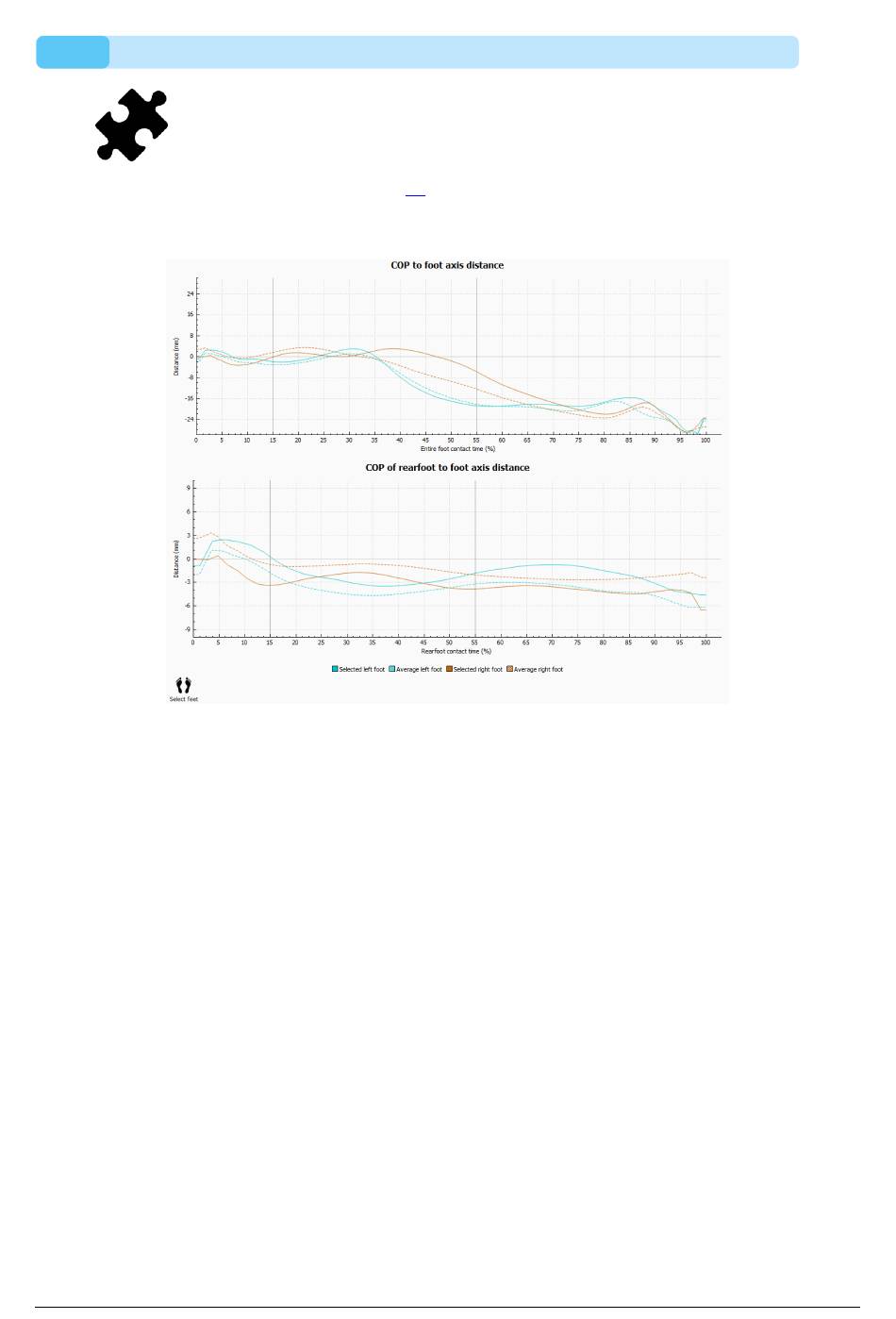

Figure 53:
The center of pressure graphs screen.
The distance between the center of pressure (COP) and the foot axis are measured.
Each graph depicts the COP to foot axis distance for the selected feet (left and/or right)
and the average distance for all measured left and/or rigt feet. Graphs are plotted in
time relative to the duration of the measured components.
COP to foot axis distance
The center of pressure of the entire foot is considered. The time is relative to the entire
foot contact duration.
COP of rearfoot to foot axis distance
The center of pressure of the rearfoot area only is considered. The time is relative to the
rearfoot contact duration.
