18.2 Entry Level 1m plate

Dimensions (length x width x height)
Weight
Number of sensors
Sensor dimensions
Active sensor area
Sensor technology
Pressure range
Data acquisition frequency
Resolution
Operating temperature range
Storage temperature range
Relative humidity
Connection to PC
Plate cable length
Power consumption
Protection class
IP code
RS-PRD-00562-016

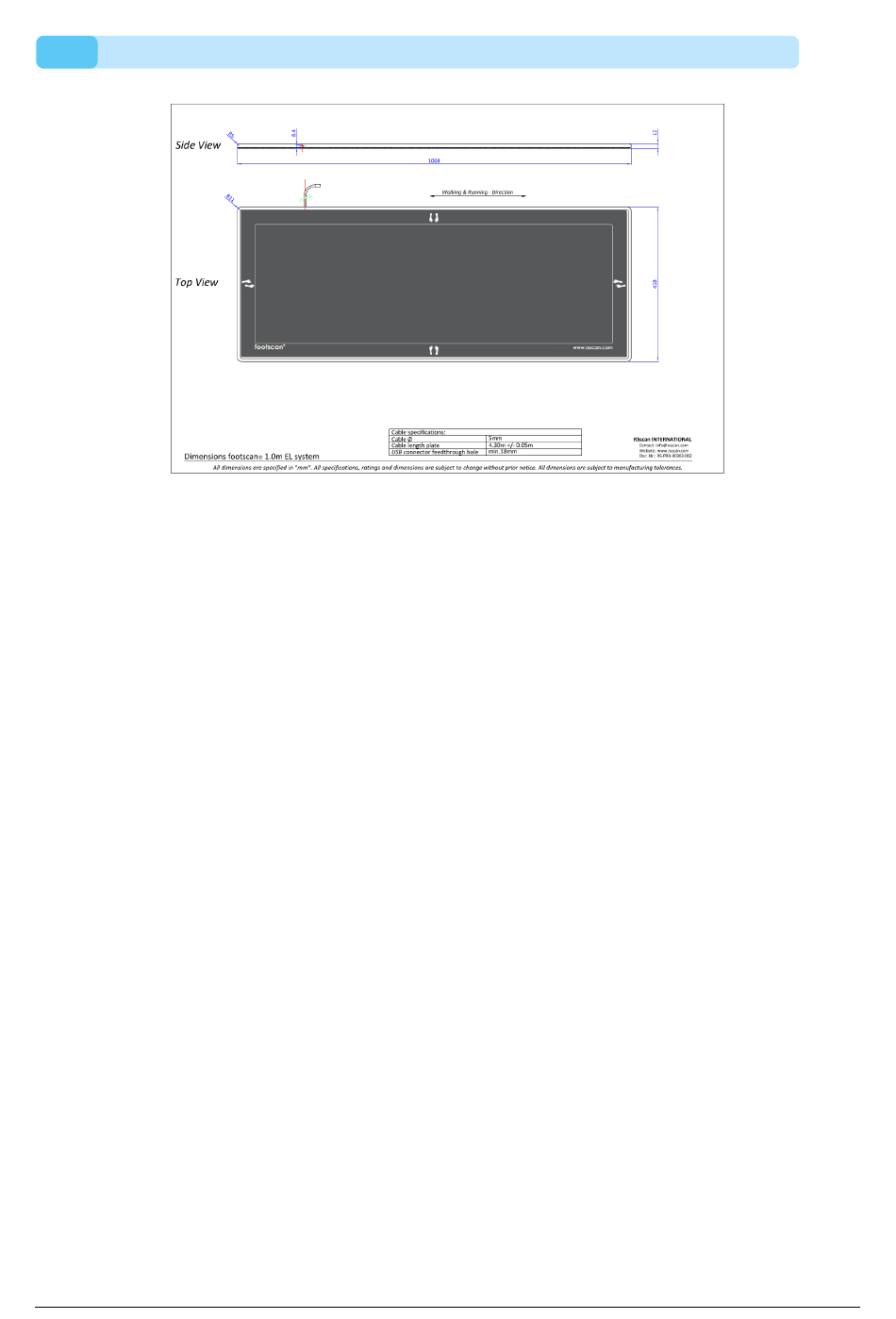

Figure 99:
Dimensions entry level 1m plate
1068mm x 418 mm x 12mm
8.3kg
8192 (arranged in a 128x64 matrix)
7.62mm x 5.08mm
975mm x 325mm
resistive
N
1-127 /
2
CM
200Hz
10bits
+15 °C to +30 °C
+0 °C to +40 °C
20% to 80% non-condensing
USB2.0
4300mm ± 50mm (integrated cable)
5V @ 500mA maximum
I
IP40
168
