Chapter 1: Transceiver Architecture in Stratix IV Devices

Calibration Blocks

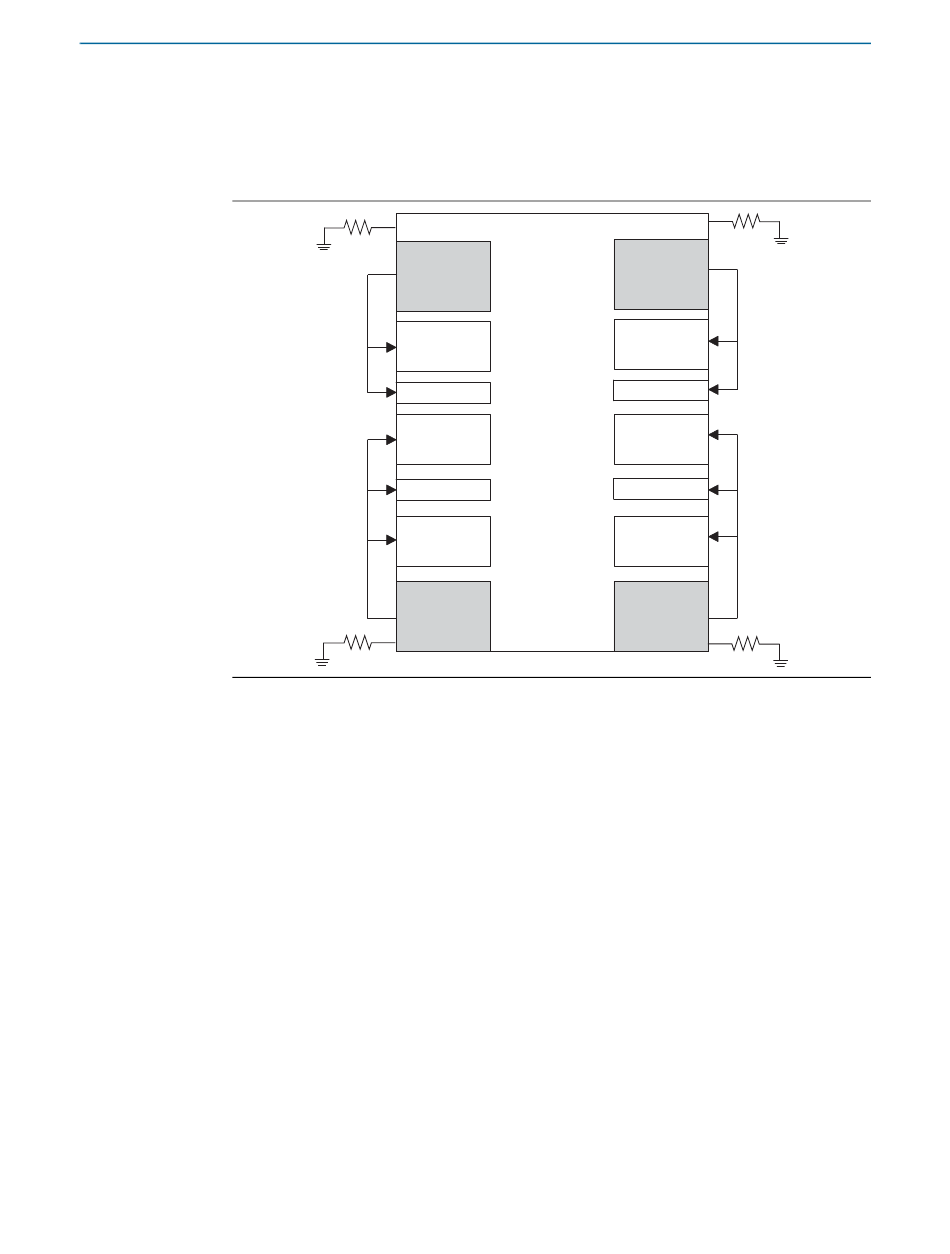

Figure 1–169

transceiver blocks each on the left and right side and two ATX PLL blocks on each

Figure 1–169. Calibration Block Locations in Stratix IV GX Devices Other than 230K and 530K

with Three Transceiver Blocks (on Each Side)

September 2015 Altera Corporation

shows Stratix IV GX devices other than 230K and 530K that have three
