Handling the
Board
Altera Corporation
April 2012

Block Diagram

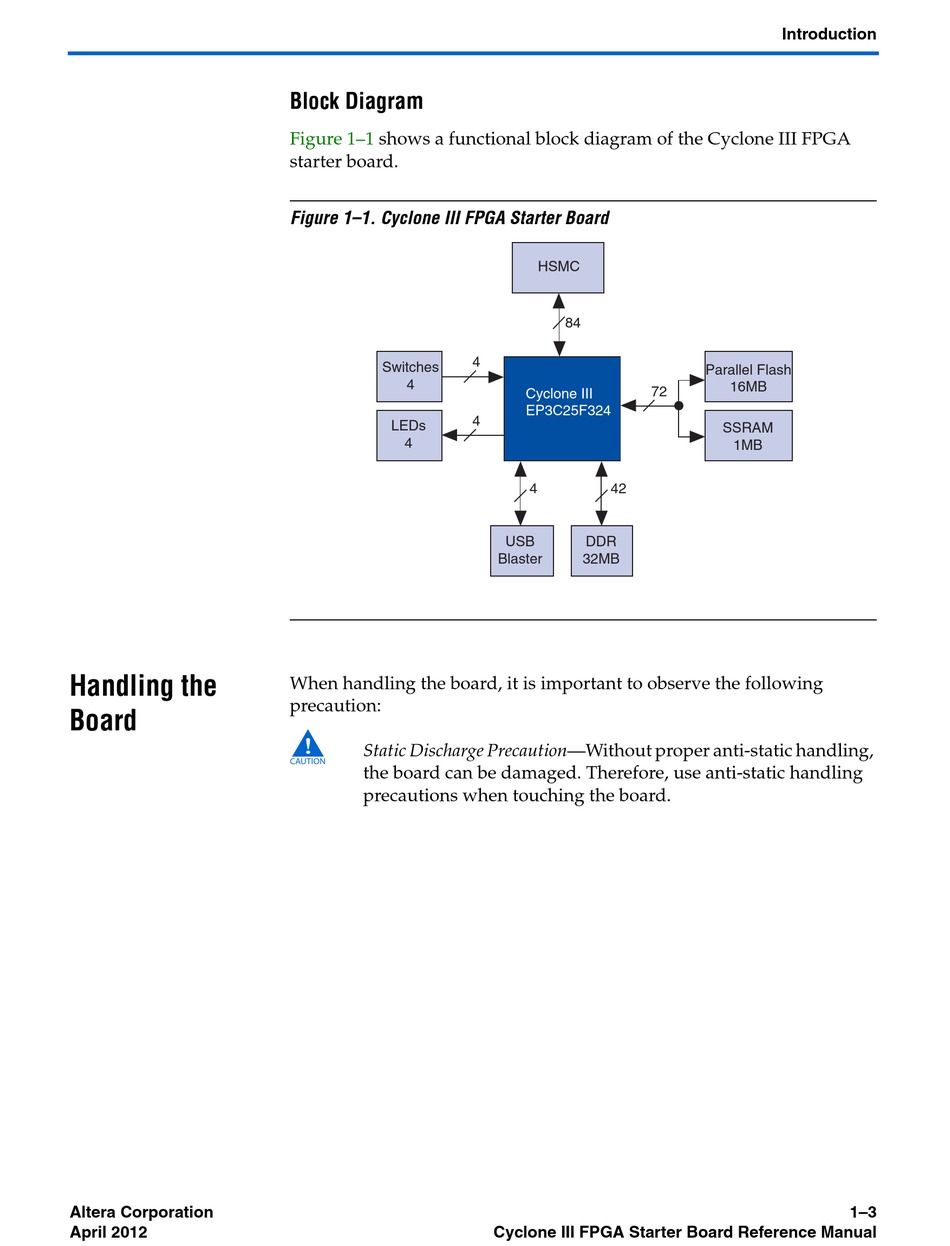

Figure 1–1 shows a functional block diagram of the Cyclone III FPGA
starter board.
Figure 1–1. Cyclone III FPGA Starter Board
Switches
4
LEDs
4
When handling the board, it is important to observe the following
precaution:
c
Static Discharge Precaution—Without proper anti-static handling,
the board can be damaged. Therefore, use anti-static handling
precautions when touching the board.
HSMC
84
4
Cyclone III
EP3C25F324
4
4 42
USB DDR
Blaster 32MB
Cyclone III FPGA Starter Board Reference Manual
Introduction
Parallel Flash
16MB
72
SSRAM
1MB
1–3
