Block Diagram

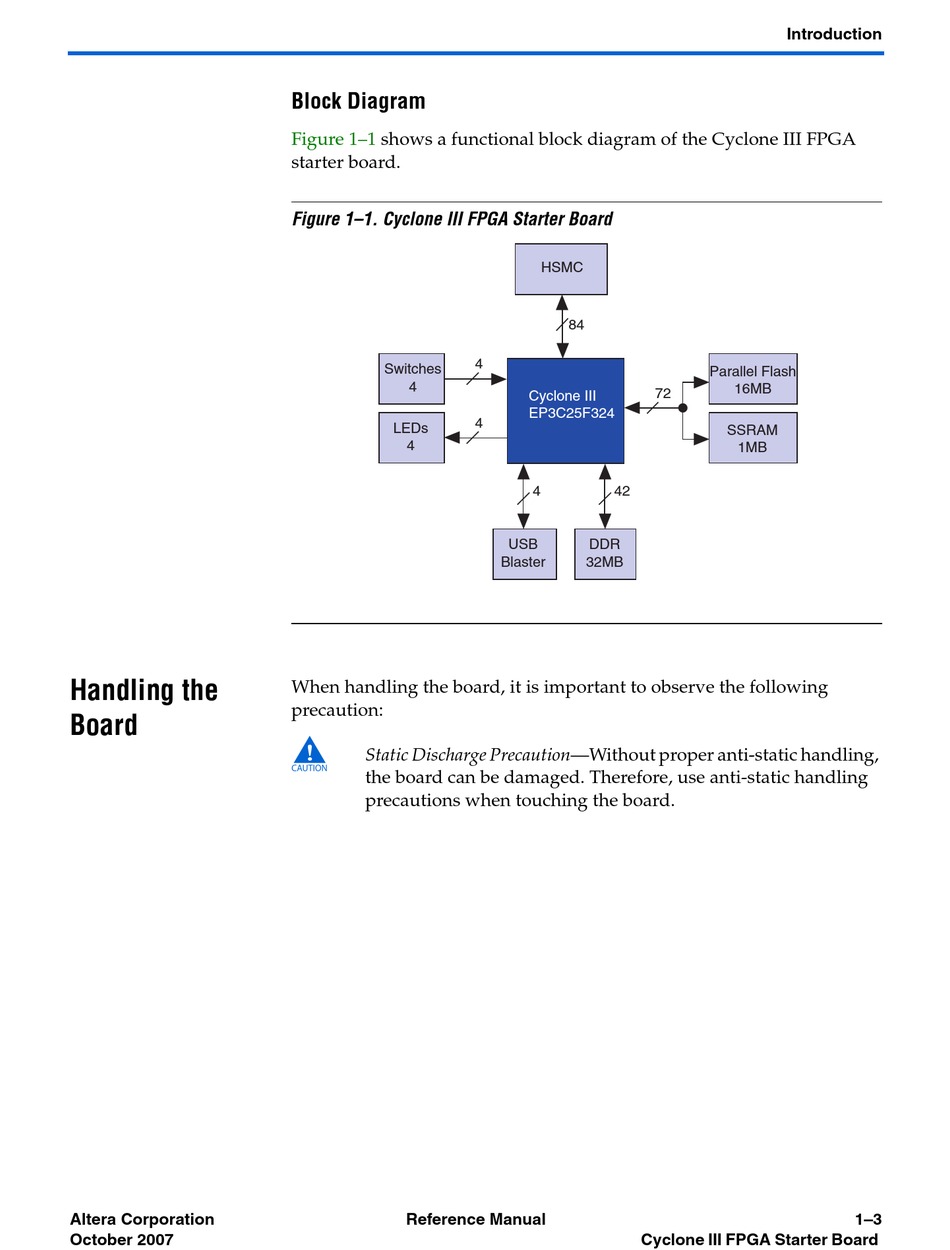

Figure 1–1 shows a functional block diagram of the Cyclone III FPGA
starter board.
Figure 1–1. Cyclone III FPGA Starter Board
Switches
4
LEDs
4
When handling the board, it is important to observe the following
precaution:
c
Static Discharge Precaution—Without proper anti-static handling,
the board can be damaged. Therefore, use anti-static handling
precautions when touching the board.
