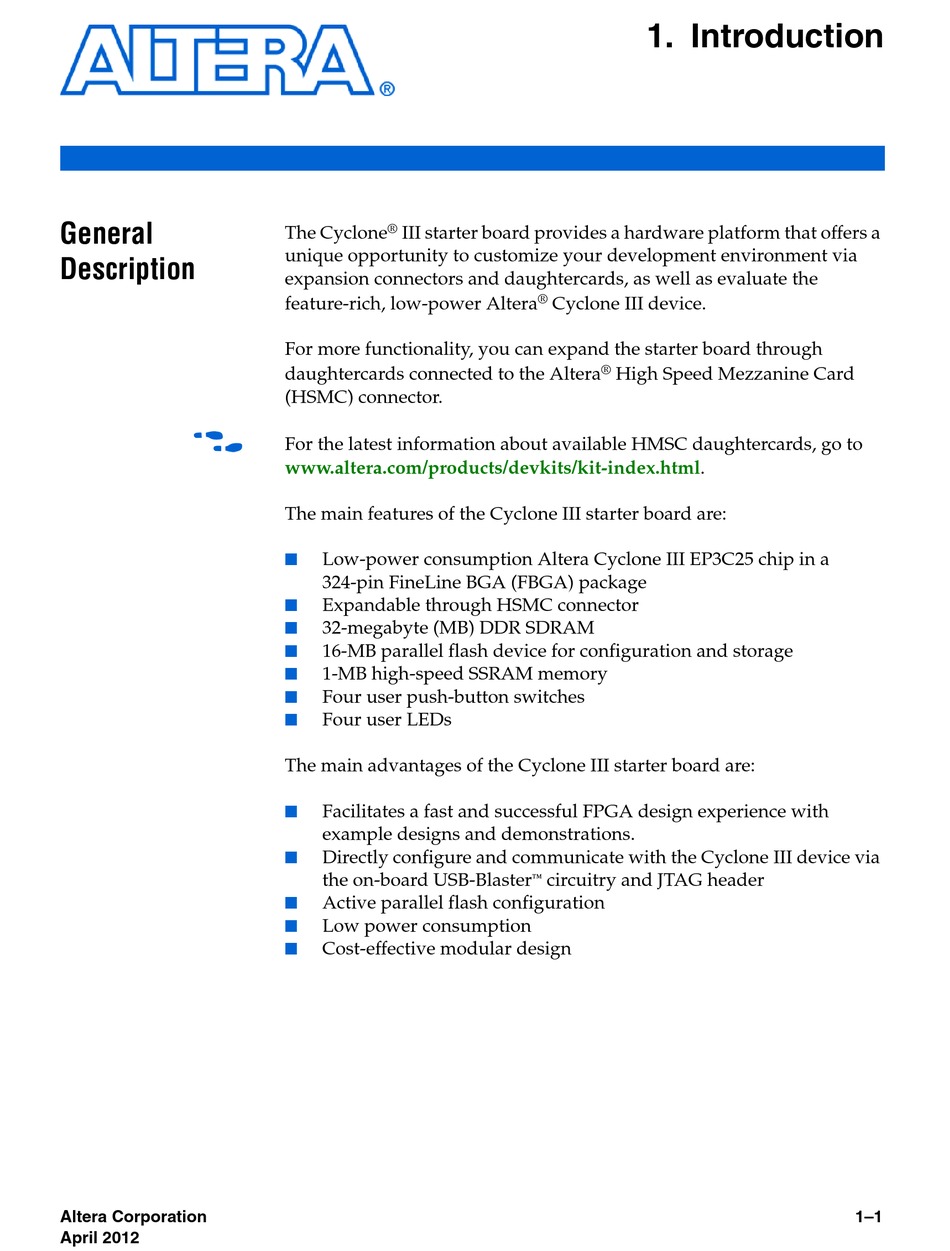

Chapter 1. Introduction; General Description - Altera Cyclone III Reference Manual

General
Description
f
Altera Corporation
April 2012
®
The Cyclone III starter board provides a hardware platform that offers a
unique opportunity to customize your development environment via
expansion connectors and daughtercards, as well as evaluate the
feature-rich, low-power Altera
For more functionality, you can expand the starter board through
daughtercards connected to the Altera
(HSMC) connector.
For the latest information about available HMSC daughtercards, go to
www.altera.com/products/devkits/kit-index.html.
The main features of the Cyclone III starter board are:
■
Low-power consumption Altera Cyclone III EP3C25 chip in a
324-pin FineLine BGA (FBGA) package
■
Expandable through HSMC connector
■
32-megabyte (MB) DDR SDRAM
■
16-MB parallel flash device for configuration and storage
■
1-MB high-speed SSRAM memory
■
Four user push-button switches
■
Four user LEDs
The main advantages of the Cyclone III starter board are:
■
Facilitates a fast and successful FPGA design experience with
example designs and demonstrations.
■
Directly configure and communicate with the Cyclone III device via
the on-board USB-Blaster
■
Active parallel flash configuration
■
Low power consumption
■
Cost-effective modular design
1. Introduction
®
Cyclone III device.
®
High Speed Mezzanine Card
circuitry and JTAG header
™
1–1
Preliminary
