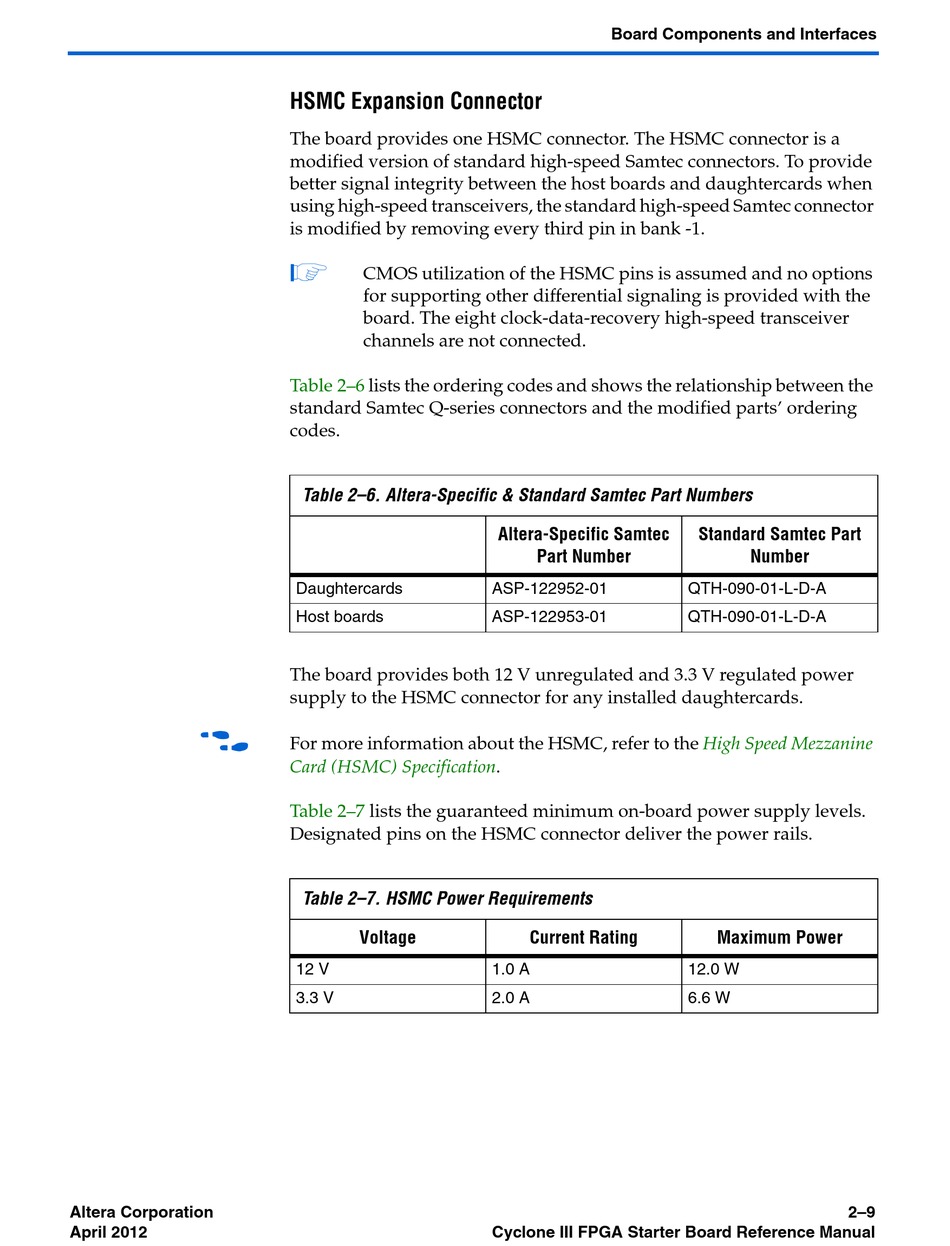

HSMC Expansion Connector

The board provides one HSMC connector. The HSMC connector is a
modified version of standard high-speed Samtec connectors. To provide
better signal integrity between the host boards and daughtercards when
using high-speed transceivers, the standard high-speed Samtec connector
is modified by removing every third pin in bank -1.
1
CMOS utilization of the HSMC pins is assumed and no options
for supporting other differential signaling is provided with the
board. The eight clock-data-recovery high-speed transceiver
channels are not connected.
Table 2–6 lists the ordering codes and shows the relationship between the
standard Samtec Q-series connectors and the modified parts' ordering
codes.
Table 2–6. Altera-Specific & Standard Samtec Part Numbers
Daughtercards
Host boards
The board provides both 12 V unregulated and 3.3 V regulated power
supply to the HSMC connector for any installed daughtercards.
For more information about the HSMC, refer to the
Card (HSMC) Specification.
Table 2–7 lists the guaranteed minimum on-board power supply levels.
Designated pins on the HSMC connector deliver the power rails.
Table 2–7. HSMC Power Requirements
Voltage
12 V
3.3 V
Board Components and Interfaces
Altera-Specific Samtec
Part Number
ASP-122952-01
ASP-122953-01
Current Rating
1.0 A
2.0 A
Cyclone III FPGA Starter Board Reference Manual
Standard Samtec Part
Number
QTH-090-01-L-D-A
QTH-090-01-L-D-A
High Speed Mezzanine
Maximum Power
12.0 W
6.6 W
