Note
Some devices leave the factory with customized settings. This personalization may mean the default
configuration is different from the one shown above.
This initial configuration allows you to access the device configuration console through the Telnet IP protocol. Please
carry out the following steps:
• Configure the IP terminal (normally a PC) Ethernet interface with an IP address within the range [192.168.1.2,
192.168.1.254] and with mask 255.255.255.0. E.g. 192.168.1.2, 255.255.255.0.
• Connect the IP terminal Ethernet interface to any of the Regesta-PRO ER B router Ethernet Switch ports (LAN1..2)
through the Ethernet cable (RJ45) provided.
• Initiate a Telnet session from the IP terminal to IP address 192.168.1.1 (Regesta-PRO ER B default address).
• The default configuration does not ask for credentials (user/password) to access the console.

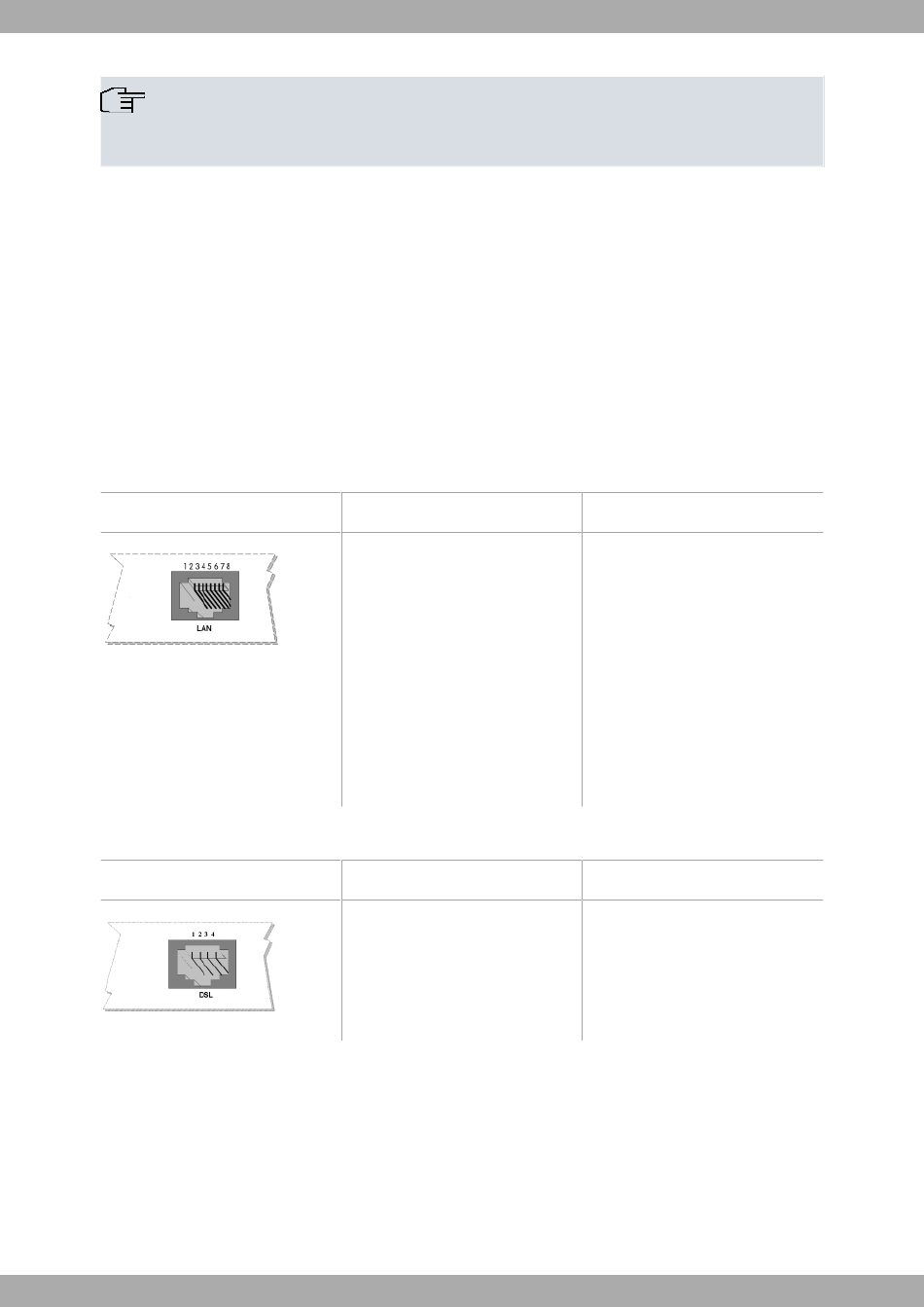

A.4 Connectors

A.4.1 LAN Connector
RJ45 LAN
A.4.2 DSL Connector
RJ11 DSL
Regesta-PRO ER B Router
RJ45 PIN
1
2
3
4
5
6
7
8
RJ11 PIN
1
2
3
4
LAN
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
DSL
Not available
Not available
Not available
Not available
Technical Information
