Teldat Regesta-PRO ER B Installation Manual page 9

Teldat S.A.
router.

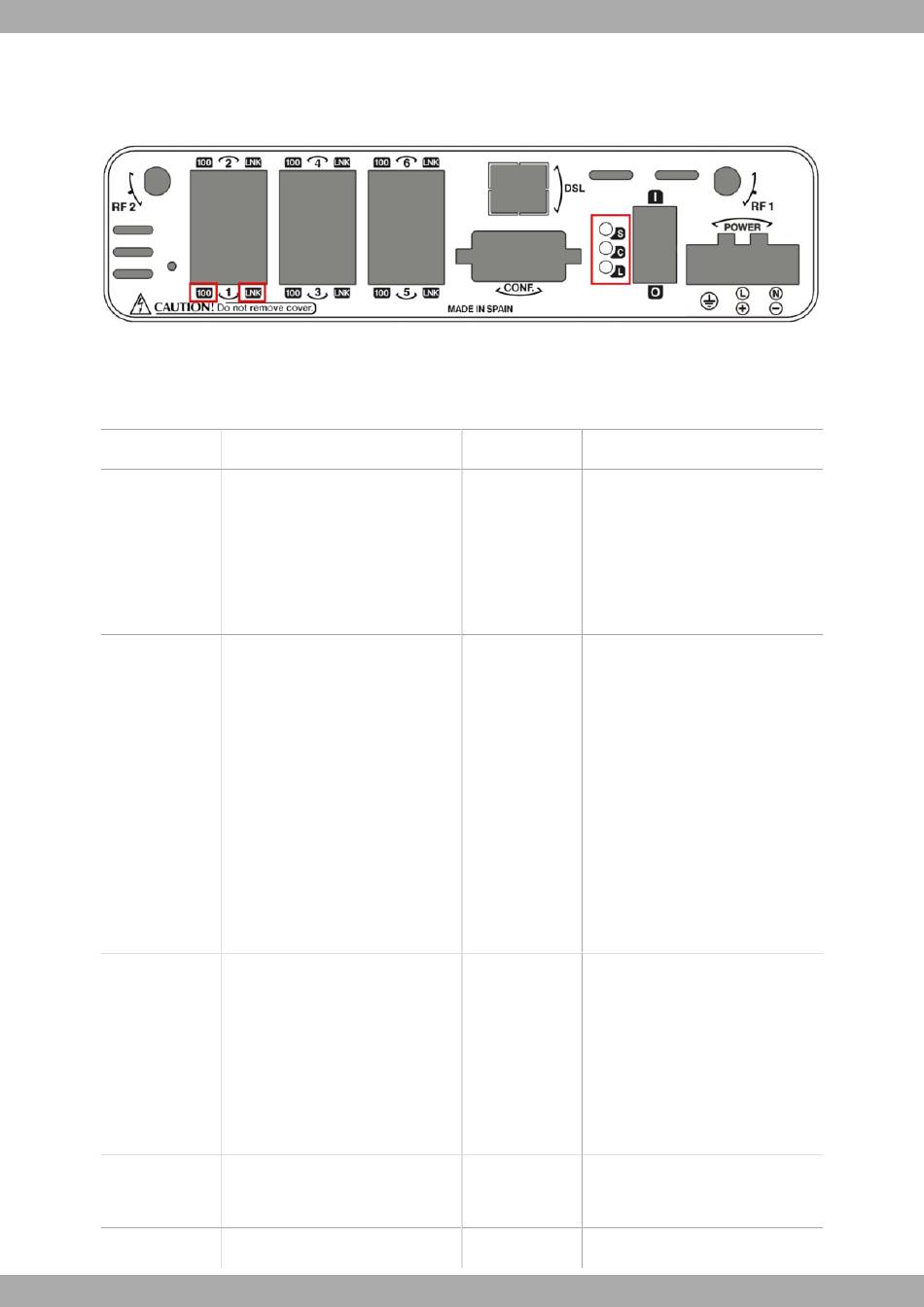

The LEDs are organized on the router front panel (see the following figure):
Front panel LEDs
Fig. 3:
While the device is in startup mode, LED L lights up in green. Once start up is complete, the LEDs indicate the fol-
lowing:
Front panel LEDs table
LED
S
C
L
100
LNK
Regesta-PRO ER B Router
Associated interface
Cellular interface corresponding to
the active SIM.
Cellular interface corresponding to
the active SIM.
Cellular interface corresponding to
the active SIM.
Associated to each Ethernet switch
connector (LAN1...LAN6).
Associated to each Ethernet switch
Status Description
Green SK1 operating SIM. This processes
traffic through the carrier for the SIM
installed in this tray.
Amber
SK2 operating SIM. This processes
traffic through the carrier for the SIM
installed in this tray.
Red Cellular interface is not available, not
installed or not registered.
Amber
The device has registered in the net-
work and is establishing the PPP pro-
tocol.
Green
The device is registered, PPP is es-
tablished and it can send IP traffic
through the PPP interface.
- Steady: data is not being trans-
ferred.
- Blinking: data is being transferred.
Green Coverage level above -90dBm.
Yellow Coverage level between -90dBm and
-100dBm.
Red
Coverage level below -100dBm.
Off
Cellular interface is not active.
Amber ON -> Connection at 100Mbps.
OFF -> Connection at 10Mbps.
Green ON -> Ethernet connection (link) es-
3 Components and Power Supply
