3 Components and Power Supply
Chapter 3 Components and Power Supply
The following chapter provides information on the Regesta-PRO ER B chassis and its components. This information
includes:
• Components.
• Assembly instructions.
• Power supply.
• RST button.
• Data connection.
• Inserting the SIM card.
3.1 Components
3.1.1 Front Panel

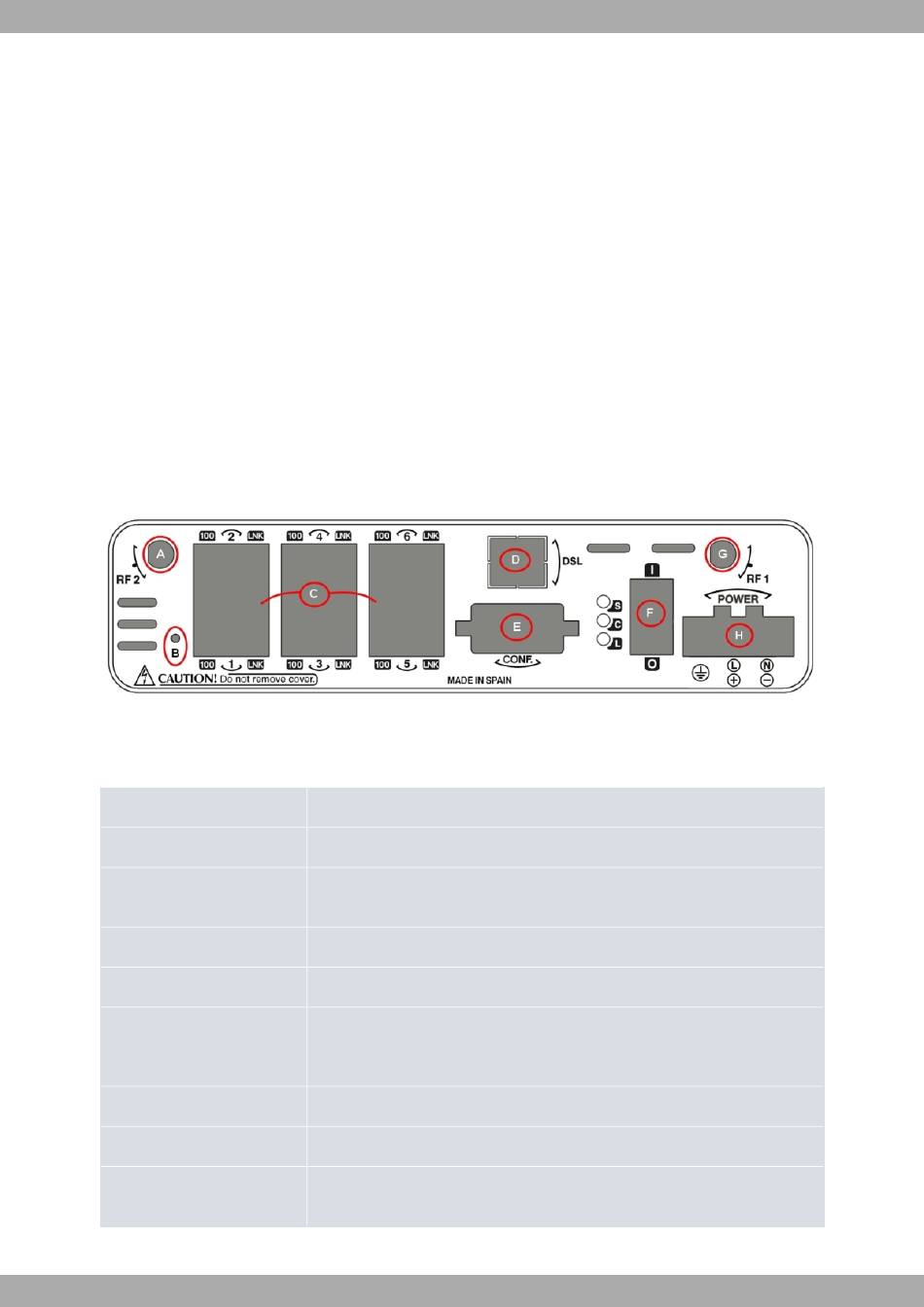

The following figure shows the front panel.
Front panel
Fig. 2:
Front panel elements are as follows:
Elements table for the front panel
Item
A
B
C
D
E
F
G
H
In addition to connectors, the front panel also contains a set of LEDs, which provide information on the state of the
4
Description
RF2. WWAN antenna connector.
RST. Reset button. For further information on how the reset button functions,
please see section
RST Button
6-port Fast Ethernet Switch.
DSL. Not available.
CONF. DB9 connector, providing access to the device local console for configura-
tion and monitoring purposes. (This connector can also be used as an RS-232
asynchronous DCE serial port).
I/O. ON/OFF power switch, position I for ON and position O to switch it OFF.
RF1. WWAN antenna connector.
POWER. Power connection. For more information on the power connection,
please see section
Connecting the Power Supply
on page 11 further on in this chapter.
on page 9.
