3.1.4 Upper Panel

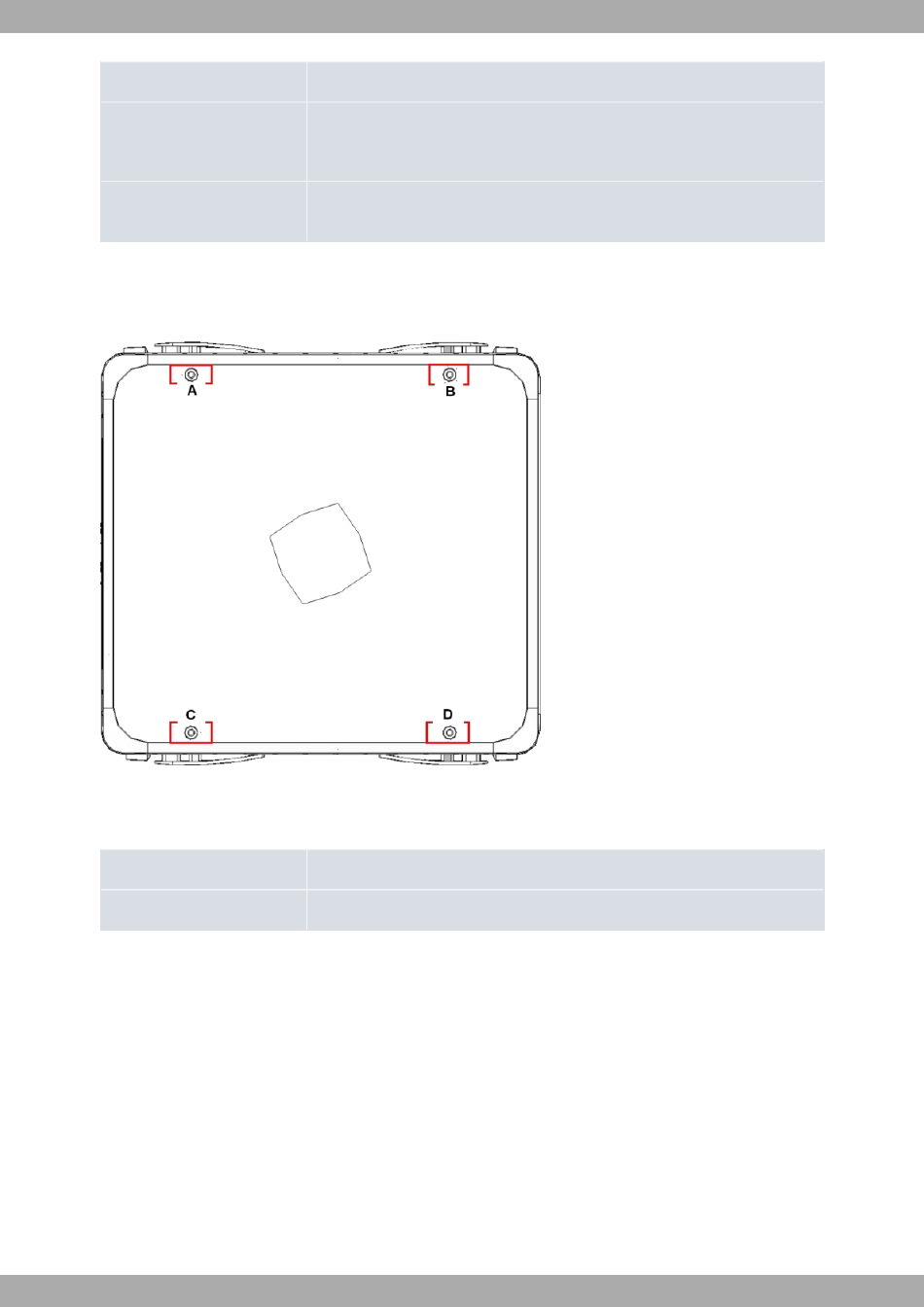

The following figure shows the aspect of the upper panel:
Upper panel
Fig. 6:
Upper casing elements are as follows:
Upper casing elements table
Items
A, B, C, D

3.2 Assembly

3.2.1 Installing a DIN rail mount accessory

The device packaging includes a DIN rail mount kit the device can be connected to (allowing for several positions).
The kit contains 2 screws to adjust the rail mount to the underside of the device. There are a set of holes on the un-
derside allowing you to place the DIN rail mount in two distinct positions:
Regesta-PRO ER B Router
Description
Slots for the accessories to attach the device to the DIN rail mount. For further in-
formation on this accessory, please see section
cessory
on page 7.
Platform the product information sticker is attached to. This sticker contains in-
formation on the device model, MAC, serial number, etc.
Description
Screws allowing you to disassemble the router upper casing.
3 Components and Power Supply
Installing a DIN rail mount ac-
7
