The eBOX630-528-FL is convenient for various hardware configurations, such as CPU,

DRAM, HDD (Hard Disk Drive), SSD (Solid State Drive), PCI Express Mini card modules and

optional MXM graphic module. Section 2 contains guidelines for hardware installation.

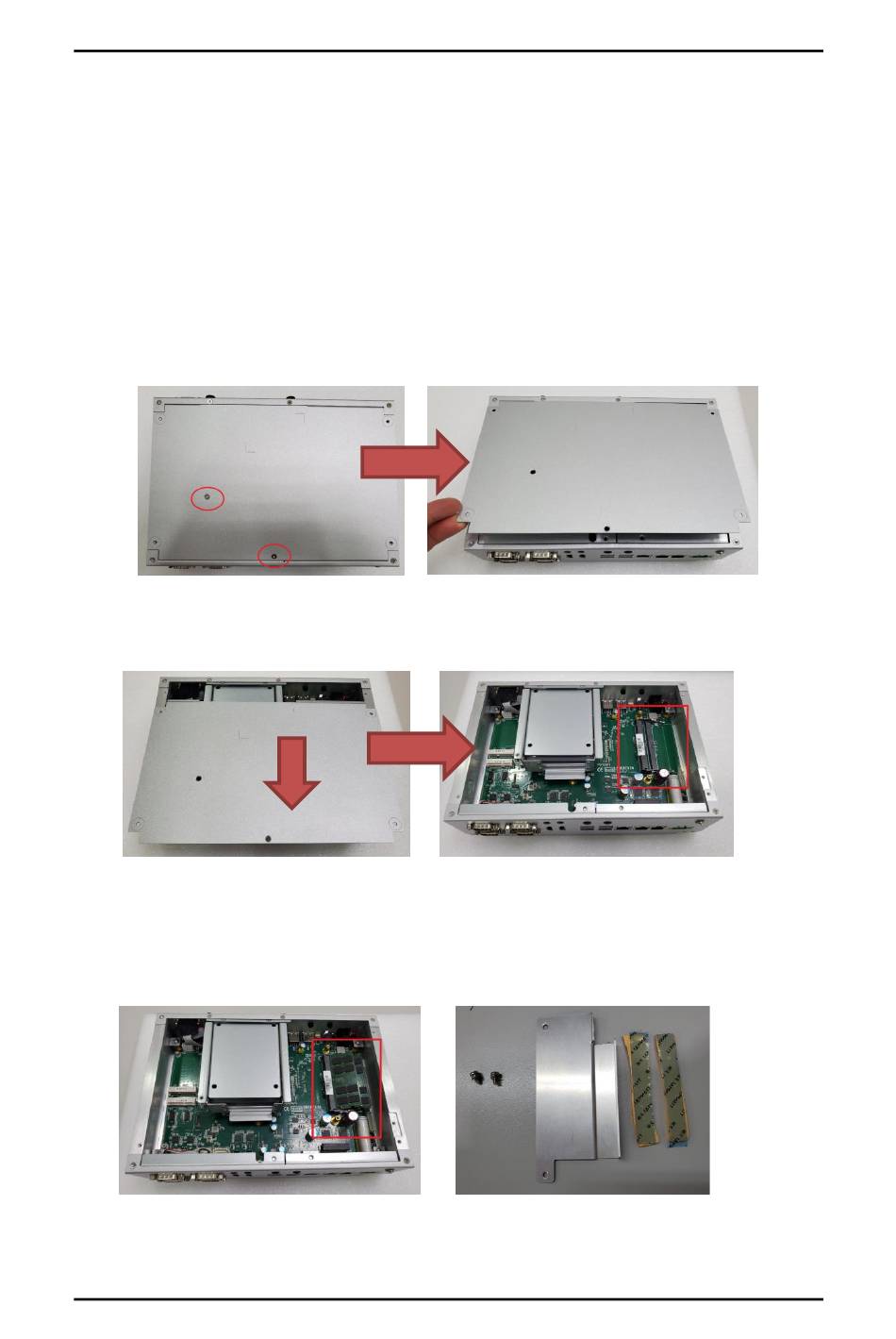

Step 1 Turn off the system and unplug the power cord.

Step 2 Turn the system unit upside down and loosen two screws on the

bottom cover of the chassis and pull up the bottom cover.

Step 3 Pull and open the bottom cover back, then located the dual DDR4 SO-

DIMM sockets on main board as red marked.

Step 4 Locate the memory module, insert a gold colored contact into the

socket and push the module down until it is locked in place by the two

end latches. And take out the DRAM thermal pad and bracket from

accessories pack.
