Simplex 4100ES Operator's Manual page 80

S ingle Channel Audio Operation
3 4 B
O verview
1 2 6 B
This section describes the single channel and single channel plus paging audio systems. The term
Single Channel Audio refers to the audio capability of the system.

A Single Channel Audio system has the ability to play pre-recorded messages or live audio
messages, but it cannot do both at one time. For example, suppose the building's audio
system is divided into eight groups, each of which represents a floor of the building. A single
channel audio system can play a pre-recorded message or live audio one floor at a time.

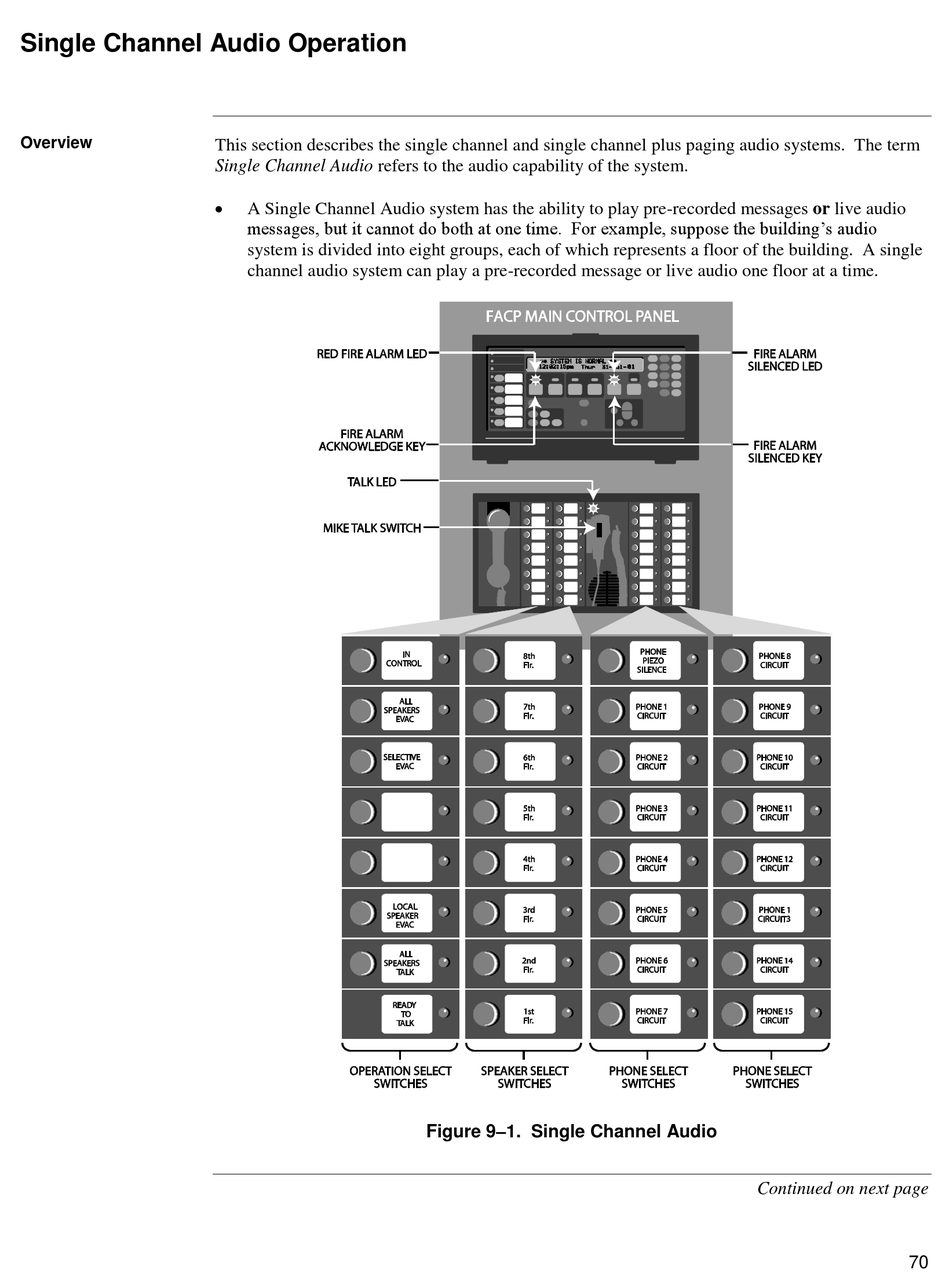

Figure 9–1. Single Channel Audio
Continued on next page
70
