S electing Points with the Entry Keypad
2 2 B
O verview
8 2 B
S electing Points
8 3 B
The Entry Keypad, shown below, allows you to quickly select a category of points. For example,
pressing the ZONE key on the upper left side of the keypad selects the monitor zone category.
After selecting a category, messages on the display prompt you for the specific point in the
category.
You can use the keypad to select either a local point or a network point. A local point is one that
is physically connected to the panel you are currently at, and a network point is one that is located
on a different panel but has been programmed so that it can be selected and controlled from
another panel.
Refer to the following table for information on using the keypad to select local points on this
panel.
Key
ZONE – allows you to select a
Monitor Zone point.
SIG – allows you to select a
Signal point.

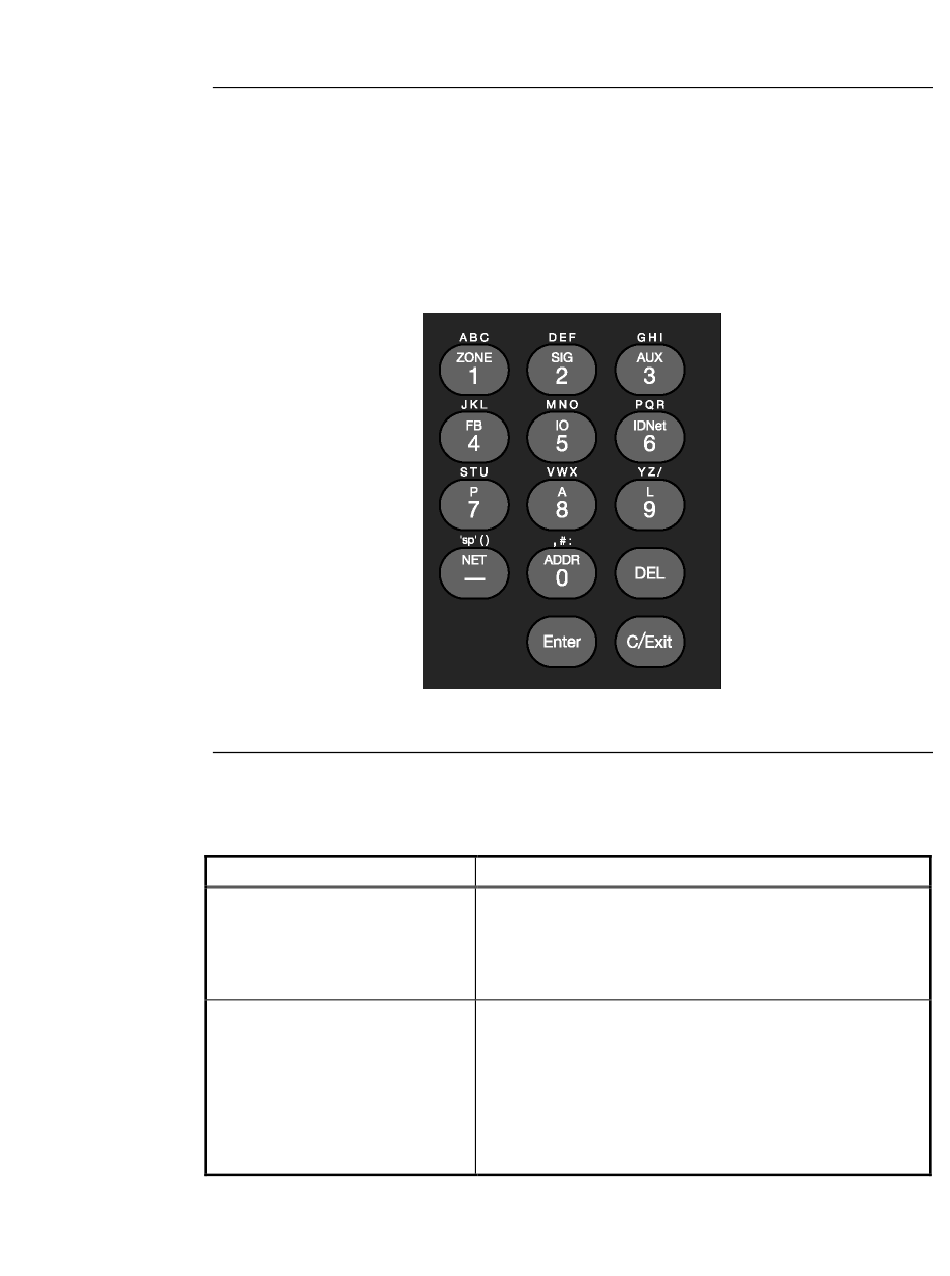

Figure 5–1. Entry Keypad
Table 5–1. Keypad Use
ZN, followed by ENTER, where ZN represents a zone
card and is a number from 1 to n. (n represents the
number of the last zone card in your system.) After
selecting a zone, use NEXT and PREV to scroll
through the points.
SIG, followed by ENTER, where SIG represents a
signal card and is number from 3 to n. (n represents
the number of the last signal card in your system.)
After selecting a signal card, use NEXT and PREV to
scroll through the signal points.
SIG, followed by ENTER, where SIG represents an
IDNAC symbolic channel then "-" and the NXNA point
number on that channel.
Data to Enter
