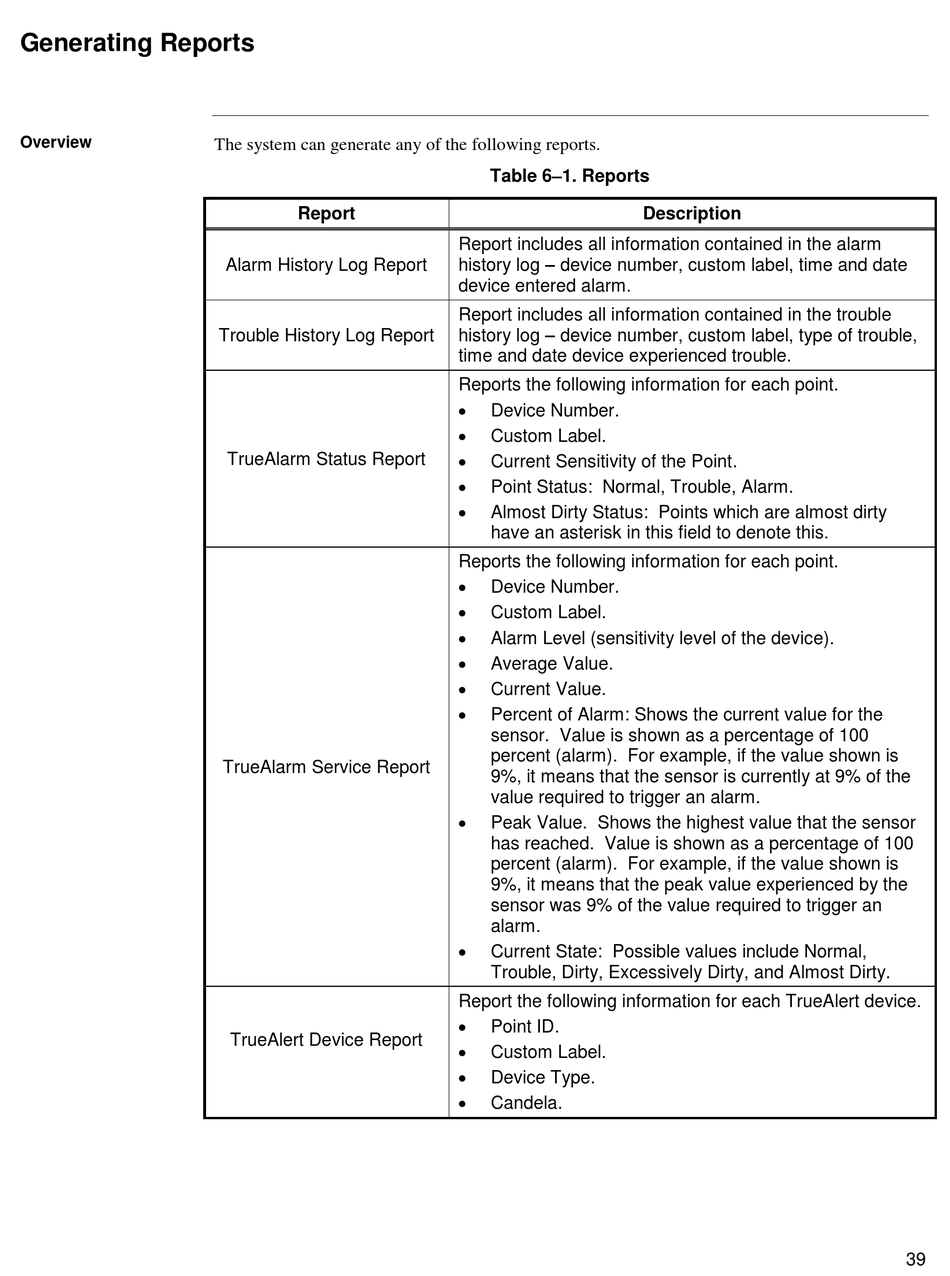

G enerating Reports
2 9 B
O verview
9 9 B
The system can generate any of the following reports.
Report
Alarm History Log Report
Trouble History Log Report
TrueAlarm Status Report
TrueAlarm Service Report
TrueAlert Device Report
Table 6–1. Reports
Report includes all information contained in the alarm
history log – device number, custom label, time and date
device entered alarm.
Report includes all information contained in the trouble
history log – device number, custom label, type of trouble,
time and date device experienced trouble.
Reports the following information for each point.

Device Number.

Custom Label.

Current Sensitivity of the Point.

Point Status: Normal, Trouble, Alarm.

Almost Dirty Status: Points which are almost dirty
have an asterisk in this field to denote this.
Reports the following information for each point.

Device Number.

Custom Label.

Alarm Level (sensitivity level of the device).

Average Value.

Current Value.

Percent of Alarm: Shows the current value for the
sensor. Value is shown as a percentage of 100
percent (alarm). For example, if the value shown is
9%, it means that the sensor is currently at 9% of the
value required to trigger an alarm.

Peak Value. Shows the highest value that the sensor
has reached. Value is shown as a percentage of 100
percent (alarm). For example, if the value shown is
9%, it means that the peak value experienced by the
sensor was 9% of the value required to trigger an
alarm.

Current State: Possible values include Normal,
Trouble, Dirty, Excessively Dirty, and Almost Dirty.
Report the following information for each TrueAlert device.

Point ID.

Custom Label.

Device Type.

Candela.
Description
