TrueNAC Voltage Drop Test,
T rueNAC Report
1 1 9 B
Samples
Continued

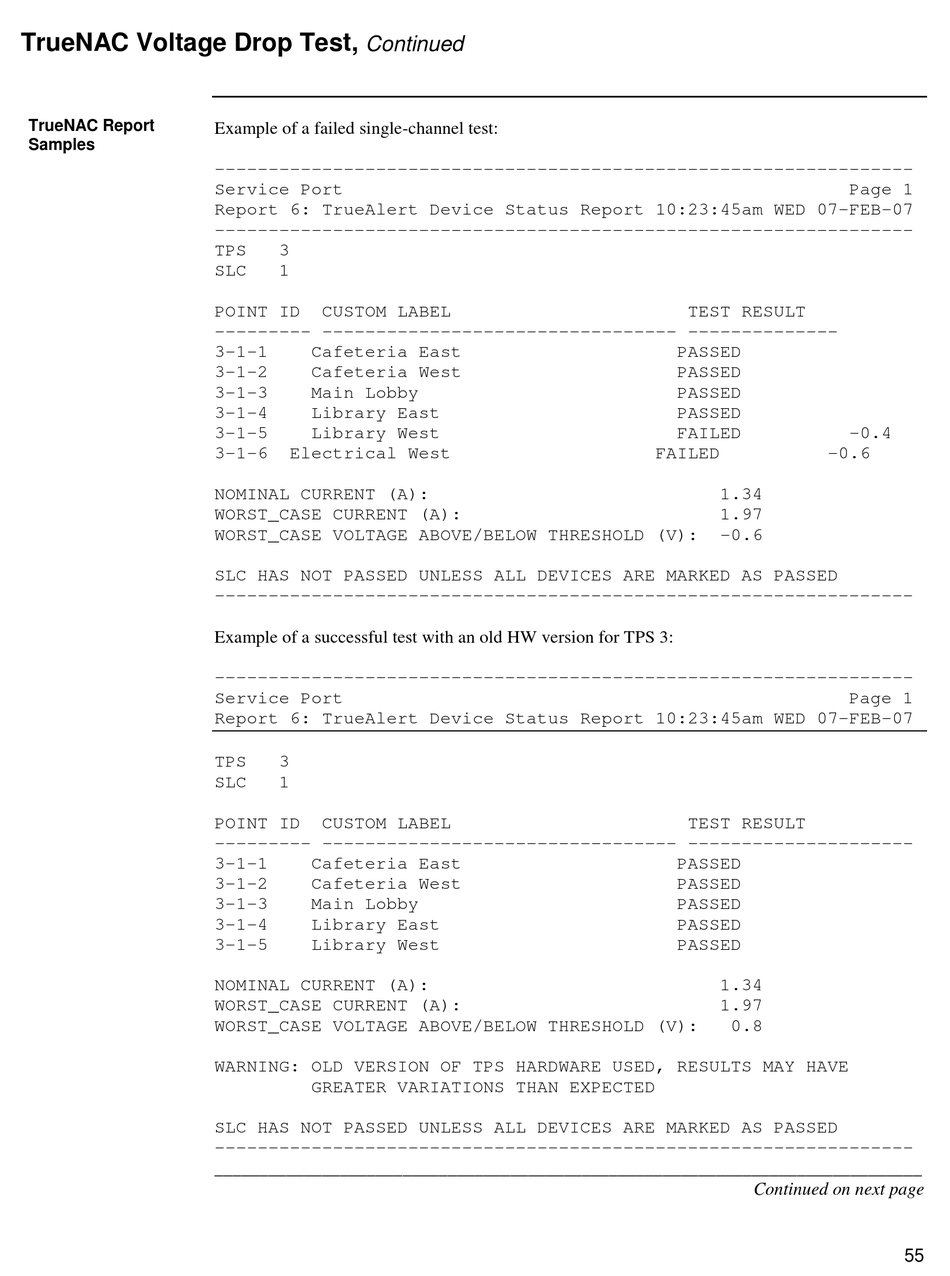

Example of a failed single-channel test:
-----------------------------------------------------------------
Service Port
Report 6: TrueAlert Device Status Report 10:23:45am WED 07-FEB-07
-----------------------------------------------------------------
TPS 3
SLC 1
POINT ID CUSTOM LABEL
--------- --------------------------------- --------------
3-1-1 Cafeteria East
3-1-2 Cafeteria West
3-1-3 Main Lobby
3-1-4 Library East
3-1-5 Library West
3-1-6 Electrical West
NOMINAL CURRENT (A):
WORST_CASE CURRENT (A):
WORST_CASE VOLTAGE ABOVE/BELOW THRESHOLD (V):
SLC HAS NOT PASSED UNLESS ALL DEVICES ARE MARKED AS PASSED
-----------------------------------------------------------------
Example of a successful test with an old HW version for TPS 3:
-----------------------------------------------------------------
Service Port
Report 6: TrueAlert Device Status Report 10:23:45am WED 07-FEB-07
TPS 3
SLC 1
POINT ID CUSTOM LABEL
--------- --------------------------------- ---------------------
3-1-1 Cafeteria East
3-1-2 Cafeteria West
3-1-3 Main Lobby
3-1-4 Library East
3-1-5 Library West
NOMINAL CURRENT (A):
WORST_CASE CURRENT (A):
WORST_CASE VOLTAGE ABOVE/BELOW THRESHOLD (V):
WARNING: OLD VERSION OF TPS HARDWARE USED, RESULTS MAY HAVE
GREATER VARIATIONS THAN EXPECTED
SLC HAS NOT PASSED UNLESS ALL DEVICES ARE MARKED AS PASSED
-----------------------------------------------------------------
